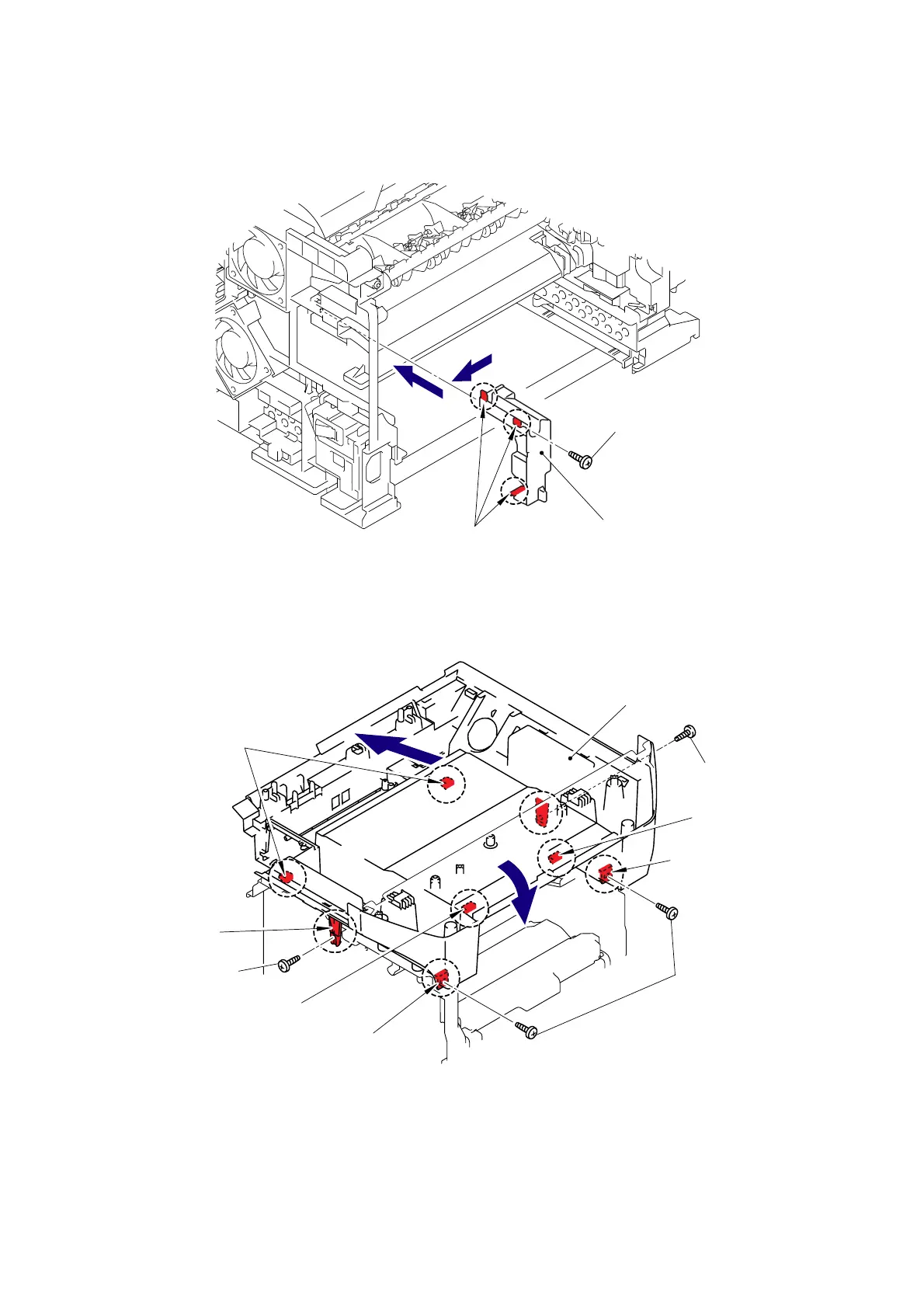

(11) Secure the FU harness cover 1 with the bind B M4x16 Taptite screw.
Fig. 6-40
(12) Secure the Joint cover with the four bind B M4x12 Taptite screws.
Fig. 6-41
Taptite, bind B M4x16
FU harness cover 1
Hooks
11a
11b
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, bind B M4x12
Hook
Hook
Hook
Hook
Hooks
Joint cover
Hook
12b
12a
