(23) Connect the five connectors of the Panel harness into the Main PCB.

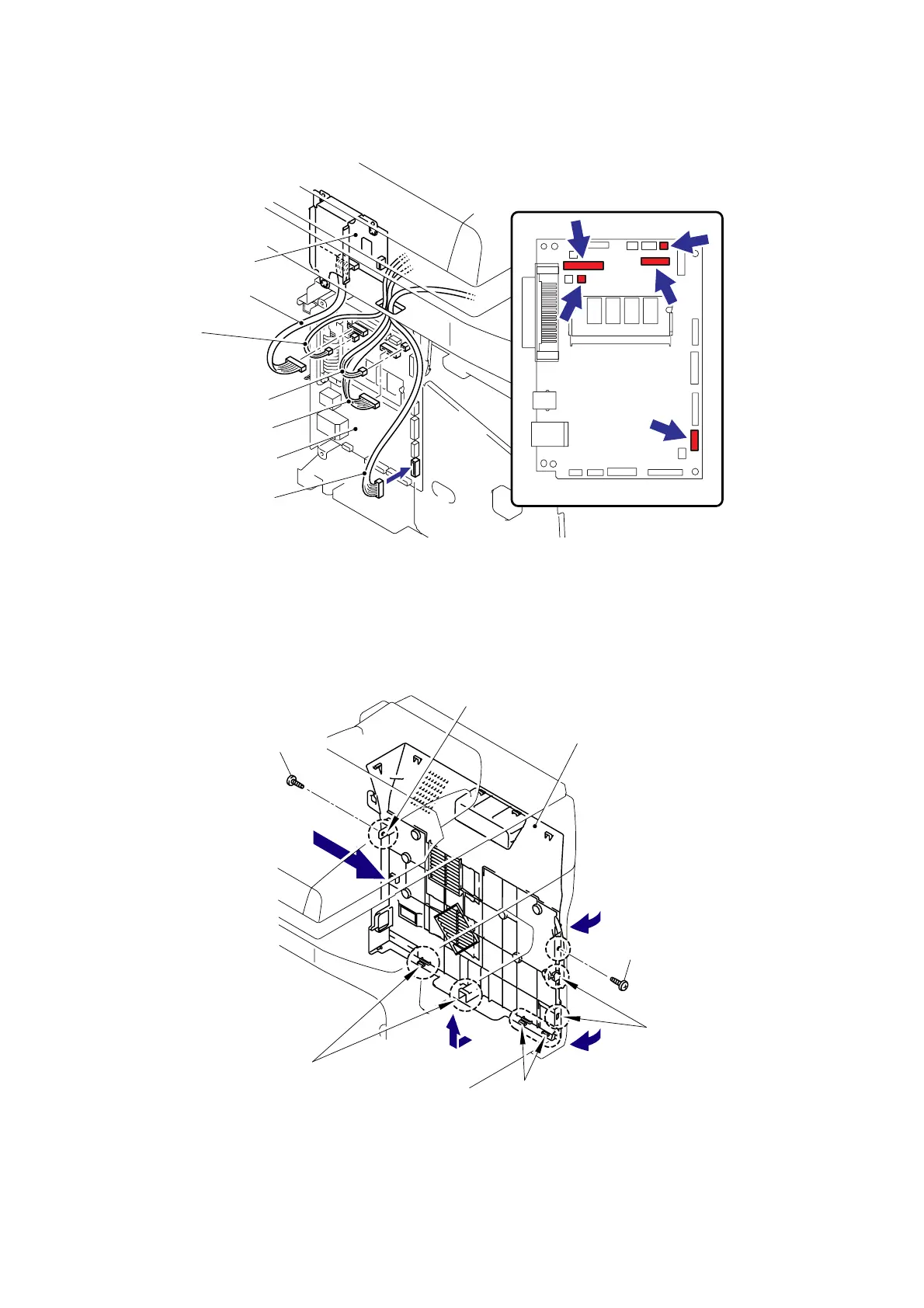

Fig. 6-48
(24) Catch the Hooks in the order of the arrows and secure the Side cover R with the two bind B
M4x12 Taptite screws.
Fig. 6-49
Driver PCB
Battery harness
Panel PCB harness
Main PCB
N
CU harness
Speaker harness
Driver harness
Taptite, bind B M4x12
Taptite, bind B M4x12
Side cover R
Hooks
Hooks
Hooks
Hook
24d
24c
24b
24a
Main PCB
