6-34 Confidential

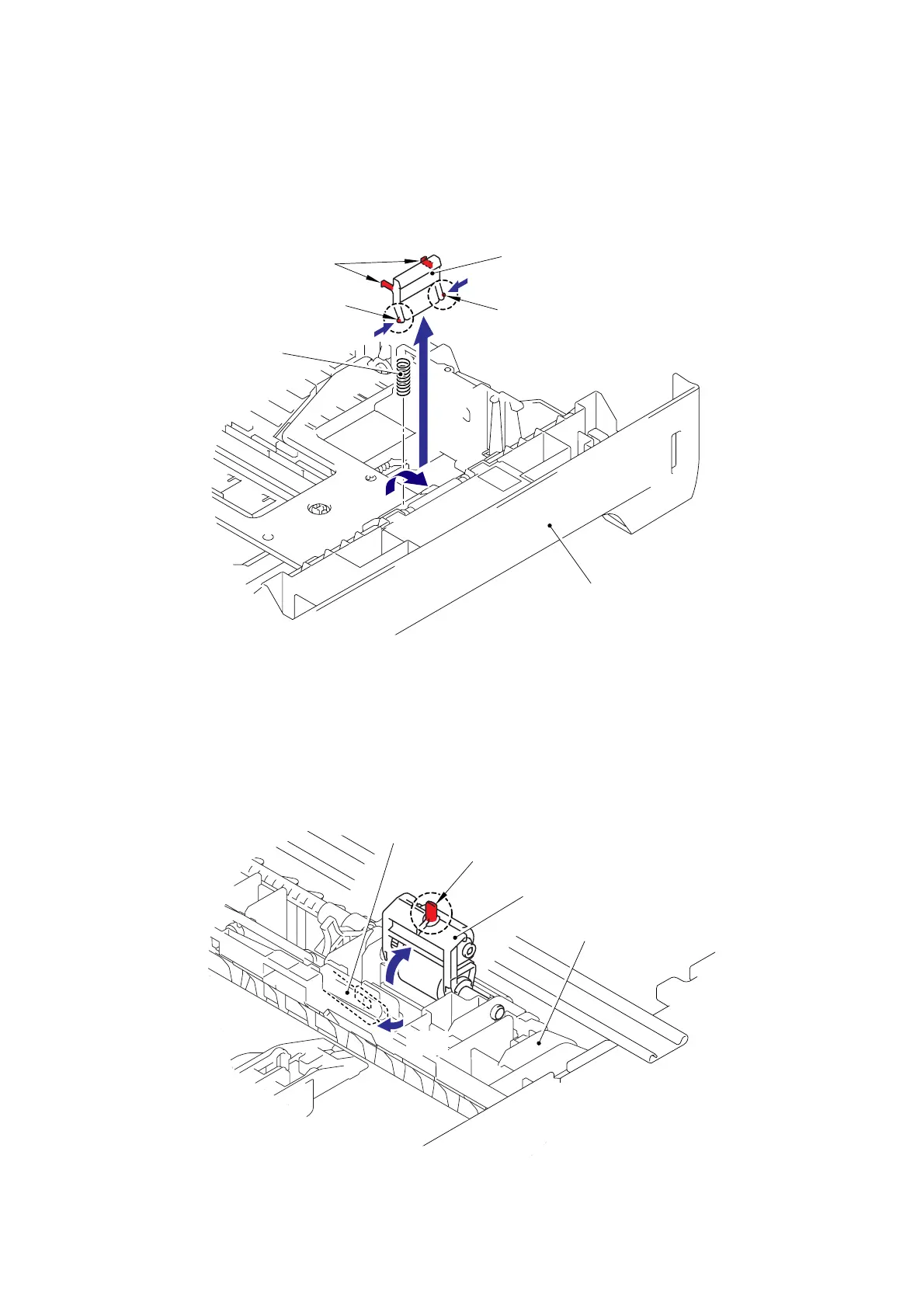

(9) Pull up the back side of the Separation pad ASSY.
(10) Push the Hooks provided on both sides of the Separation pad ASSY inwards.
(11) Pull up the Separation pad ASSY.
(12) Remove the Separation pad spring.
Fig. 6-62
(13) Turn the Machine upside down.
NOTE:
- Pull out and put into the paper tray so that the Roller holder ASSY is lowered.
- If the Roller holder ASSY is remained up, it cannot be removed.
(14) Push the Lift arm to the direction of the arrow 14a and pull out the pin of the Roller holder
ASSY. Then, turn the Roller holder ASSY to the direction of the arrow 14b.
Fig. 6-63
Paper tray
Separation pad ASSY
Separation pad spring
Hook
Hook
Hooks
9
10
10
11
Paper feed frame
Roller holder ASSY
Pin
Lift arm
14a
14b
<Front side>
