(15) Slide the Roller holder ASSY to the direction of the arrow 15a. Then, lift up the gear side of
the Roller holder ASSY to the direction of the arrow 15b and pull it out to the direction of
the arrow 15c to remove.

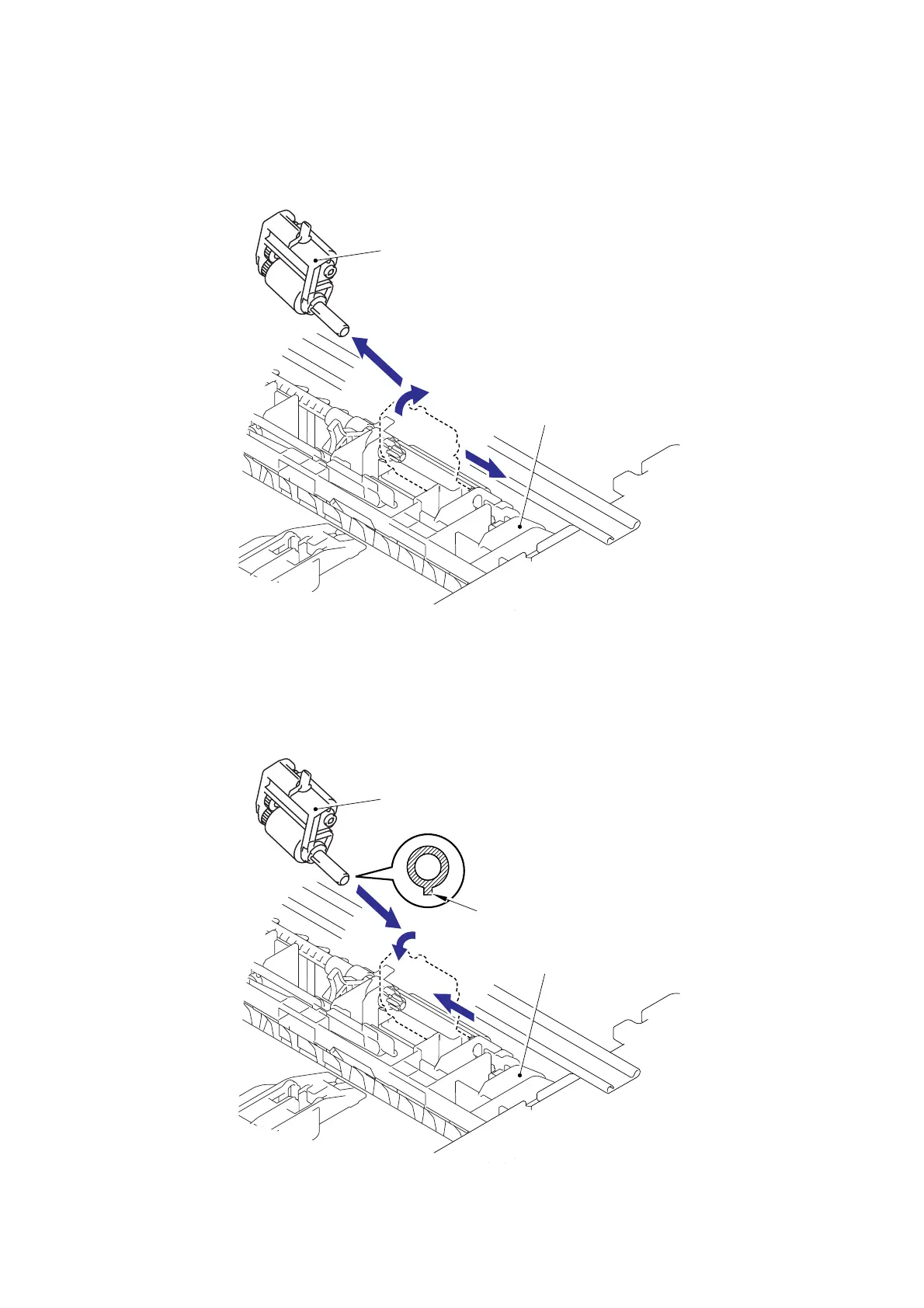

Fig. 6-64
<Installing Procedure>
(1) Install the Roller holder ASSY.
NOTE: When assembling the roller holder ASSY, align the section “A” on the shaft of
the roller holder ASSY with the hole on the paper feed frame.
Fig. 6-65
Roller holder ASSY
Machine
15c
15b
15a
Roller holder ASSY
Machine
1a
1b
1c
“A”
