Brother DCP-8065DN Service Manual

Confidential
3-4

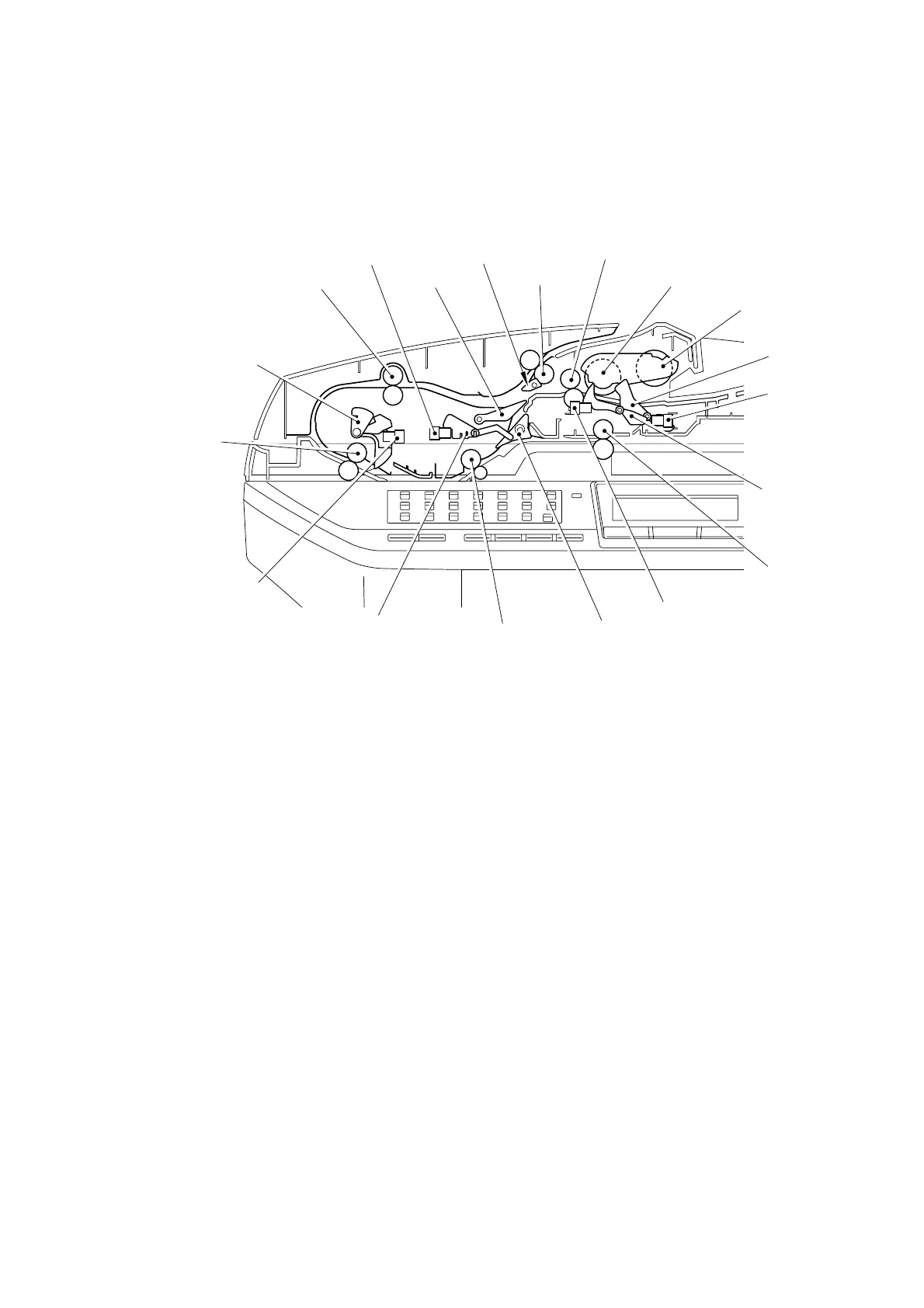

The automatic document feeder (ADF) consists of the pick-up roller, separation roller, paper feed
rollers 1/2/3/4, eject roller, ADF motor, switch back sensor, document rear sensor and document
front sensors 1/2.
For further details on the sensors, see Section 3.2.6.
Fig. 3-4
The duplex scanning mechanism allows you to use the following two types of scanning, “ADF
scanning” and “document glass scanning”. These two scanning methods are switched depending
on whether the document front sensor 1 detects the document or not when starting scanning.
Pic
k
-up rolle
r
Separation rolle
r
Paper feed rolle
r
1
SB rolle
r
ASSY
Flap C
Flap B
Switch back senso
r
Paper feed rolle
r
2
Document rea
r
sensor actuator
Document fron
t
sensor actuator 1
Document fron
t
sensor 1
Document fro
n
t
sensor actuator 2
Ejec
t
rolle
r
Document front sensor 2
Flap
A
Paper feed rolle
r
4
Switch back
sensor actuator
Document rea
r
senso
r
Paper feed rolle
r
3

Brother DCP-8065DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Scan to	e-mail, file, image, OCR
Input color depth	48 bit
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	28 cpm
Total input capacity	250 sheets
Total output capacity	150 sheets
Auto document feeder (ADF) input capacity	50 sheets
Internal memory	32 MB
Maximum internal memory	544 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	55 dB
Display	LCD
Market positioning	Business
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Maximum ISO A-series paper size	A4
Font styles	66 Scaleable fonts, Letter, Gothic 16.66, OCR-A, OCR-B, 11 Barcodes
Dimensions (WxDxH)	531 x 450 x 475 mm
Networking features	10/100 Base-TX
All-in-one functions	Copy, Scan
Color all-in-one functions	scan, n
Compatible operating systems	Mac OS X 10.2.4 or greater Windows XP
Standard interfaces	USB 2.0
Sustainability certificates	ENERGY STAR
Power consumption (standby)	85 W
Power consumption (PowerSave)	15 W
Power consumption (average operating)	660 W
