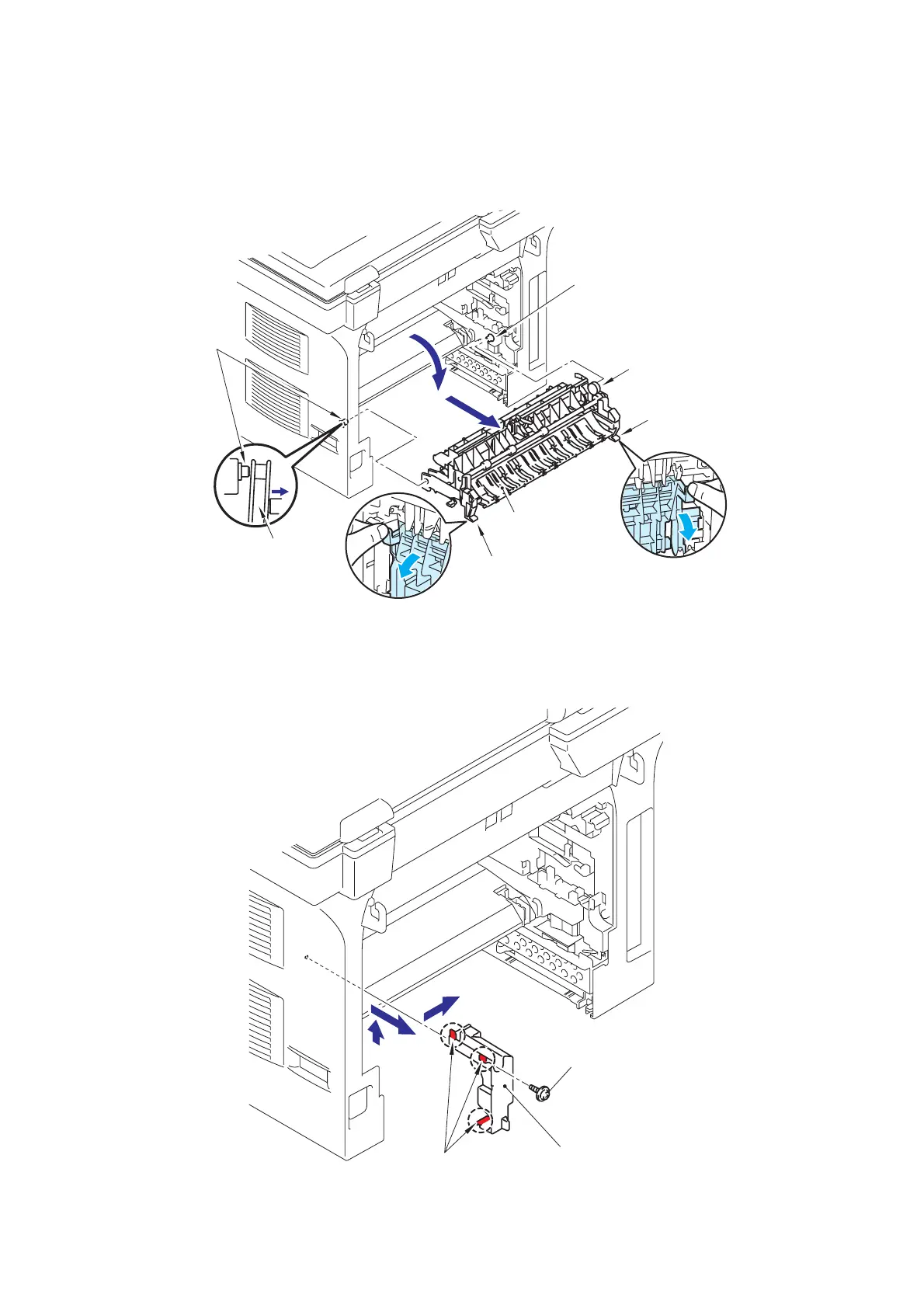

(5) Hold the Knobs on the Rear chute ASSY and pull down this to your side.
(6) Remove the Arms of the Rear chute ASSY from the Pins.
(7) Remove the Rear chute ASSY.
Fig. 4-3
(8) Remove the pan B M4x20 Taptite screw. Release the Hooks in the order of 8a, 8b and
8c. Remove the FU harness cover 1.
Fig. 4-4
Pin
Pin
Knob
Arm
Arm
Knob
Rear chute ASSY
5
6
7
Hooks
FU harness cover 1
Taptite pan B M4x20
8b
8a
8c
