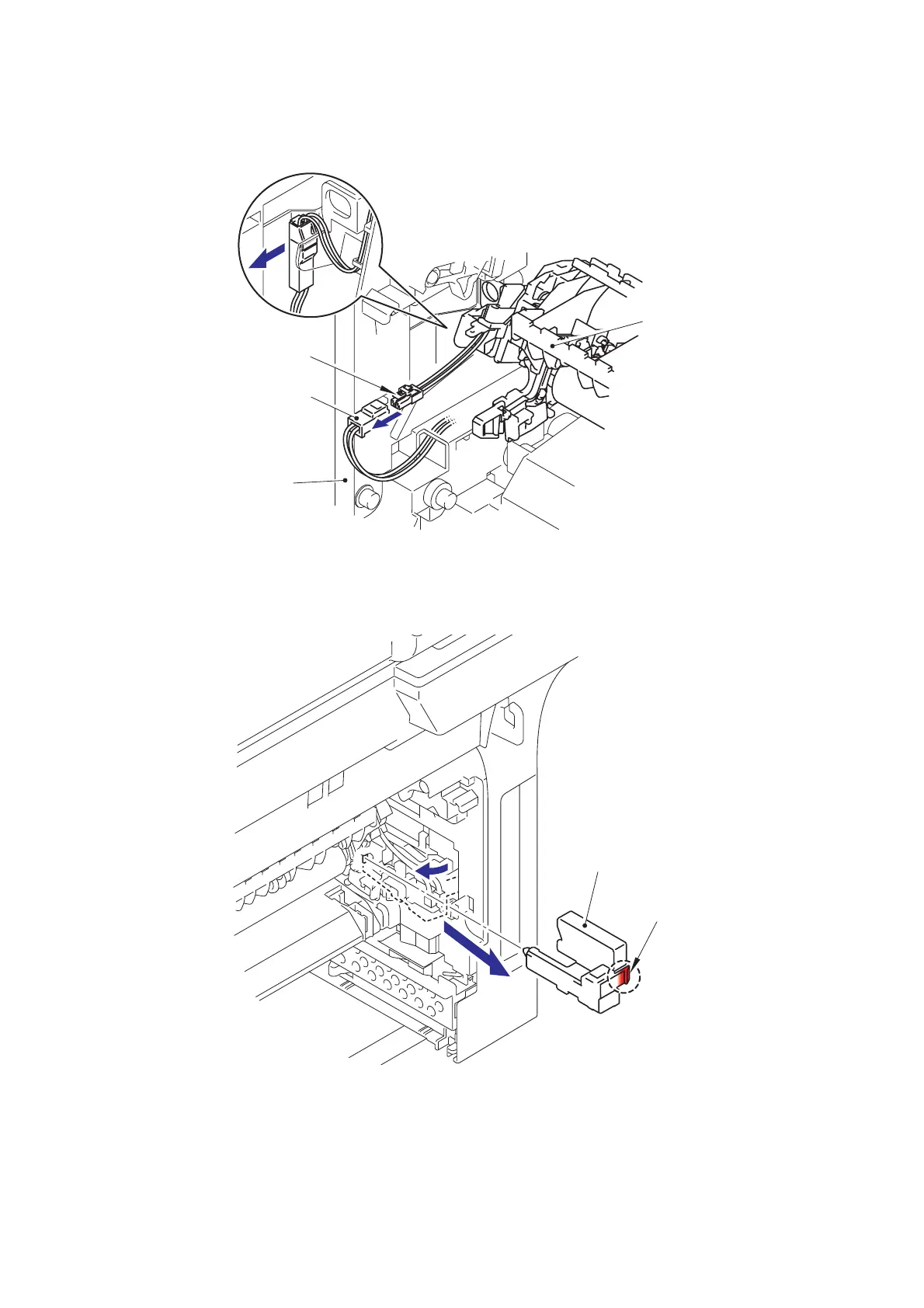

(9) Disconnect the connector of the Heater terminal while pressing the Hook of the
connector of the Fuser unit.
Fig. 4-5
(10) Pull the FU harness cover 2 to the direction of 10a while pressing the Hook and pull out
the FU harness cover 2 from the back of the machine.
Fig. 4-6
Hook
Frame R
Heater terminal
Fuser unit
Hook
FU harness cover 2
3a
3b
10a
10b
