4-7
Confidential

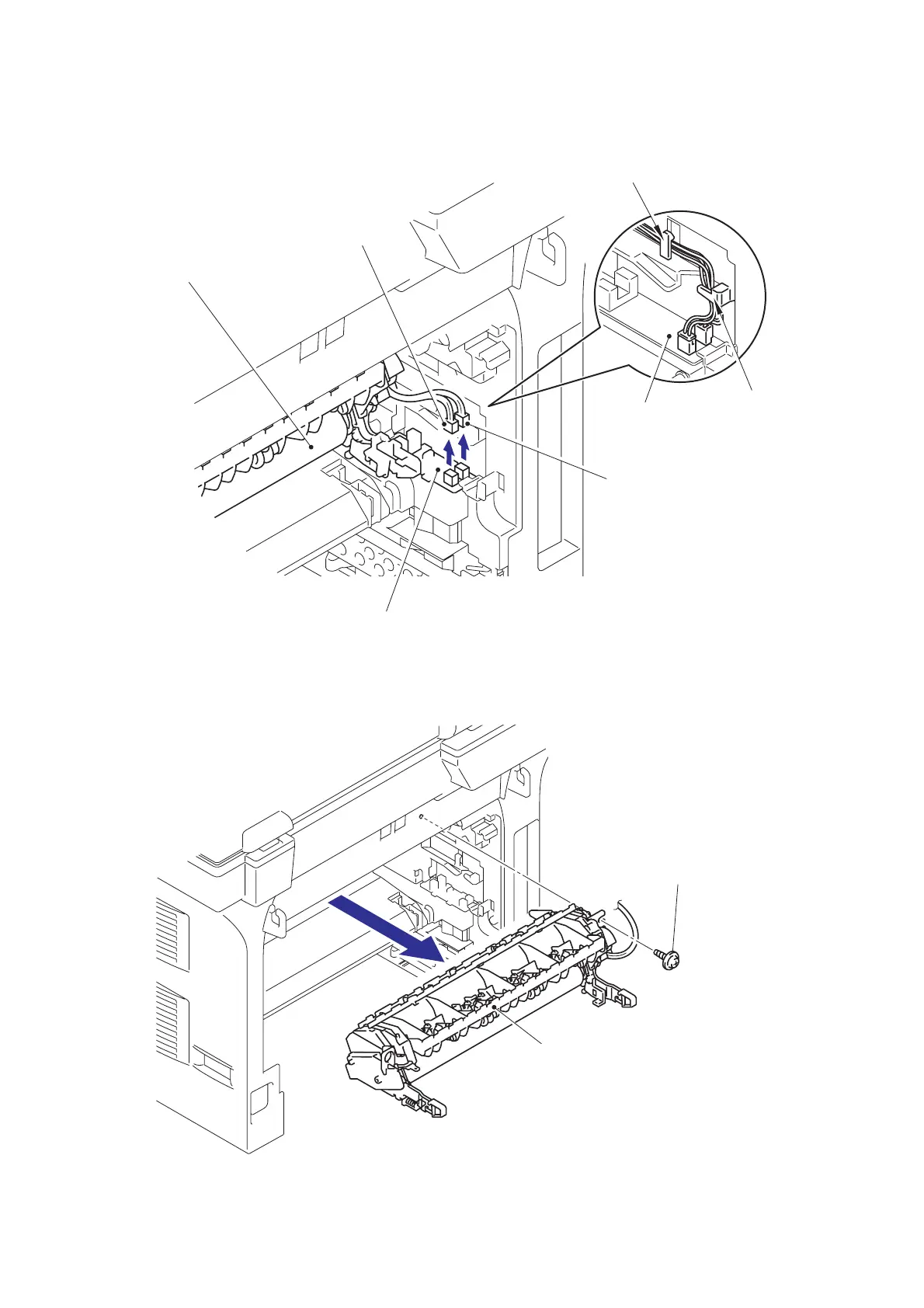

(11) Disconnect the connectors of the Thermistor ASSY M and Thermistor ASSY S from the
Relay rear PCB ASSY, and remove the harnesses of these thermistors.
Fig. 4-7
(12) Remove the pan B M4x20 Taptite screw to remove the Fuser unit.
Fig. 4-8
Thermistor ASSY S
Thermistor ASSY M
Fuser unit
Relay rear PCB ASSY
Relay rear PCB ASSY
Hook
Hook
Taptite pan B M4x20
Fuser unit
