(4) Remove the two bind B M4x12 Taptite screws, and then remove the Plate.

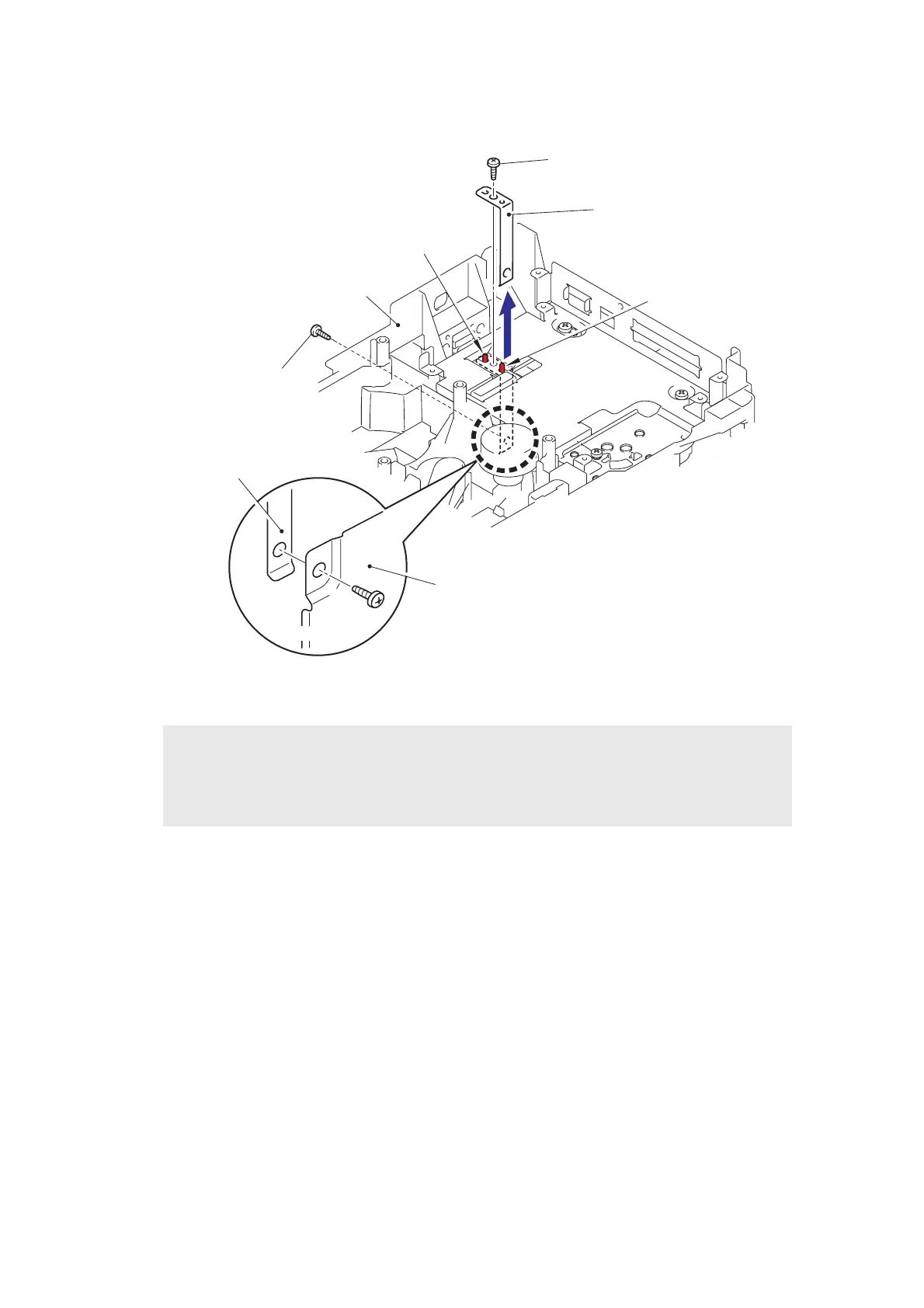

Fig. 5-218
Assembling Note:
• When assembling the Plate, ensure to set the Plate under the base plate LV.
• When assembling the Plate, secure the screw at the Frame L side first, then the screw
at the base plate LV side.
Taptite, bind B M4x12
Taptite, bind B M4x12
Frame L
Plate
Plate
Base plate LV
Pin
Pin
<Bottom side>
