(5) Remove the three bind B M4x12 Taptite screws and cup S M3x6 Taptite screw, and then
remove the Main shield plate ASSY.

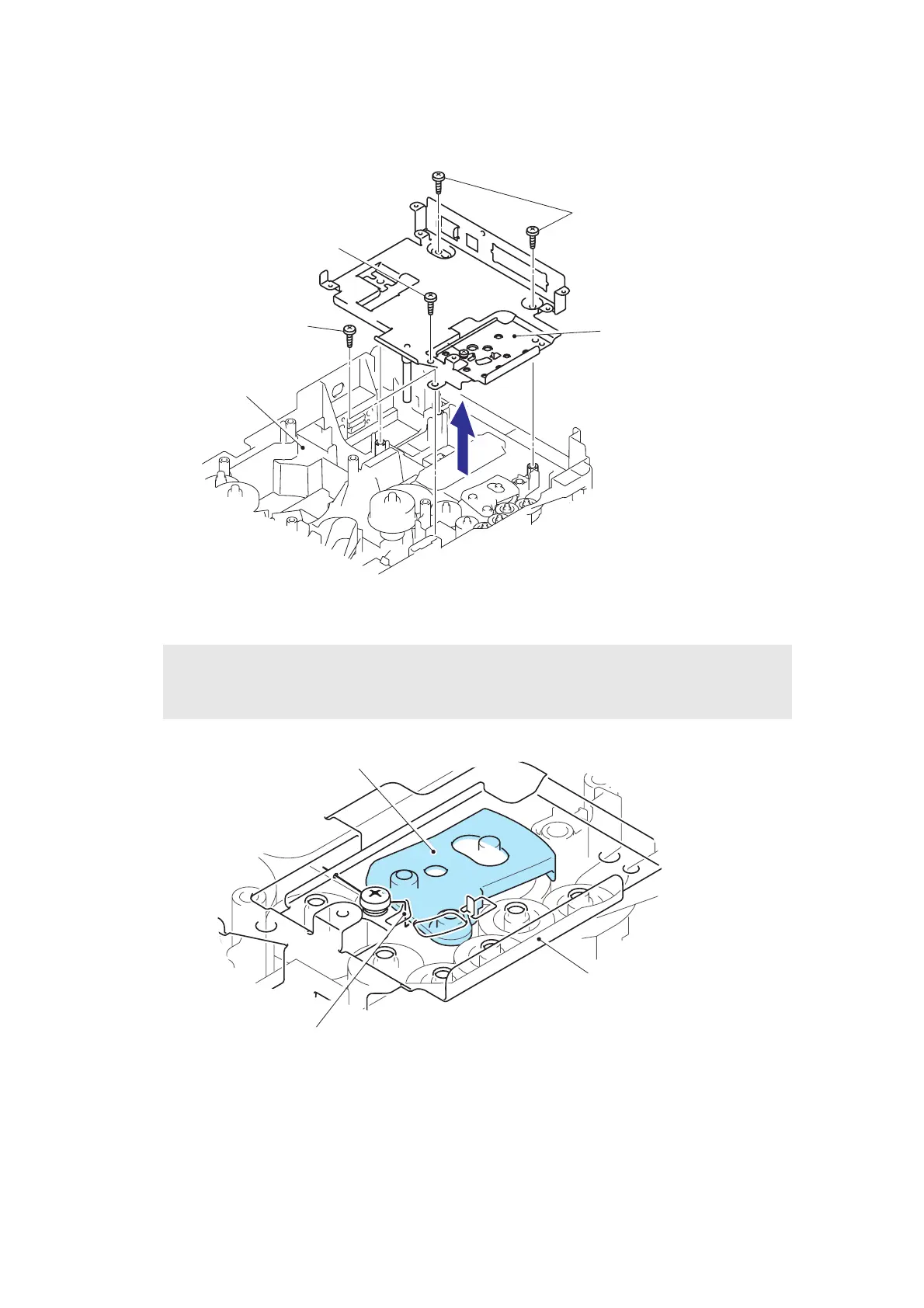

Fig. 5-219
Fig. 5-220
Assembling Note:
• Hang the Tip of the Switch arm spring of the Main shield plate on the Eject gear 28
sector.
Taptite, bind B M4x12
Main shield plate ASSY
Taptite, bind B M4x12
Taptite, cup S M3x6
Frame L
Main Shield Plate ASSY
Eject gear 28 sector
Switch arm spring
