Brother MFC-9560CDW Service Manual

3-64
Confidential
9.15 ADF Unit

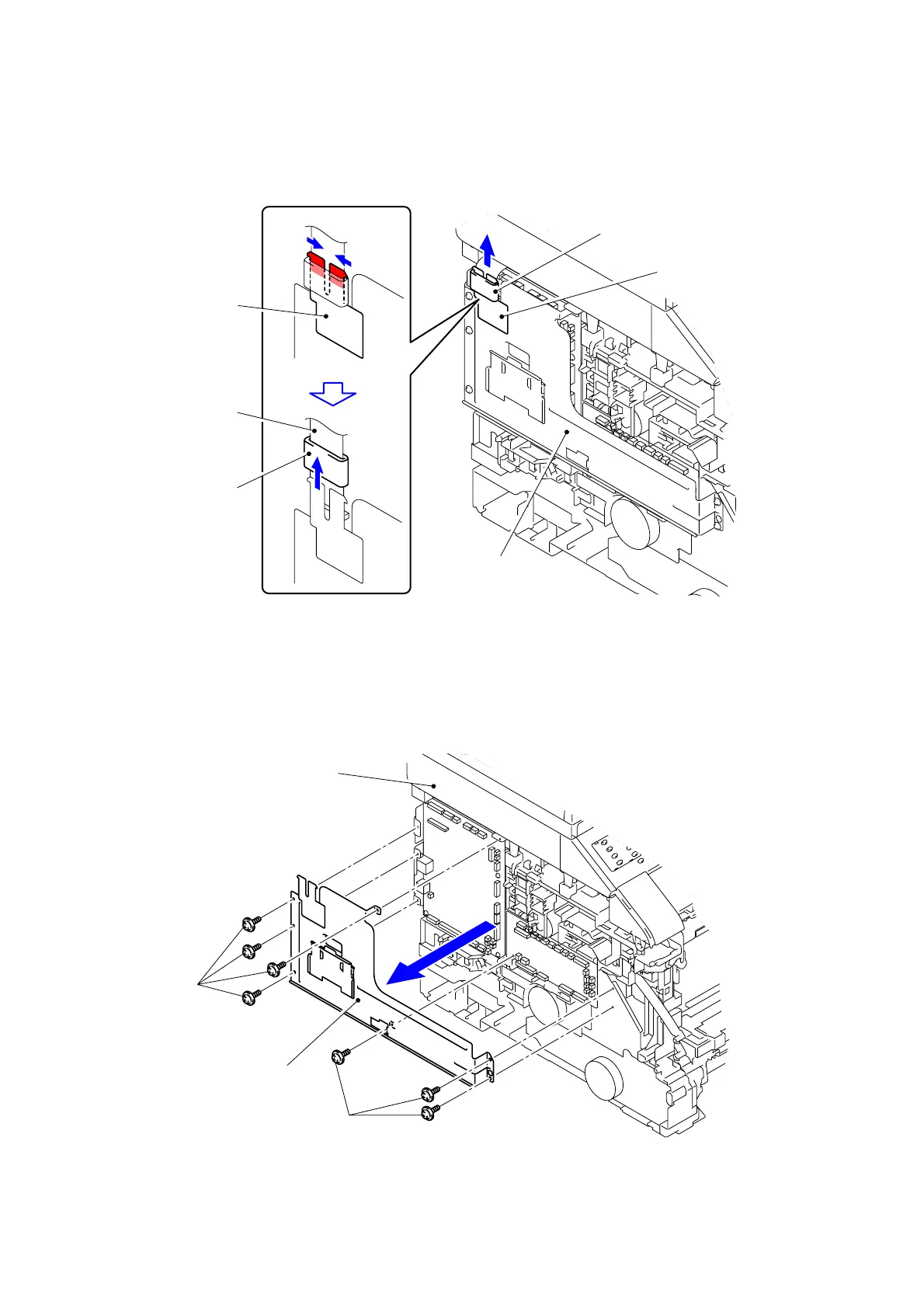

(1) Remove the Ferrite core 1 from the FFC film. (A4 model only)
Fig. 3-60
(2) Remove the seven Taptite cup S M3x6 SR screws to remove the Main shield cover plate
ASSY from the Main body.
Fig. 3-61
FFC film
Ferrite core 1
Main shield cover
plate ASSY
FFC film
Ferrite core 1
Document scanner
unit flat cable
Taptite cup S M3x6 SR
Main body
Main shield cover plate ASSY
Taptite cup S
M3x6 SR

Brother MFC-9560CDW Specifications

General

Type	all in one
Color	black
Touch Screen	no
Display Size	0 inches
Tray Capacity	300
Automatic Document Feeder Capacity	25 sheets
Paper Size	letter, legal, executive, folio, a4, a5, b6
Paper Handling	up to 300 sheets
Printing Method	color
Color Print Speed	25 pages per minute
Mono Print Speed	25 pages per minute
Print Resolution Mono	up to 2400 x 600
Print Resolution Color	up to 2400 x 600
Two-Sided Printing	no
Maximum Number of Pages Per Month	up to 40, 000
Reduction and Enlargement	yes
Photo Printing	no
Scanner Type	flatbed
Scan Resolution	up to 2400 x 1200
Max Copies	99
Copier Resolution Mono	up to 2400 x 600
Copier Resolution Color	up to 2400 x 600
Cartridges	n/a
Number Of Cartridges	4
Internal Memory	yes
Memory Card	no
Network	wired, wireless
Connectivity	usb 2.0
OS Compatibility	none
Mobile Devices Connection	no

Weight and Dimensions

Height	16.1 inches
Width	19.8 inches
Net Weight	58.4 pounds
