Brother MFC-9560CDW Service Manual

3-77
Confidential
9.17 Hinge R/Hinge R Support/Hinge Arm R

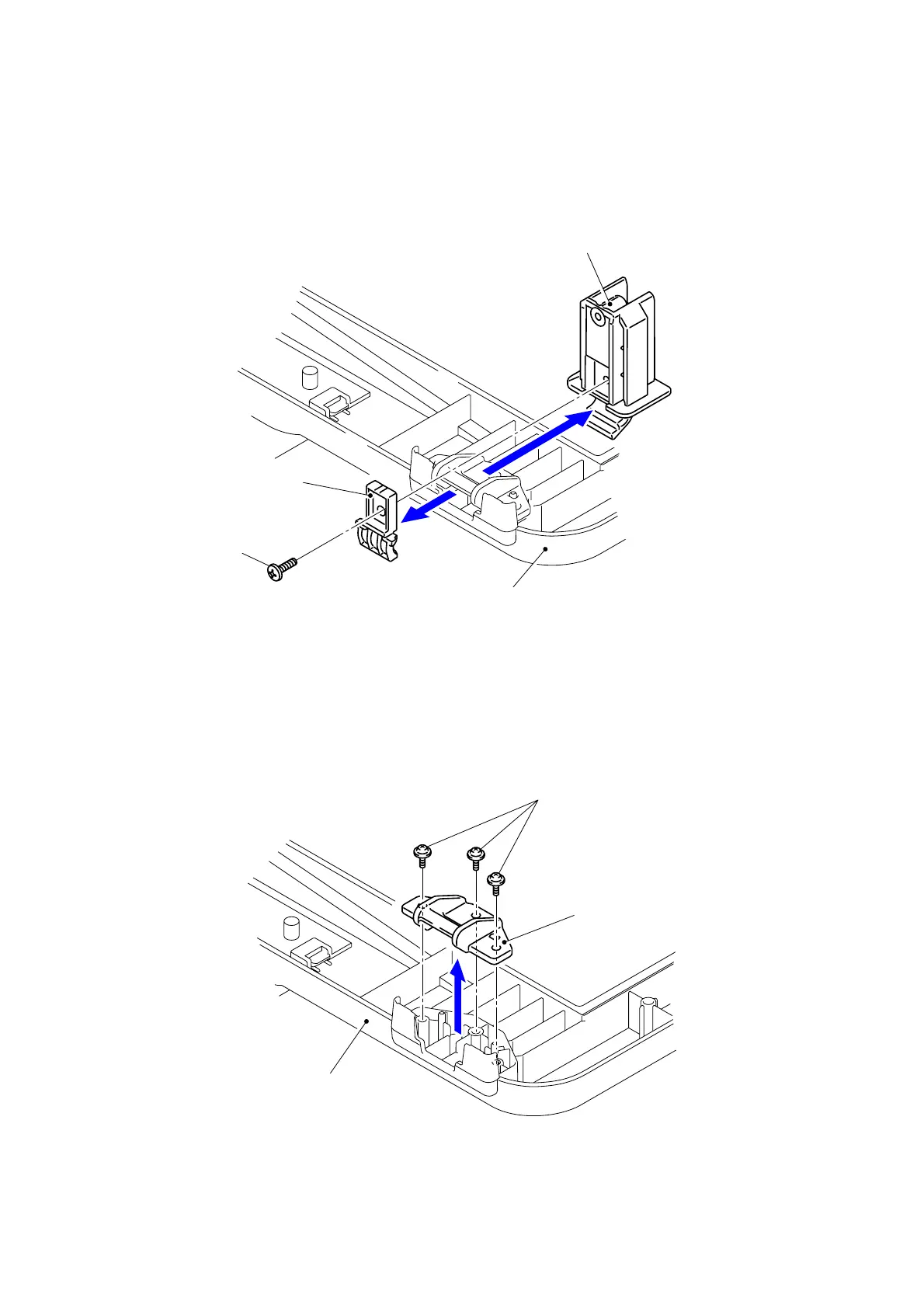

(1) Remove the Taptite cup B M3x10 screw to remove the Hinge R and Hinge R support from
the ADF unit.
Fig. 3-85
(2) Remove the three Taptite cup B M3x10 screws to remove the Hinge arm R from the ADF
unit.
Fig. 3-86
Taptite cup B M3x10
Hinge R
Hinge R support
ADF unit
ADF unit
Taptite cup B M3x10
Hinge arm R
