Brother MFC-9560CDW Service Manual

3-136
Confidential
(7) Remove the NCU harness ASSY from the NCU PCB ASSY.

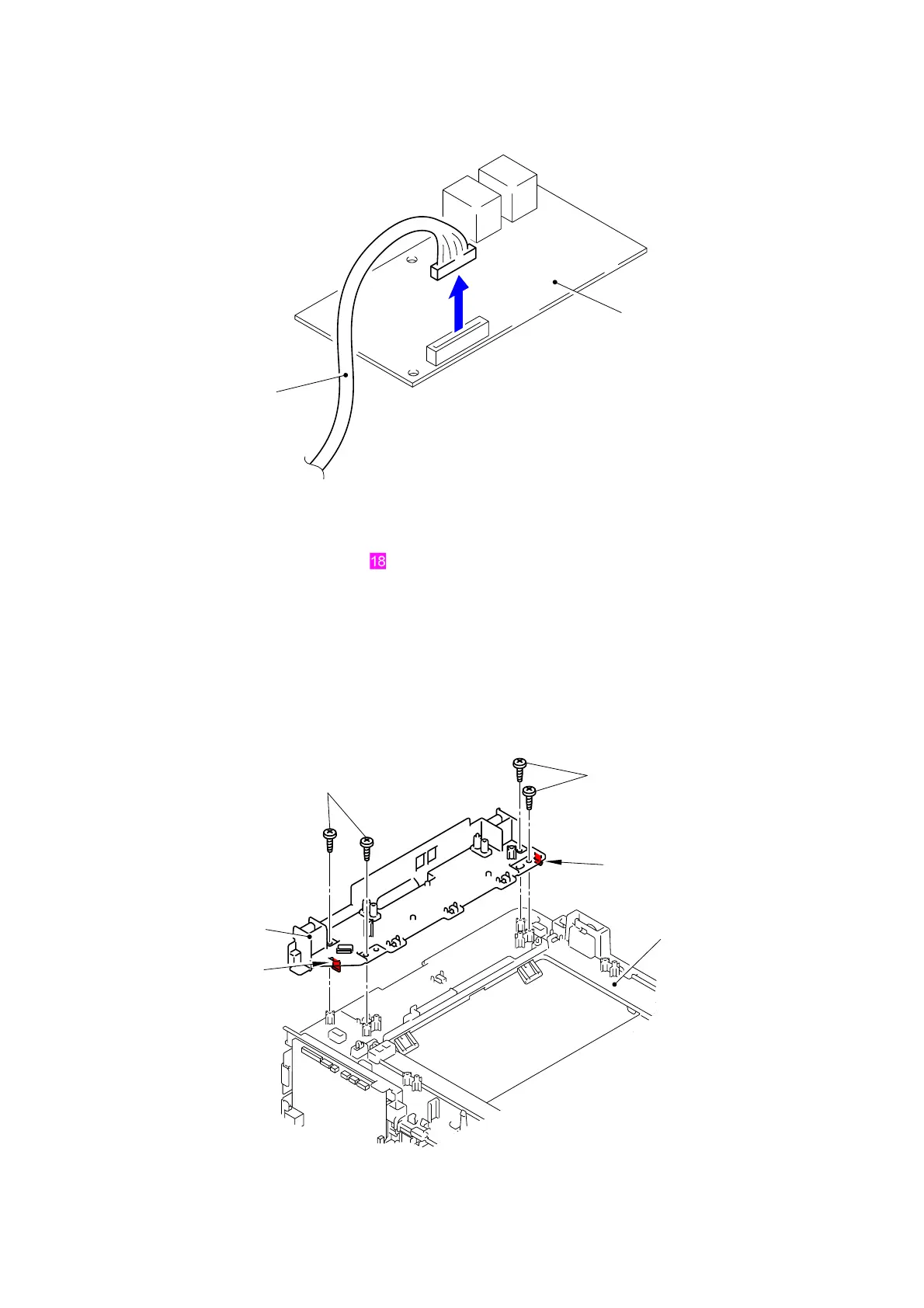

Fig. 3-194
Harness routing: Refer to “ NCU”
9.40 Back Cover Upper (A4 Model Only)
(1) Remove the four Taptite bind B M4x12 screws from the Back cover upper.
(2) Release the two Hooks to remove the Back cover upper from the Main body.
Fig. 3-195
NCU PCB ASSY
NCU harness ASSY
Taptite bind B M4x12
Hook
Back cover upper
Main body
Taptite bind B M4x12
Hook
