2. PERIODICAL REPLACEMENT PARTS
2.1 Procedures to Replace Periodical Replacement Parts
■ Preparation
Prior to proceeding with the disassembly procedure,
(1) Unplug
-the AC cord,
- the USB cable, if connected,
- the LAN cable, if connected, and
- USB flash memory drive, if connected.
(2) Remove
- the Paper tray,
- the Toner cartridge,
- the Drum unit,
- the Belt unit, and
- the Waste toner box.

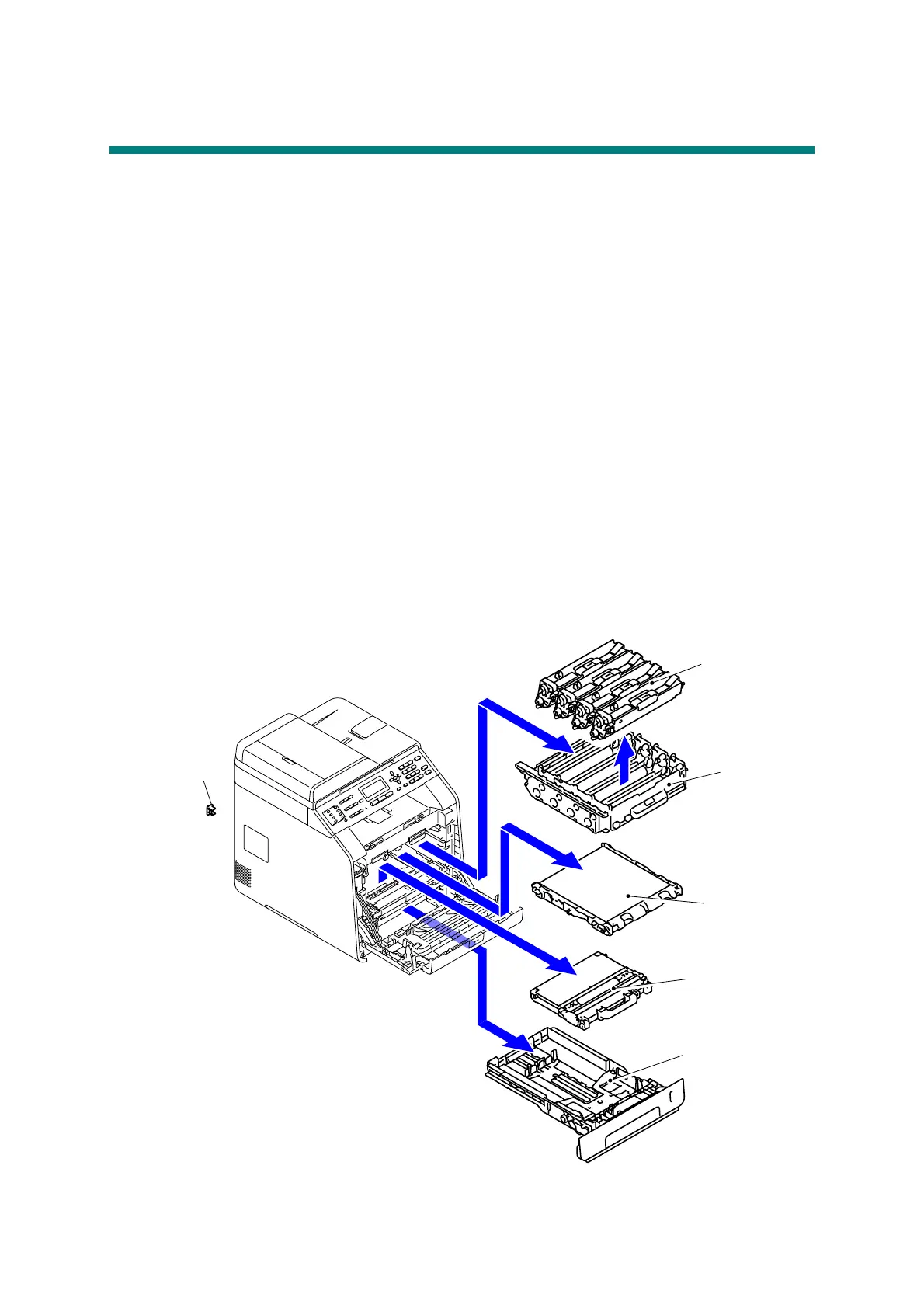

Toner cartridge
Belt unit
Waste toner box
Paper tray
Drum unit
LAN port cap
