Brother MFC-9560CDW - Upper Document Chute ASSY

3-101
Confidential
9.26 Upper Document Chute ASSY

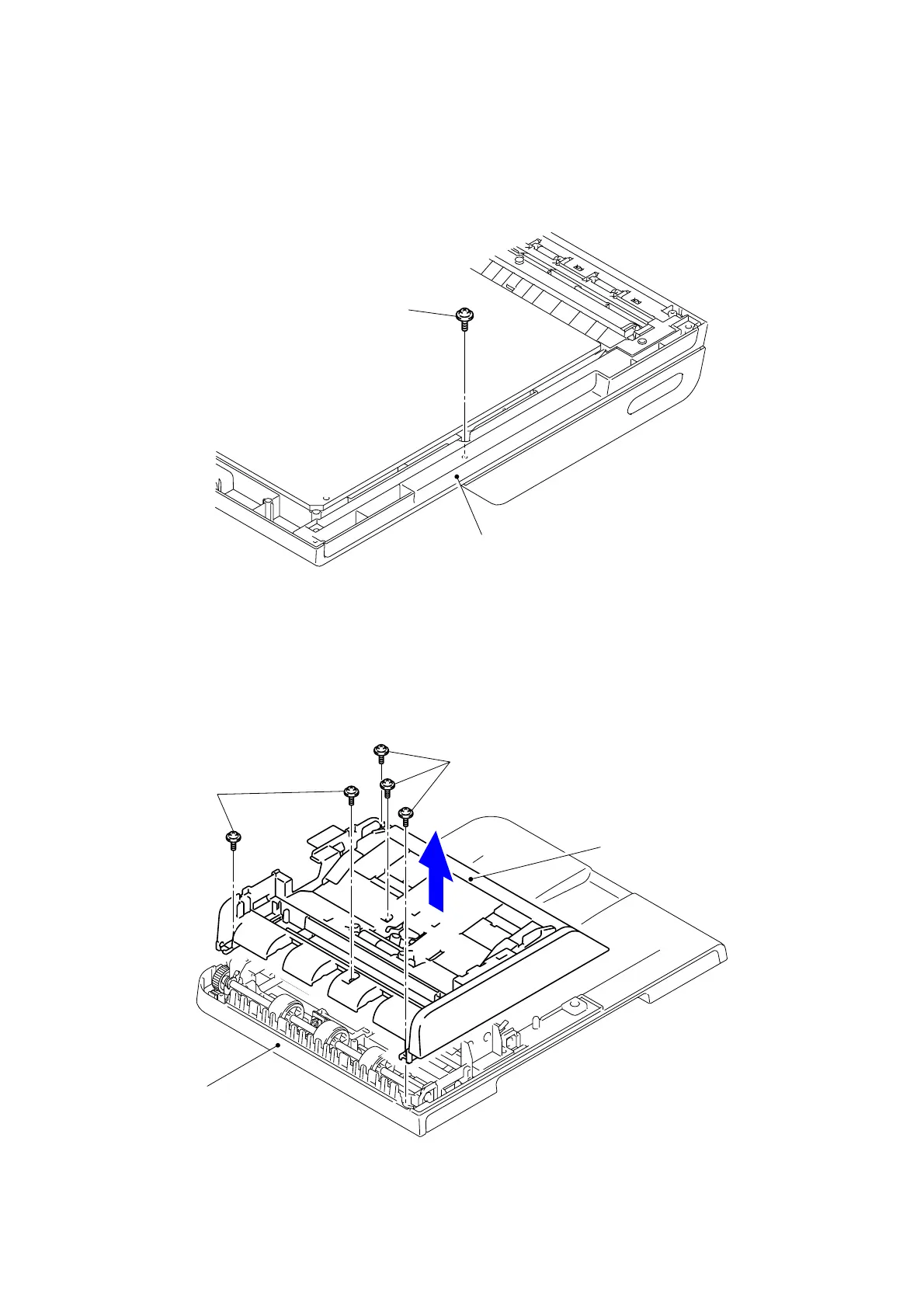

(1) Turn the ADF unit upside down.
(2) Remove the Taptite cup B M3x10 screw from the ADF unit.
Fig. 3-128
(3) Return the ADF unit to the original position.
(4) Remove the five Taptite cup B M3x10 screws from the Upper document chute ASSY.
(5) Remove the Upper document chute ASSY from the ADF unit.
Fig. 3-129
ADF unit
Taptite cup B M3x10
ADF unit
Upper document chute ASSY
Taptite cup B M3x10
Taptite cup B
M3x10
