Section 03 ENGINES
Subsection 05 (TOP END)
WARNING

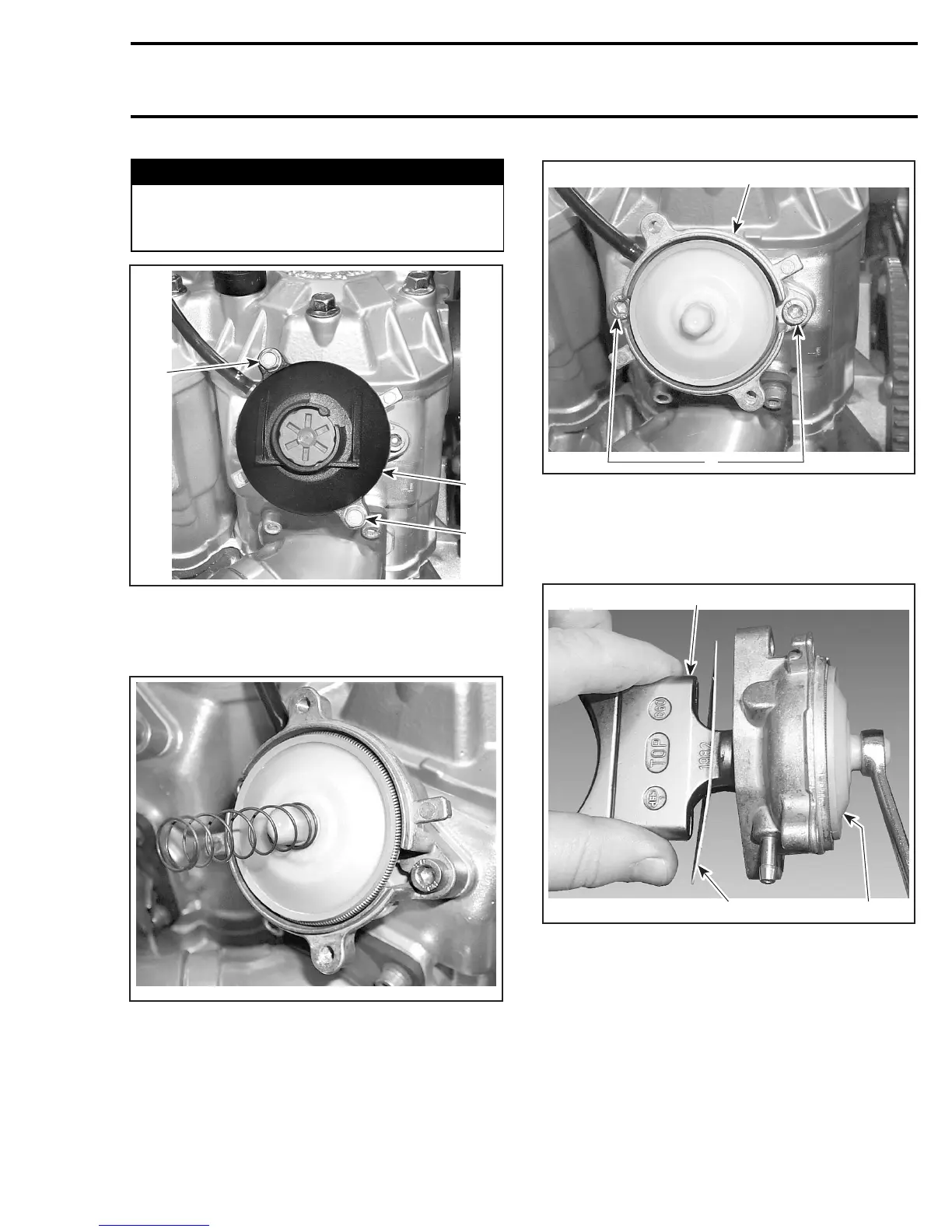

Firmly hold cover to valve base no. 6. The
compression spring no. 7 inside the valve is
applying pressure against the cover.
2
A32C96A
1
2
TYPICAL
1. Cover
2. Retaining screws
Remove the compression spring no. 7.
A32C97A
TYPICAL
Unscrew the Allen socket screw no. 8 then re-
move the RAVE valve base no. 6.
A32C98A
1
2
TYPICAL
1. Allen socket screws
2. RAVE valve base
Unscrew and remove the guillotine no. 9 from the
valve piston no. 10 than remove the gasket no. 11.
2
A32C99A
3
1
TYPICAL
1. Guillotine
2. Gasket
3. Valve piston
Remove spring no. 12 retaining bellows no. 13 to
valve piston.
mmr2005-072 99
