Section 03 ENGINES
Subsection 05 (TOP END)

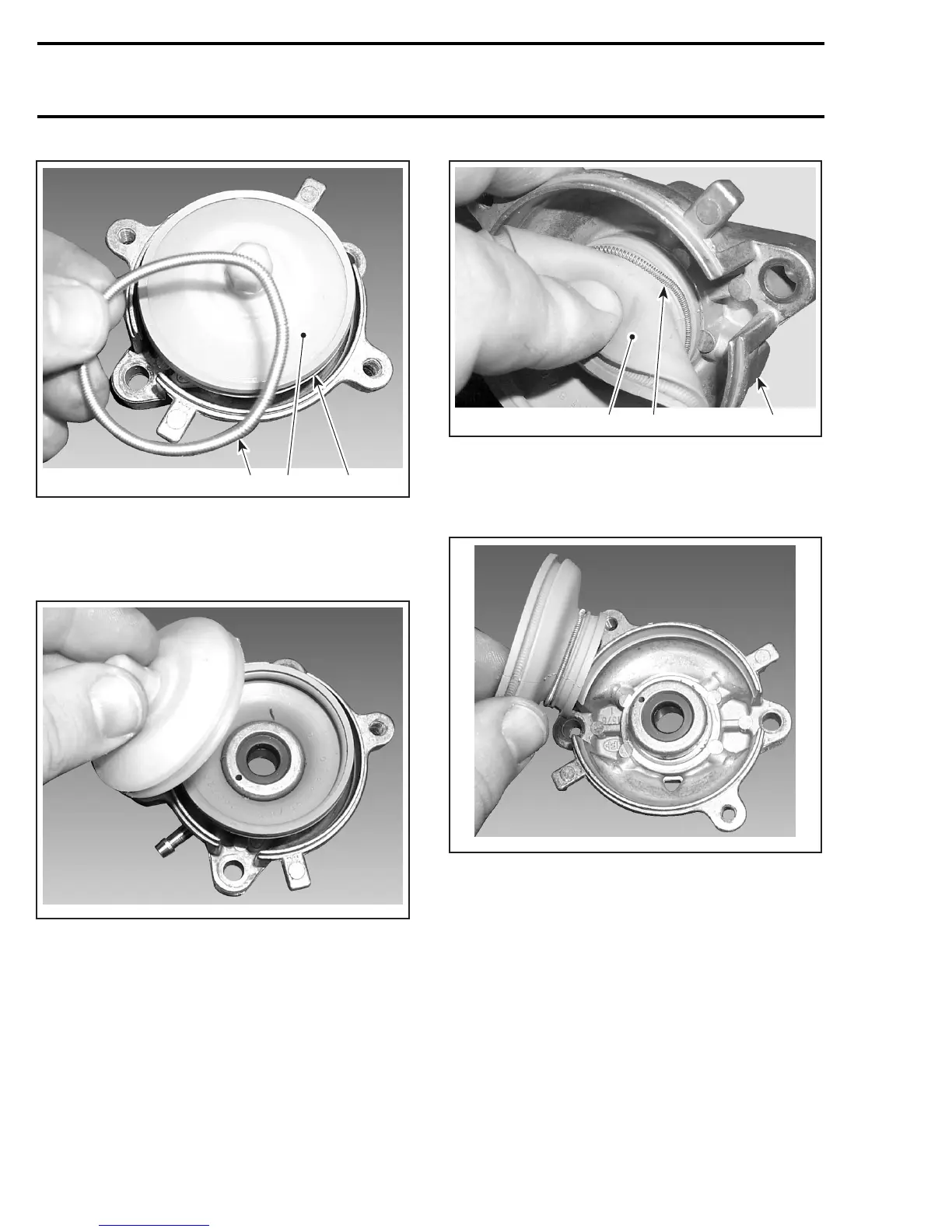

1
A32C9AA
32
TYPICAL
1. Spring
2. Valve piston
3. Bellows
Remove valve piston.
A32C9BA
TYPICAL
Remove the small spring no. 14 retaining bellows
to valve base.
1
A32C9CA
2 3
TYPICAL
1. Bellows
2. Small spring
3. Valve base
Remove bellows from valve base.
A32C9DA
TYPICAL
REED Valve
593 Engine
Remove intake resonator on top of reed valves
no. 15.
All Engines
Unscrew reed valve screws no. 16 then remove
reed valve(s).
793 HO Engine
Remove connecting flange no. 17 and gasket
no. 18.
100 mmr2005-072
