Section 03 ENGINES
Subsection 06 (BOTTOM END)

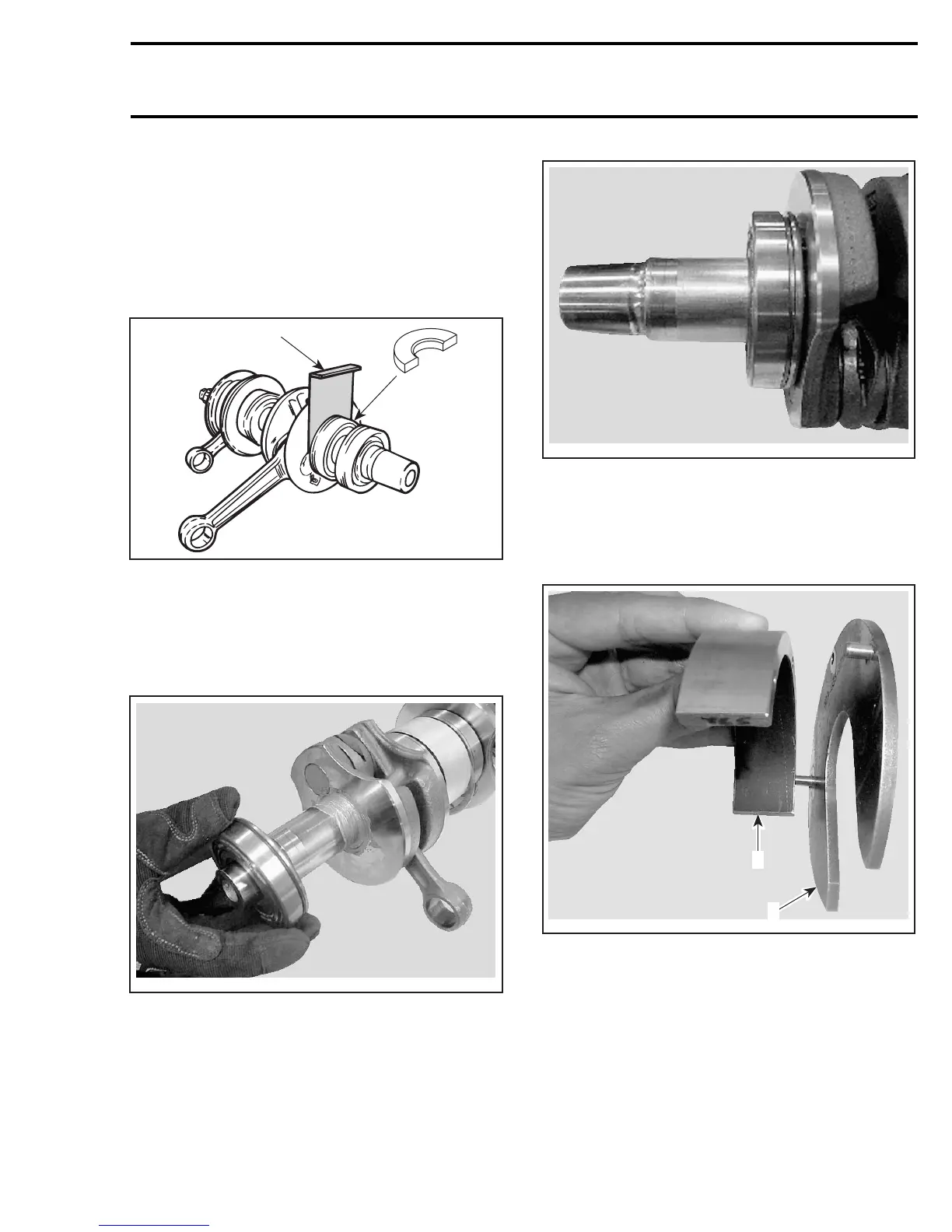

Crankshaft Bearing Installation
377 Engine
To check proper clearance between bearing no. 3
and crankshaft counterbalance , use feeler gauge
(P/N 420 876 620).
Mount second bearing with distance gauge
(P/N 420 876 822) for proper positioning.
1
2
A00C46A
1. Feeler gauge
2. Distance gauge
552 Engine
Slide in the inner PTO bearing with the integrated
seal facing crankshaft. Push bearing to end posi-
tion.
A32CBAA
A32CBBA
BEARINGTOENDPOSITION
Install the O-ring.
Make a bearing locator tool using support plate
(P/N 529 035 976) and distance gauge (P/N 529
035 965).
A32CBCA
2
1
1. Support plate
2. Distance gauge
Install bearing locator tool.
mmr2005-073 115
