Section 03 ENGINES
Subsection 06 (BOTTOM END)
A32CBDA

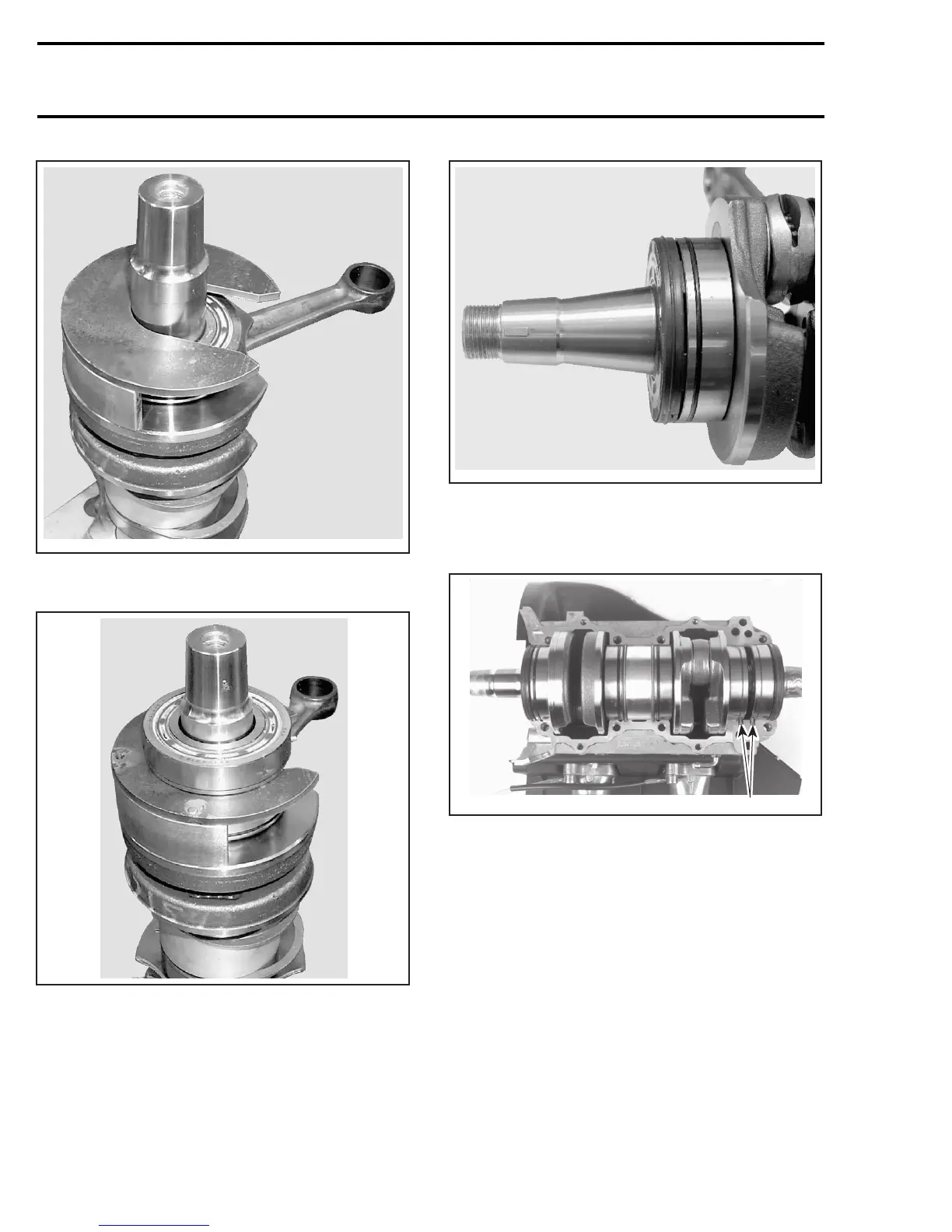

Slide in the heated outer PTO bearing onto the
crankshaft.
A32CBEA
Install the MAG side heated bearing.
A32CBFA
Crankshaft Installation
When installing crankshaft, position drive pins
no. 6 as illustrated.
A03C1HA
1
TYPICAL
1. Drive pins
At seal no. 2 assembly, apply a light coat of lithium
grease on seal lip.
377 Engine
For bearing lubrication purpose, a gap of 1.0 mm
(.040 in) must be maintained between seals and
bearings.
When installing plain oil seals (seal without locat-
ing ring or without spacing legs), ensure to main-
tain 1.0 mm (.040 in) gap.
116 mmr2005-073
