Section 03 ENGINES
Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

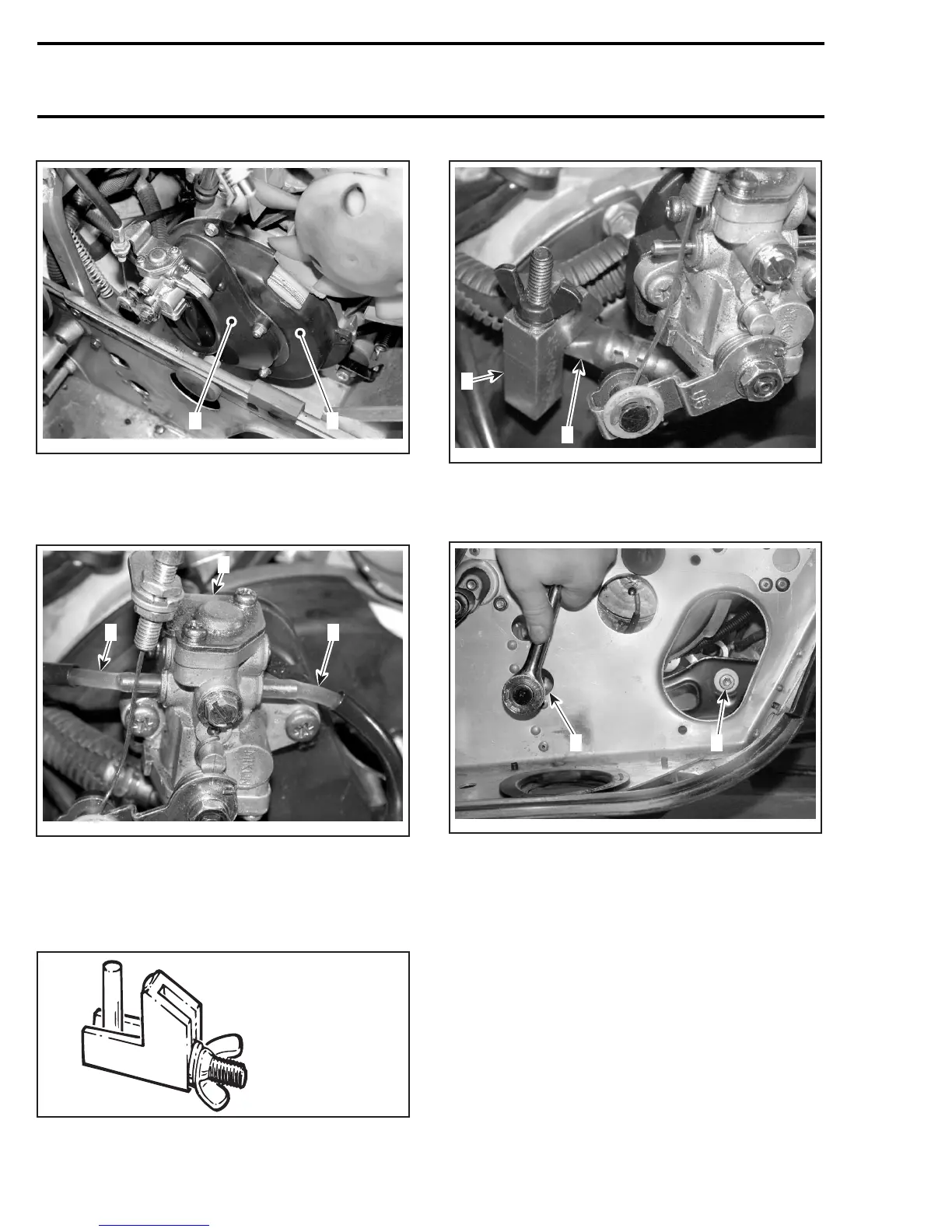

A33C46A
1 2
552 ENGINE SHOWN
1. Oil pump
2. Rewind starter housing
Unplug both outlet hoses from oil pump.
A33C47A
22
1
1. Oil pump
2. Outlet hoses
Install a small hose pincher (P/N 295 000 076) on
the inlet oil line and disconnect it from oil pump.
Catch any spillage.
295 000 076
A33C48A
2
1
1. Hose pincher
2. Inlet oil line
Unscrew engine support bolts no. 4 and no. 5.
A33C49A
1 2
1. Rear engine support bolt location
2. Front engine support bolt
On left side of vehicle, do the following:
Remove drive and driven pulleys. Refer to the ap-
propriate section.
Remove air box.
Unscrew carburetor clamps no. 6 then separate
the carburetors no. 7 from the engine.
60 mmr2005-070
