Section 03 ENGINES
Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

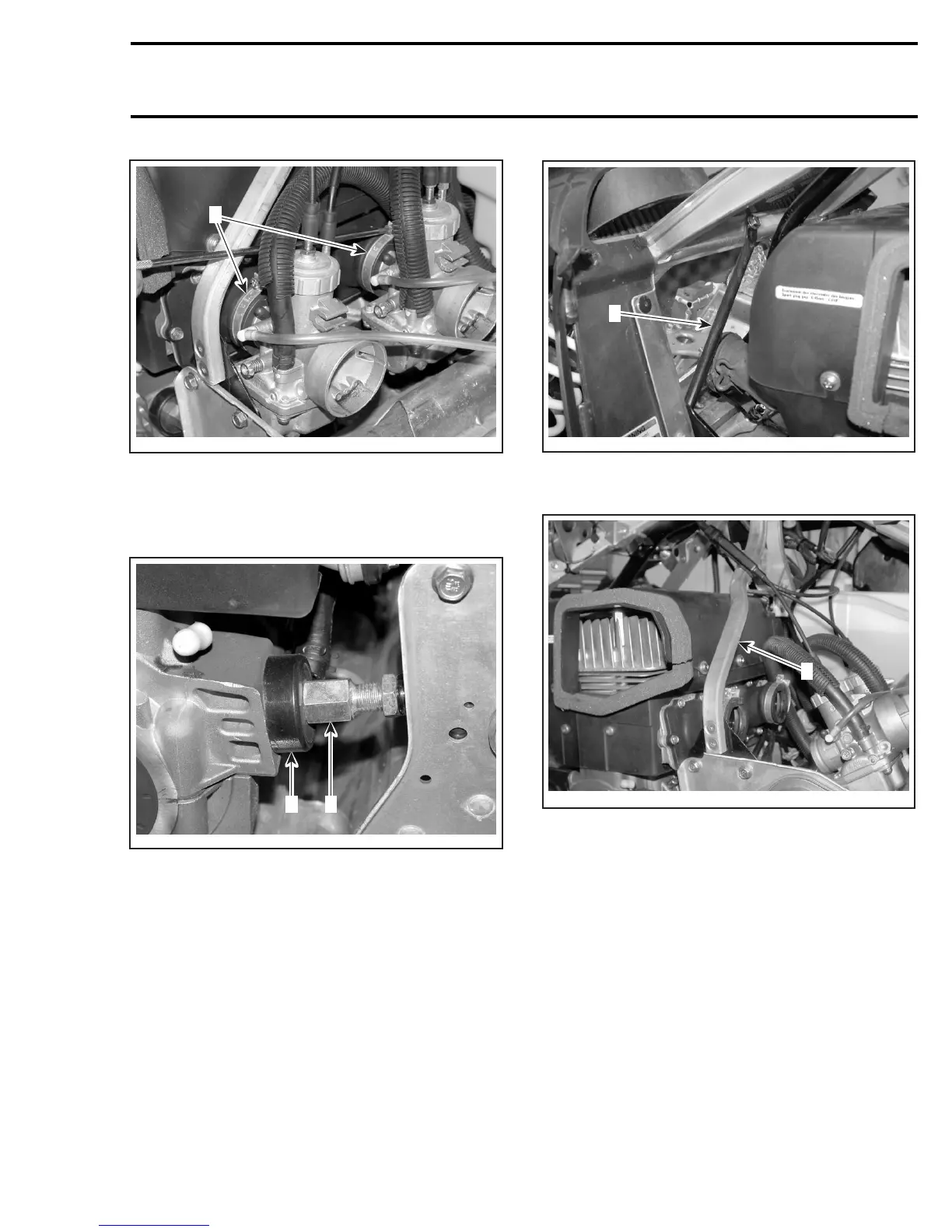

A33C4AA
1
1. Carburetor clamps
Unscrew and remove the engine stopper. Do
not remove rubber end no. 8 only, unscrew the
screwed rod no. 9 completely.
A33C4BA
1 2
1. Rubber end
2. Screwed rod
Remove the impulse line from crankcase.
Disconnect the spark plug cables.
Remove front brace.
A33C4CA
1
1. Front brace
Unscrew the rear brace.
A33C4DA
1
1. Rear brace
Remove the cylinder cowl no. 10.
mmr2005-070 61
