Section 03 ENGINES
Subsection 03 (ENGINE REMOVAL AND INSTALLATION)

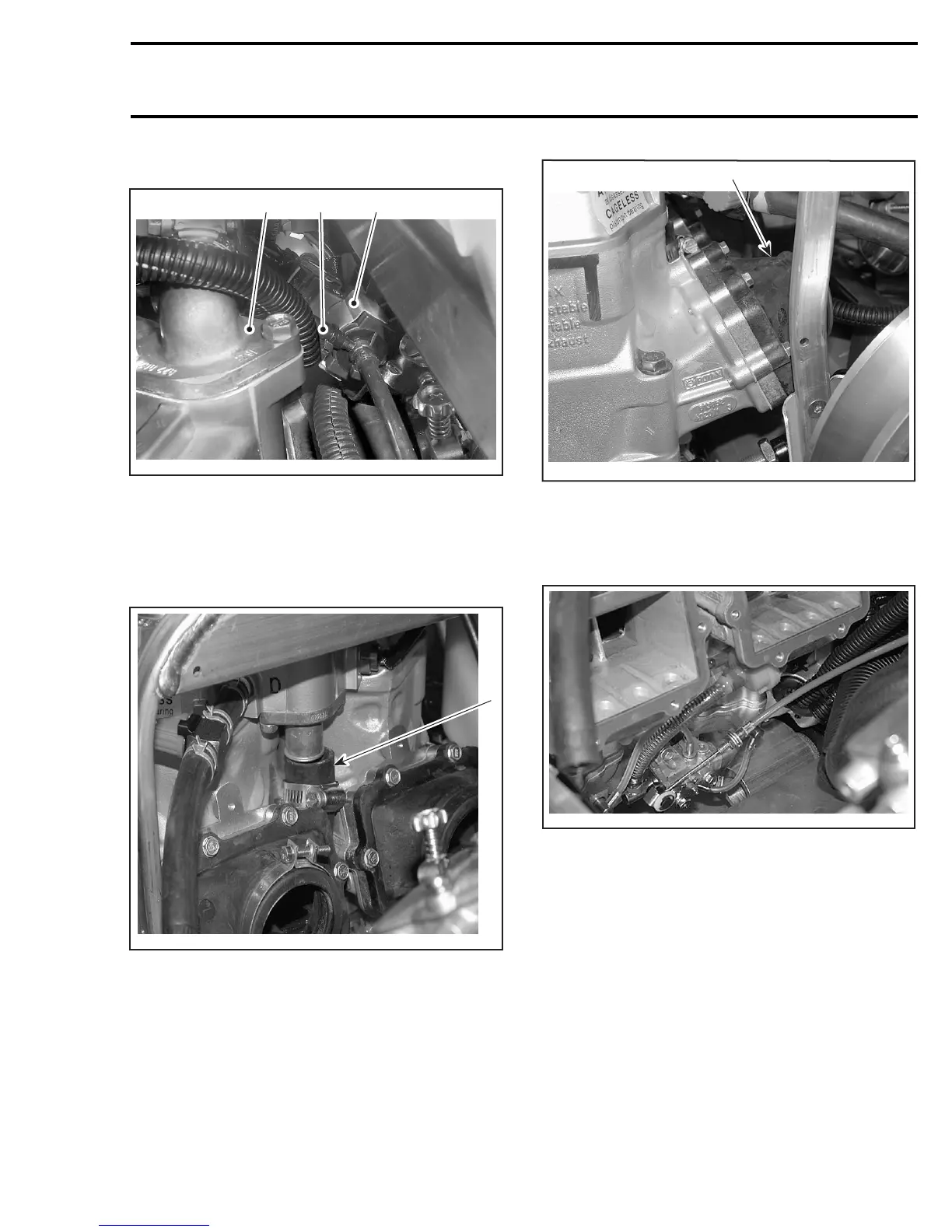

Unplug RAVE valve line from solenoid.
A33C4LA
123
1. Solenoid
2. RAVE valve line
3. Thermostat housing
Separate carburetors or throttle body from engine.
Unplug coolant hose located between cylinder
head and radiator.
1
A33C2BA
1. Coolant hose between cylinder head and radiator
Remove reed valves with their gaskets.
1
A33C2CA
TYPICAL — 793 HO ENGINE TYPE SHOWN
1. Reed valve
Unplug magneto connector from MPEM.
Detach oil pump cable from oil pump.
A33C2DA
Unplug spark plug cables.
Cut all ties retaining the knock sensor wire and
disconnect its connector.
mmr2005-070 67
