3-2 Basic Operations and Maintenance

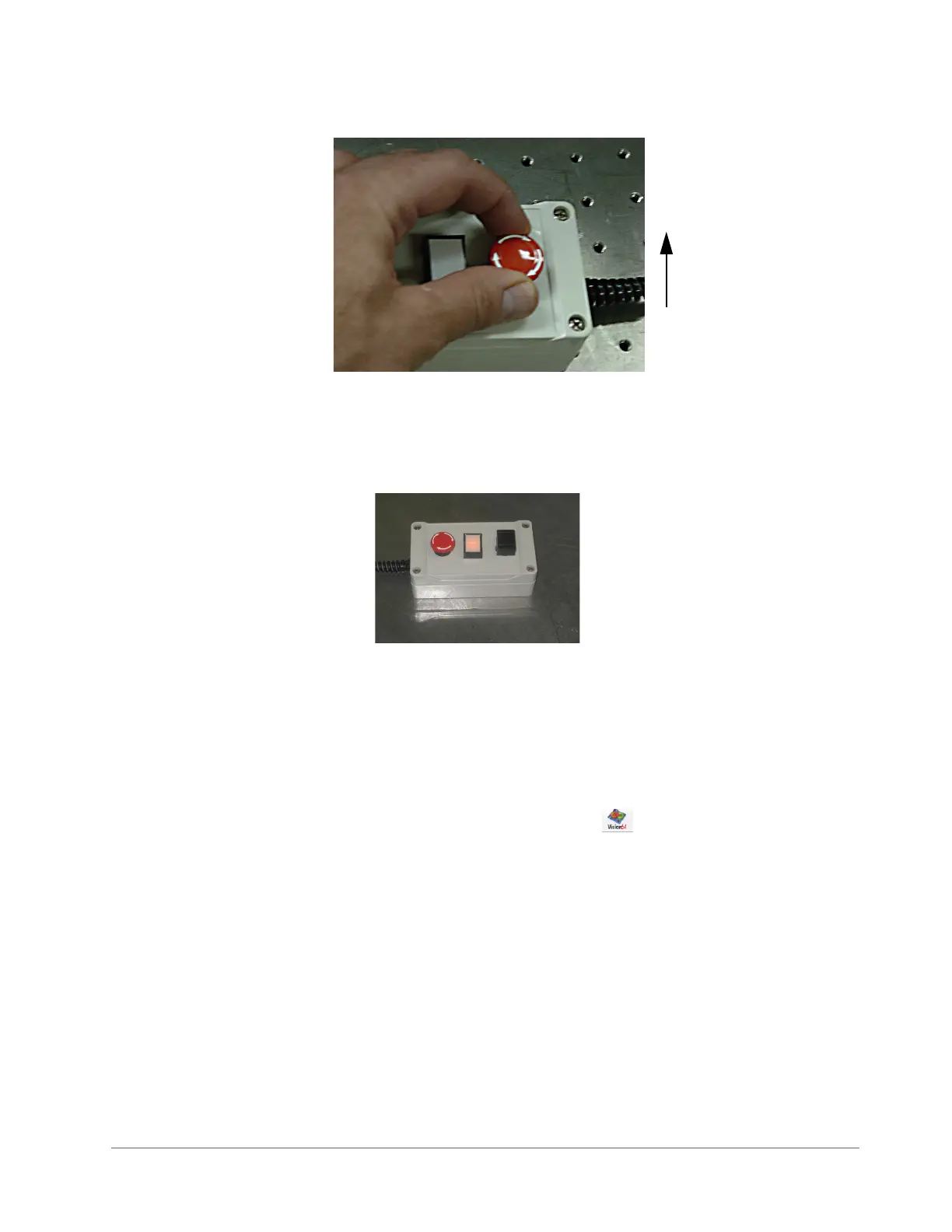

Figure 3-2: ReleasIng the Red Emergency Off Button on the EMO box
5 Press the white ON button on the EMO Box. After you do this, the following events occur:
• The white ON button on the EMO box illuminates (see Figure 3-3).
Figure 3-3: EMO Box with Illuminated On Button
• All system devices are powered up with the exception of the computer and monitor.
• The light bar at the back of the profiler Illuminates.
• The red LED lights on the scan stage limit switches illuminate.
6 Press and release the power button on the front of the computer.
7 Turn on the monitor and power up the computer.
8 Select Start > Vision64 or click the Vision64 application button on the desktop or task bar. As the
software launches, the following events occur:
• The tower assembly moves to its upper limit. The system stops with the stylus in the Tower Up position.
• The scan stage initializes. You can now safely position the sample beneath the stylus.
• The Vision64 Welcome screen appears, followed by the Vision64 Instrument tab, which includes the
DektakXT Live Video Display (see Figure 3-4).
9 Allow the system to warm up for approximately 15 minutes before taking a scan measurement.
