SMART MATRIX ↔ SM-DIN ↔ TS5 + ACT/D Connection
SMART MATRIX - 1-3 -
SMART MATRIX ↔ SM-DIN ↔ TS5 + ACT/D Connection

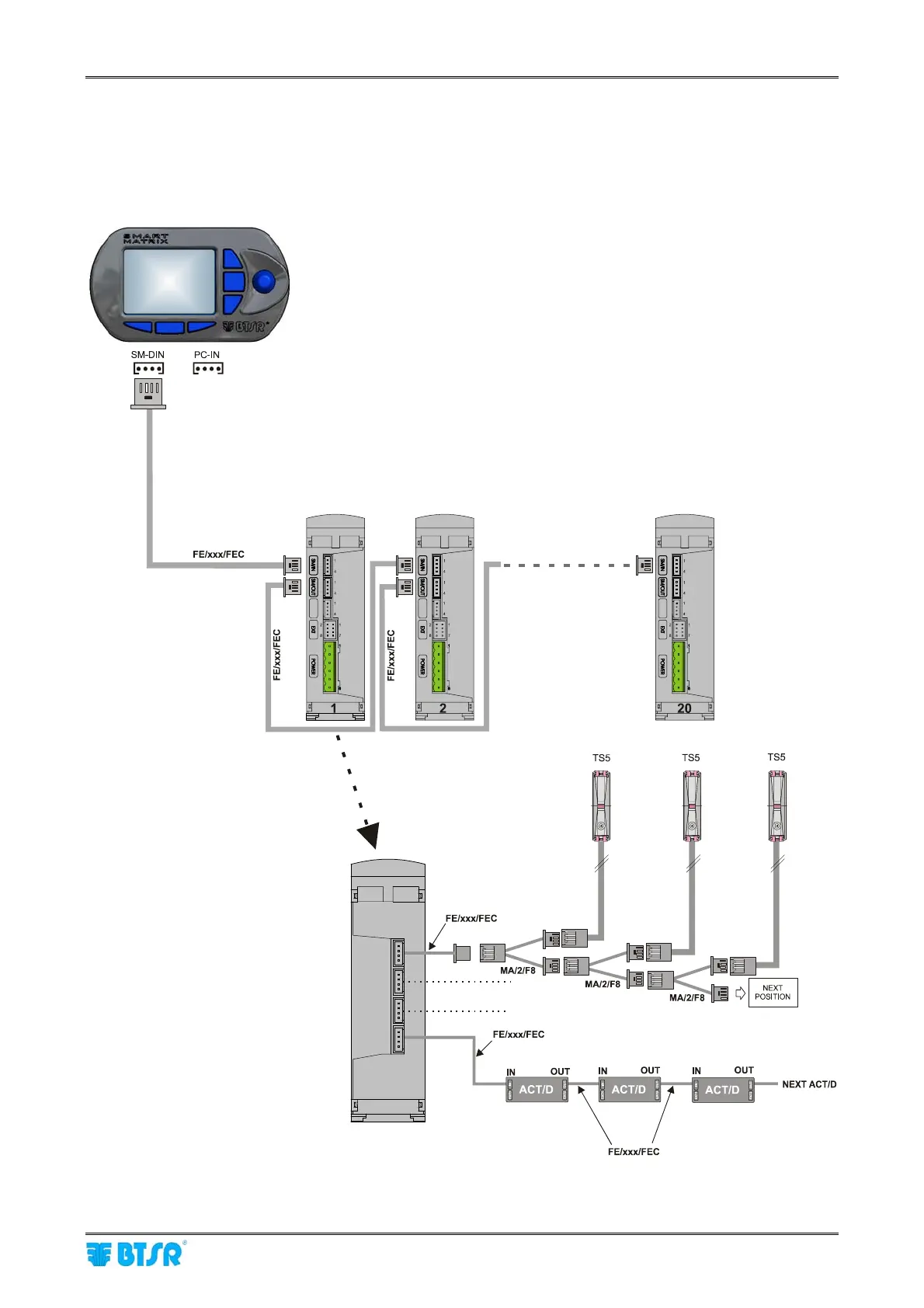

The following diagram shows the connection of TS5 Sensors and Lamp Interface Modules (ACT/D) to SM-
DIN Boards, as well as the connection between SM-DIN Boards and SMART MATRIX.
MAX 100
BOARDS
SM-DIN
