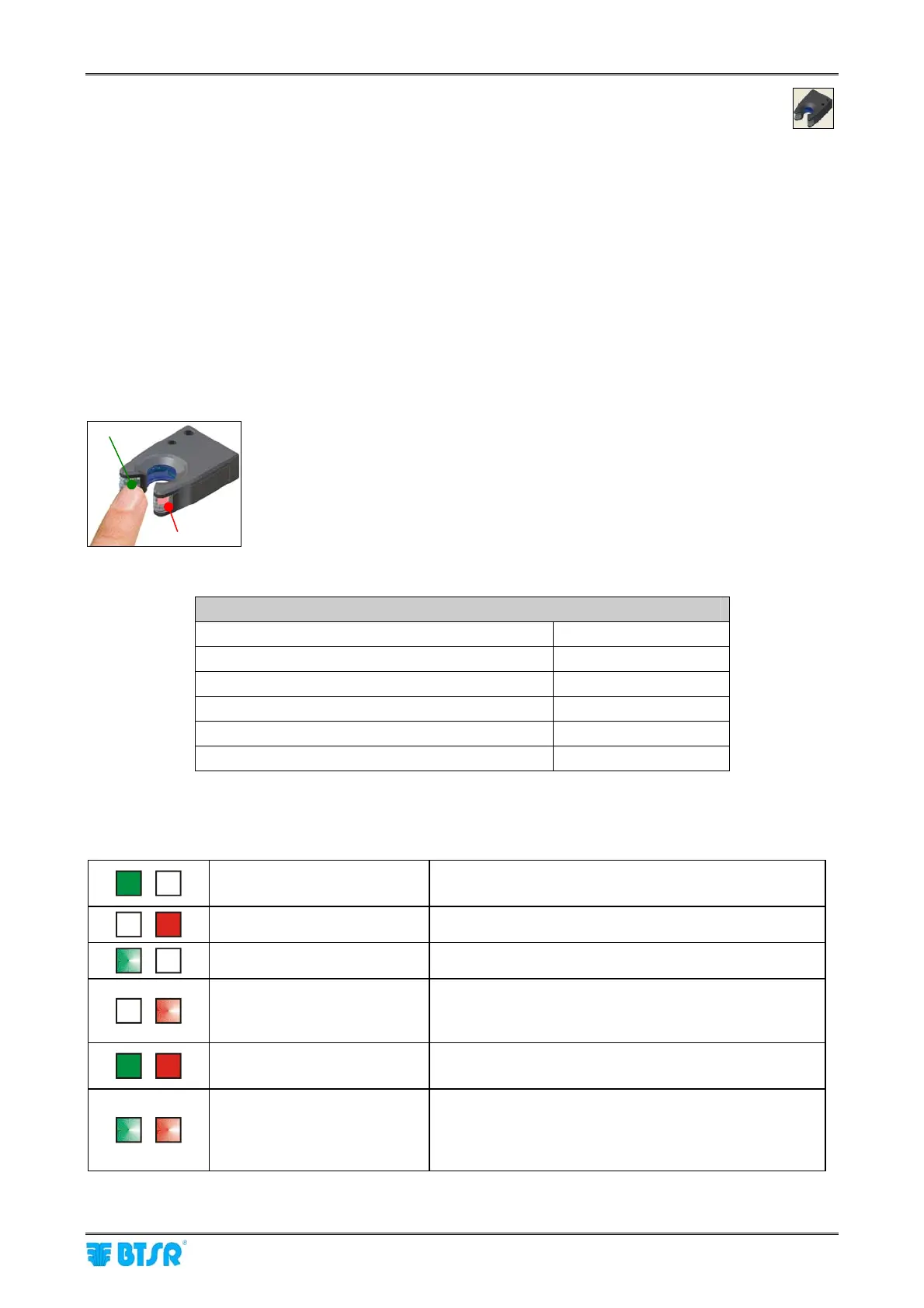

IS3 Sensor Features
SMART MATRIX - 3-1 -
IS3 Sensor Features
The IS3 electronic sensors are capable of detecting, due to a patented and advanced control technology, the
image variation of a moving yarn under control; it can show with absolute certainty the actual movement or
stop condition of the yarn.
The technique based on image variation (Image Smart Scanning Sensor) makes the IS3 sensor exempt from
the influence of environment/yarn conditions: i.e. in humidity, conductivity and machine vibrations. It does not
require any physical contact with the yarn under control and therefore allows perfect monitoring without
affecting the tension features of the yarn itself in any way
The IS3 devices are the most reliable and advanced solution for yarn control in textile machines.
IS3 is full programmable for an easy fitting to the control of any type of yarn/application.
Optical interface of IS3 sensors
The IS3 sensors have two signaling lights (green LED, red LED) and a “Touch
Light” optical button.
During the automatic numbering of the sensors (flashing green LED), touch the
optical button to give the sensor the number shown in the devices configuration
screen.
IS3 Sensor Technical Characteristics
Power supply voltage 12-24 VDC ± 20%
Current absorption 20 mA Max
Operating temperature range +10° / +60° C
Storage temperature range -25° / +85° C
Communication bus RS485
Overall dimensions 36,3x25x10 mm
Interpretation of the signaling lights located on the sensors
Green LED ON Normal operation, the yarn is running inside the sensor;
No technical fault detected by the sensor.
Red LED ON Yarn stopped.
Green LED FLASHING The system is in automatic numbering phase.
Red LED FLASHING During machine operation the sensor has detected a
fault.
(BROKE: broken yarn - UNCUT: uncutted yarn).
Green LED ON
Red LED ON
Stopped sensor. Switch off, then power on the system.
If the condition is permanent, replace the sensor.
Green LED FLASHING
Red LED FLASHING
Indicates a technical fault in the sensor(e.g. a loss of
stored data).
Try to reprogram the sensor. If the fault remains,
replace the sensor.
Green Led
Touch
light
Red Led
