Errors shown on Display of SM-DIN Boards
SMART MATRIX - 2-56 -
Errors shown on Display of SM-DIN Boards

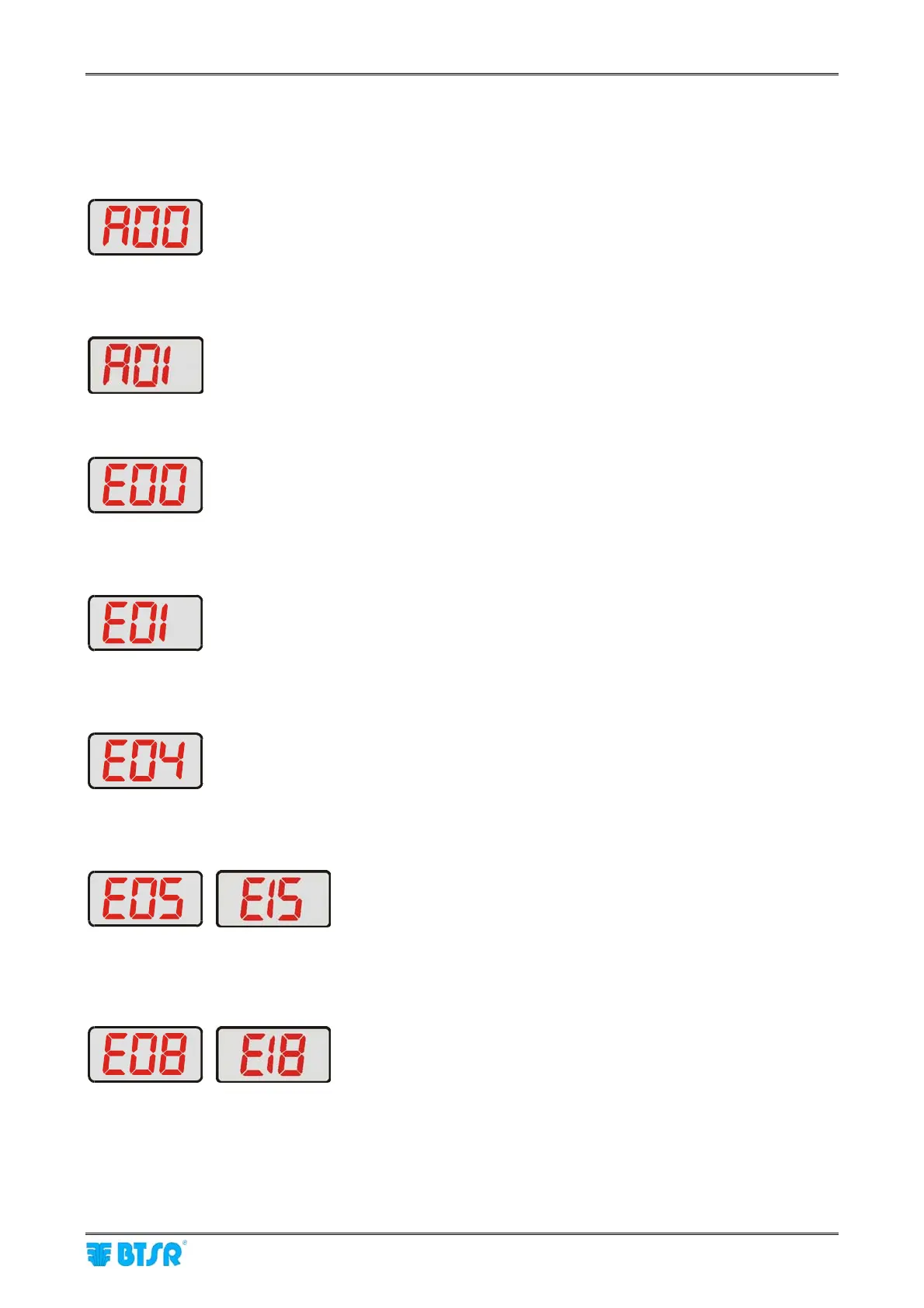

The failures/errors on SM-DIN modules are indicated by the following codes on the Board’s display:
Generic Alarm.
At least one sensor signaled an alarm.
Error detected during the Learn phase
RAM Error
Error detected on RAM memory contents; the memory will be initialized with the default values.
EEPROM Error
Error detected on EEPROM memory contents; the memory will be initialized with the default values.
Input Signals Error
The module cannot determine the logical level of the external input signals (EXT).
Communication Error
The module cannot communicate with one or more sensors (E05) or with one or more ACT/D modules
(E15).
Programming Error
The module was not able to program one or more parameters on one or more sensors (E08) or one or more
ACT/D modules (E18).
