SMART MATRIX ↔ SM-DIN/PC Interface
SMART MATRIX - 1-8 -
SMART MATRIX ↔ SM-DIN/PC/DISPLAY Interface

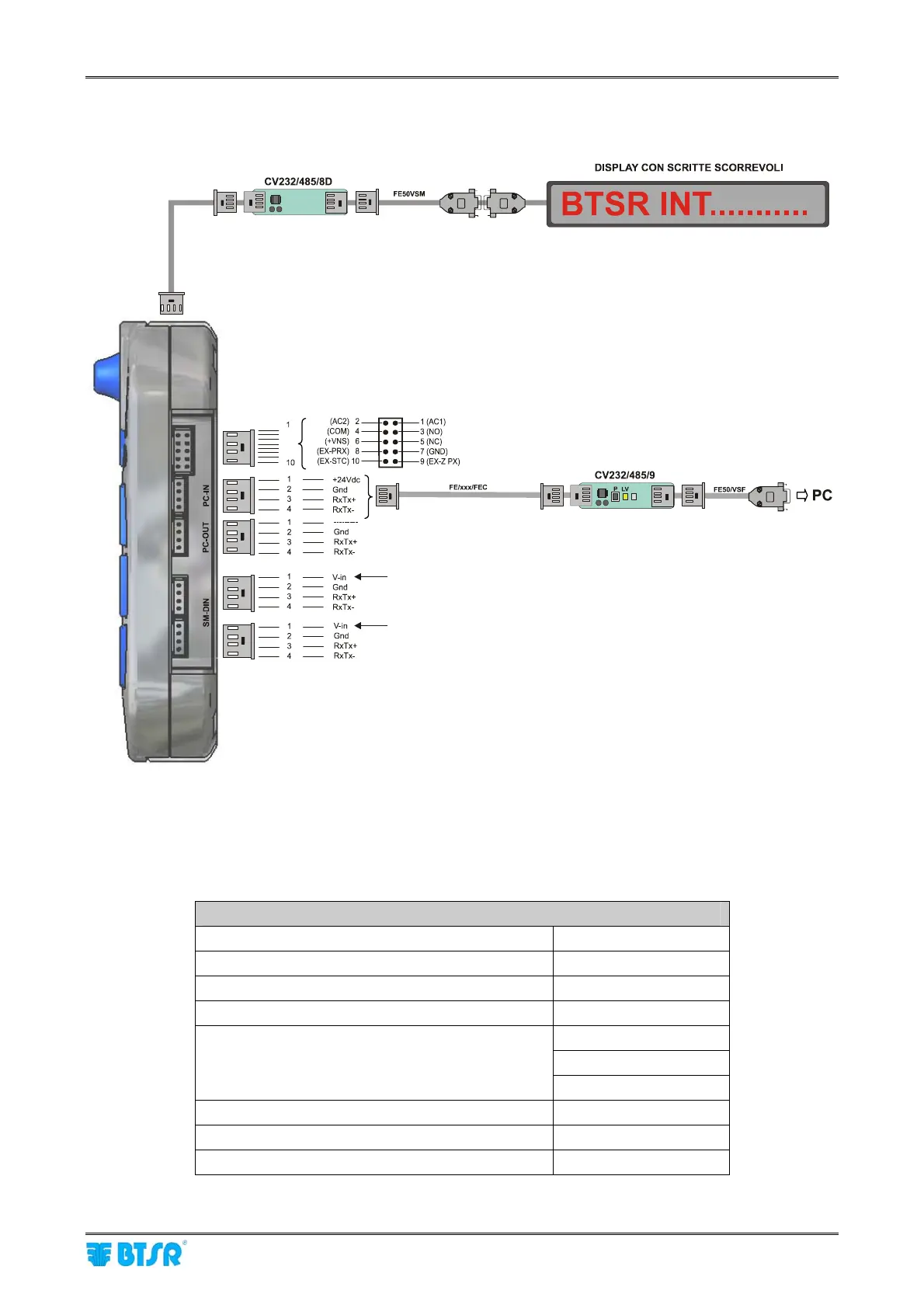

The following figure shows the electrical interface (pin assignment) of Smart Matrix terminal.
(*) Press the P button to setup the communication speed on CV232/485/9:
- LED LV with single flashing = 57.6 Kbps
- LED LV with double flashing = 115 Kbps
(**) Not necessary for Warp application
SMART MATRIX Terminal Technical Characteristics
Power supply voltage 24 VDC ± 10%
Current absorption 100 mA Max
Protection fuse (SMART MATRIX) 1.5 A
Protection fuse (Sensor power supply) 1.5 A
0 – 24 VDC
VIL Max 1.2 VDC
Inputs
VIH Min 5 VDC
Operating temperature range +10° / +60° C
Storage temperature -25° / +85° C
Overall dimensions 140x80x31 mm
(*)
(**)
Supply voltage from SM-DIN
Supply voltage from SM-DIN
