Sensors Test

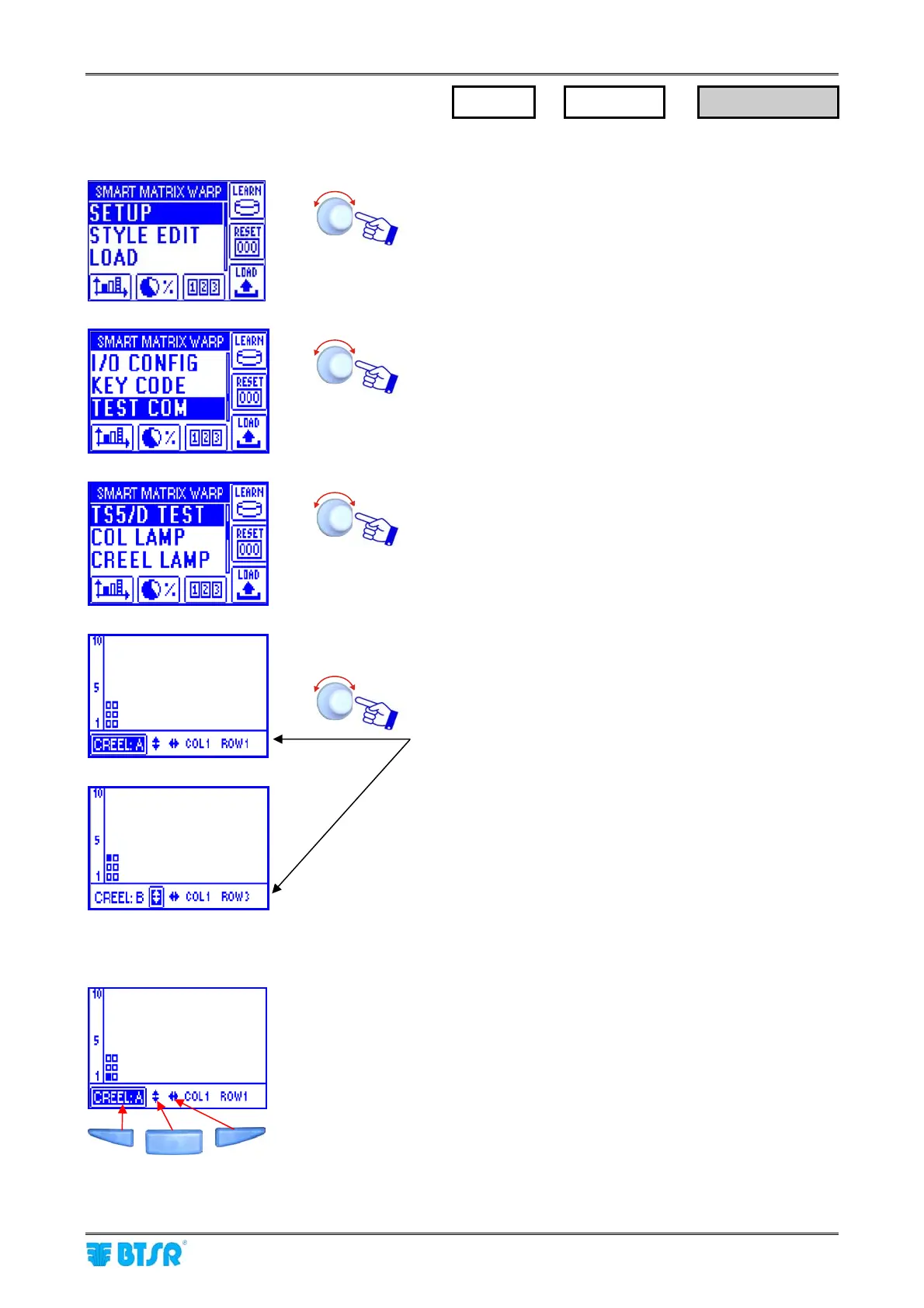

Enter the SETUP menu.
Select TEST COM.
Select TS5/D (IS3) TEST.
Select the desired creel and sensor.
Coordinates of selected sensor (the red led shall flash on
selected sensor).
 To select the sensor coordinates (Creel, Column and Row) you may use the “shortcut” buttons or
press in sequence the rotary selector.
Creel Column Row
SETUP
→
TEST COM
→
TS5/D (IS3) TEST
