SMART MATRIX WARP Operation
SMART MATRIX - 2-2 -
Navigation throughout the Display Windows
Many configuration/parameter setting functions of SMART MATRIX system require a number of parameters
distributed among multiple
display windows.
All the “Window Selection”, “Parameter Selection within a Window” and “Parameter Setting” functions on
SMART MATRIX terminal, can be carried out using exclusively the multi-function Rotary Selector, through a
navigation technique based upon “Pointing”, “Selecting” and “Value Setting” actions.
The following example explains this navigation technique.
The example refers to the Style Parameters Programming function for TS5 sensors, which makes use of 5
windows (TENS, PK, NY, CFG1, CFG2).

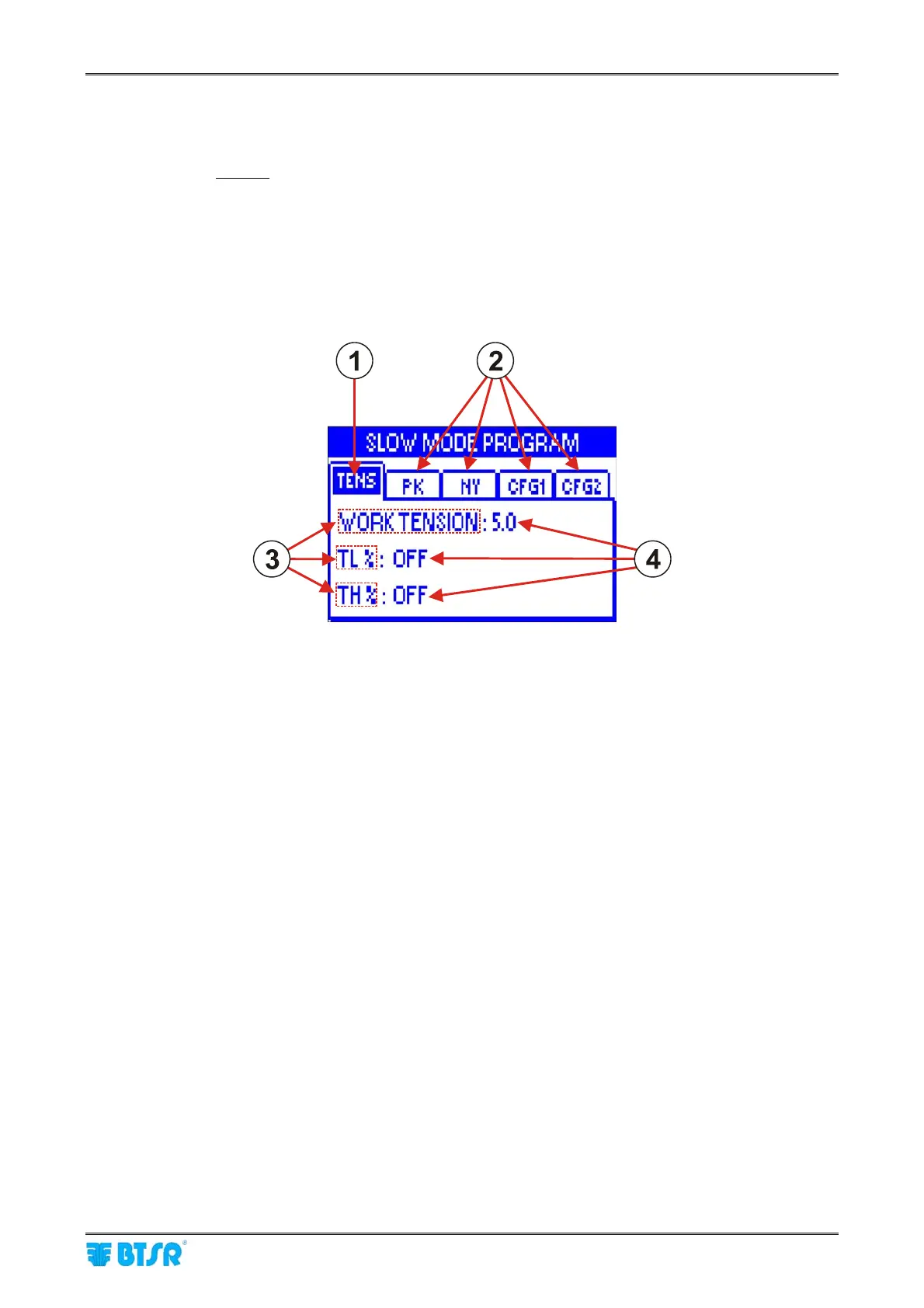

1 - Name (label) of currently selected window (foreground)
2 - Names (labels) of non-selected windows (hidden)
3 - Name of fields within the currently selected window
4 - Field values
