Differences between TS5 and TS7 Sensors
SMART MATRIX - 3-13 -
Differences between TS5 and TS7 Sensors
The TS5 and TS7 sensors are basically identical in terms of functionality, performance, control parameters,
etc. The only difference being the electrical interface:
TS5 = Built-in cable with either 4 or 8 pin
(*)
connector
TS7 = 2 built-in connectors for “daisy-chain” connection (like IS3F)
(*) The 8 pin connector is not used on SMART MATRIX WARP application.

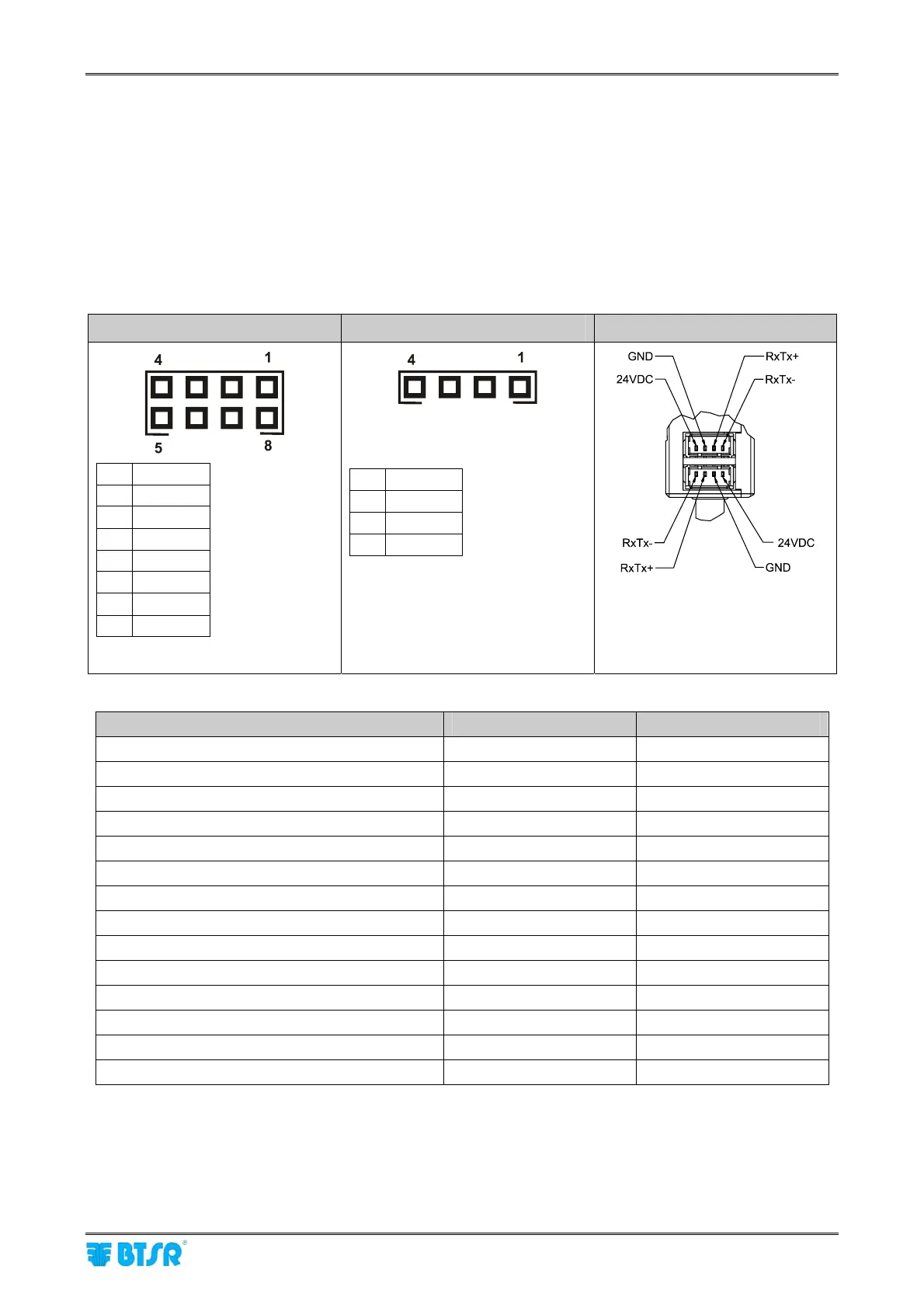

TS5 8 pin TS5 4 pin TS7
1 +VCC
2 GND
3 RX TX+
4 RX TX-
5 STOP
6 GND
7 ANAL.
8 ENABLE
1 +VCC
2 GND
3 RX TX+
4 RX TX-
Technical Characteristics TS5 TS7
Power supply voltage 12-24 VDC ± 10% 24 VDC ± 10%
Current absorption 45 mA Max 30 mA Max
Analogic output (only for TS5 – 8 pin) 100 mV – 5 V ----
Analogic output resistance (only for TS5 – 8 pin) 1K Ohm ----
Operating temperature range +10° / +50° +10° / +50°
Storage temperature range -25° / +85° -25° / +85°
Tension range 0 – end scale 0 – end scale
Useful tension range 0% - 95% end scale 0% - 95% end scale
Max applicable tension 10 times end scale 10 times end scale
Drift error 0,05%/°C 0,05%/°C
Repeatability error 0,5% 0,5%
Max linearity error 1% (0 – end scale) 1% (0 – end scale)
Communication bus RS485 RS485
Overall dimensions 50x25x12,5 mm 50x25x12,5 mm
