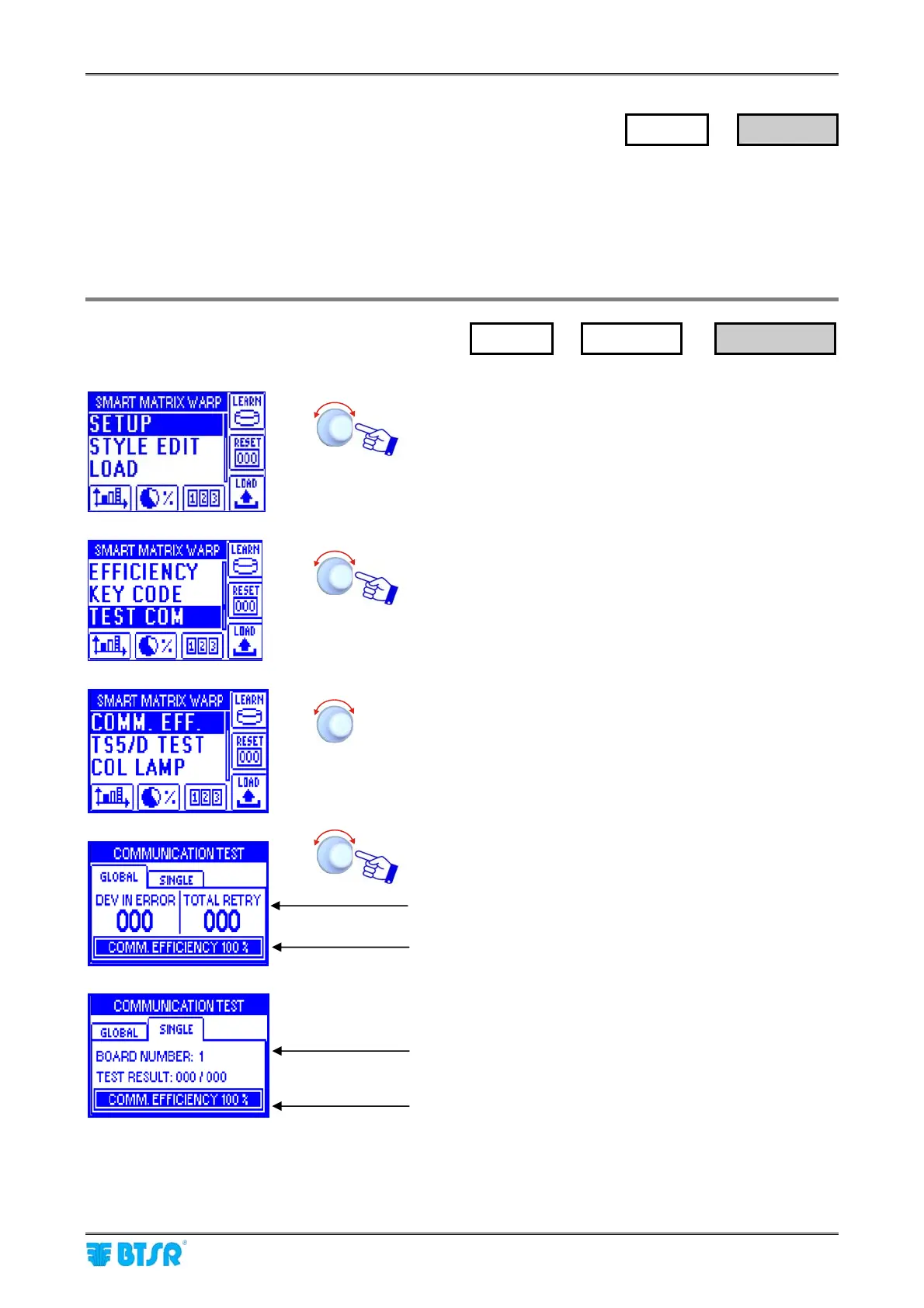

Communication Test
SMART MATRIX - 2-28 -
Communication Test
This function allows you to check:
- The efficiency level of communications between SMART MATRIX and SM-DIN Boards and between SM-
DIN Boards and Sensors.
- The correct operation of Sensors.
- The correct operation of ACT/D modules
Communication Efficiency
Enter the SETUP menu.
Select TEST COM.
Select COMM. EFF. to check the efficiency level of
communications.
Select GLOBAL or SINGLE (single Board).
Total number of communication errors and number of test
retries performed on all Boards.
Global efficiency index.
Total number of communication errors and number of test
retries performed on selected Board (1)
Efficiency index of Board 1.
SETUP
→
TEST COM
SETUP
→
TEST COM
→
COMM. EFF.
