btsr SMART MATRIX WARP - Lamps Test

Lamps Test
SMART MATRIX - 2-30 -
Lamps Test

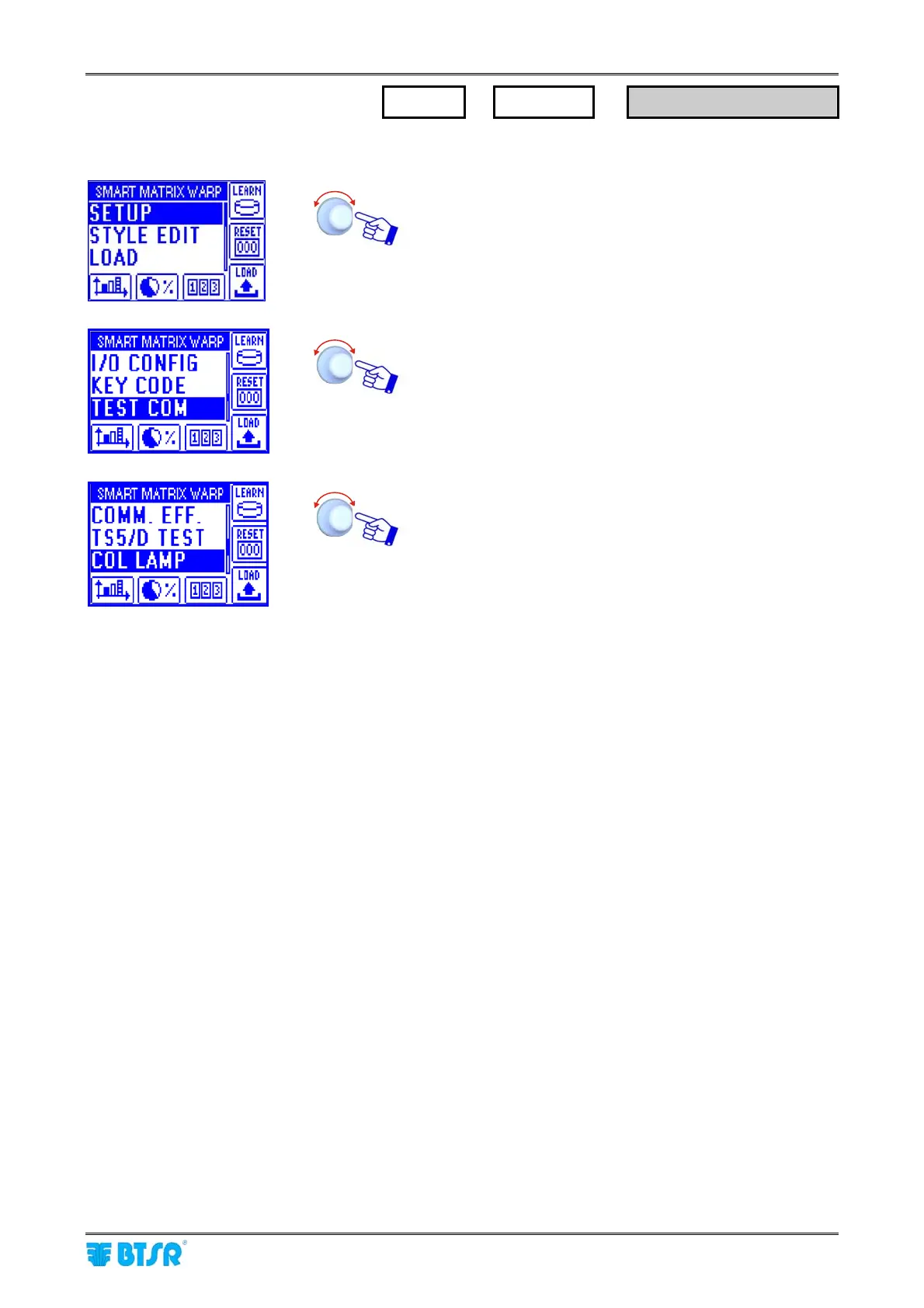

Enter the SETUP menu.
Select TEST COM.
Select COL (ROW) (BAR) LAMP or CREEL LAMP to carry
out the test.
The display will show the lamps map.
Select the desired Creel and lamp.
The red led shall flash on the selected ACT/D module.
 To select the lamp you may use the “shortcut” buttons or press in sequence the rotary selector.
SETUP
→
TEST COM
→
COL (ROW) (BAR) LAMP
