TS5/TS7 Sensor Features

SMART MATRIX - 3-10 -

This parameter indicates the Max Peak Value (expressed as positive percentage value) with respect to the

reference tension WORK TENSION, above which a failure condition will be signaled. The following two

values must be specified:

 PH % = Positive error percentage (max peak) with respect to the tension WORK TENSION

 PH (ms) = Minimum duration of error condition to signal the failure

This parameter indicates the Min Peak Value (expressed as negative percentage value) with respect to the

reference tension WORK TENSION, below which a failure condition will be signalled. The following two

values must be specified:

 PL % = Negative error percentage (min peak) with respect to the tension WORK TENSION

 PL (ms) = Minimum duration of error condition to signal the failure

This parameter indicates the Tension Value (expressed as negative percentage) with respect to the

reference tension WORK TENSION, below which the yarn missing condition will be signaled. The following

two values must be specified:

 NY % = Negative error percentage with respect to the tension WORK TENSION

 NY (ms) = Minimum duration of error condition to signal the failure.

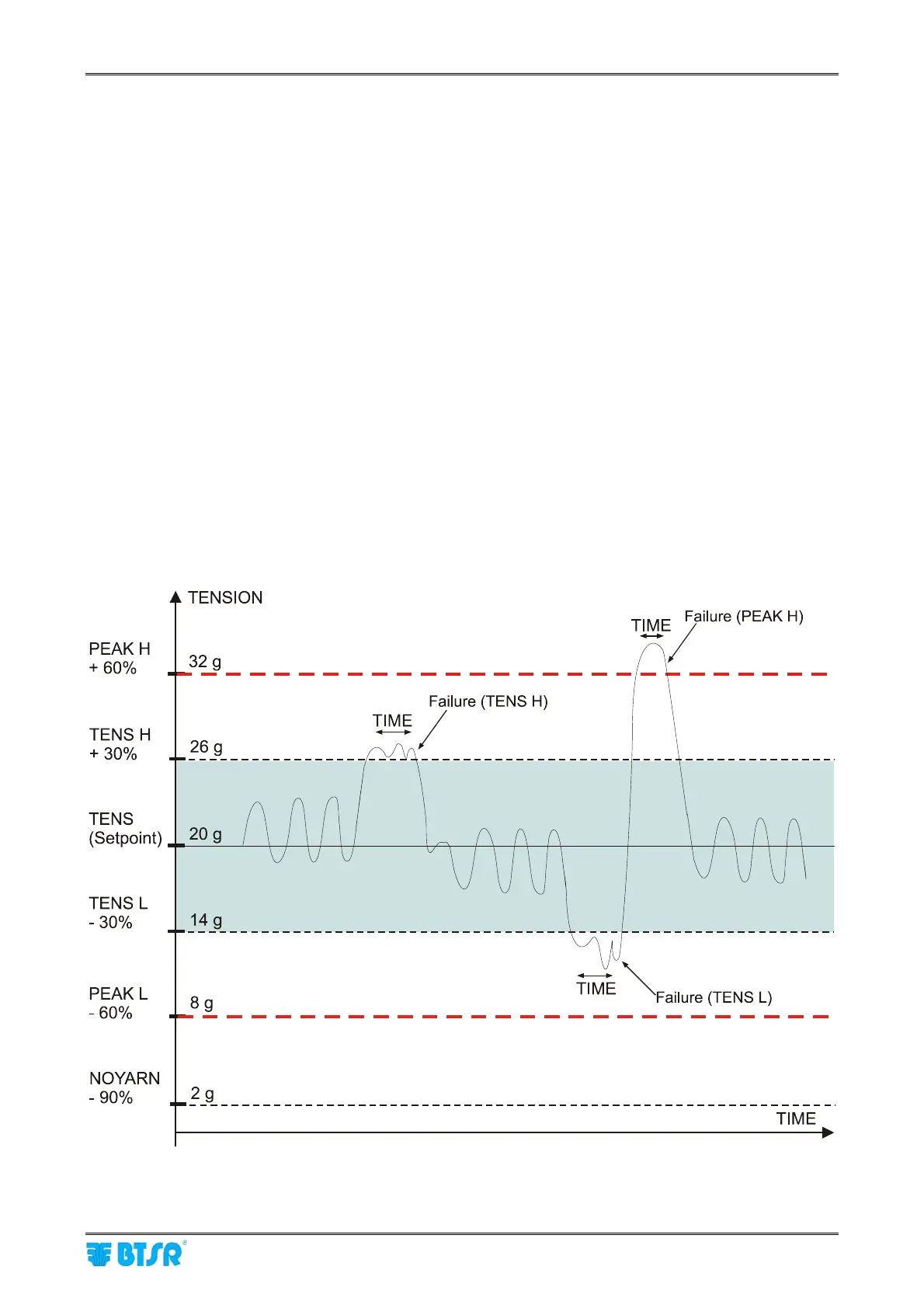

Example of Tension Control:
