Buffalo LS-VL - Diagrams and Layout (LS-VL, LS-XHL, LS-CHL)

Chapter1 Setup
LinkStation User Manual 16
Diagrams and Layout (LS-VL, LS-XHL, LS-CHL)
1
Power LED
Blue LED: Power on.
LED is OFF: Power o.
Blinks blue:During startup or shutdown.
Amber light is ashing: The amber light ashes if there is a
message. Flashing pattern varies depending
on the message. For more information, refer to
"Status LED" on page 194 .
Red light is ashing: Red light ashes when an error
occurs. Flashing pattern varies depending on
the message. For more information, refer to
"Status LED" on page 192 .
2
Function Button
The Function button initiates direct copy, dismounts USB
devices, and is used to initialize the LinkStation

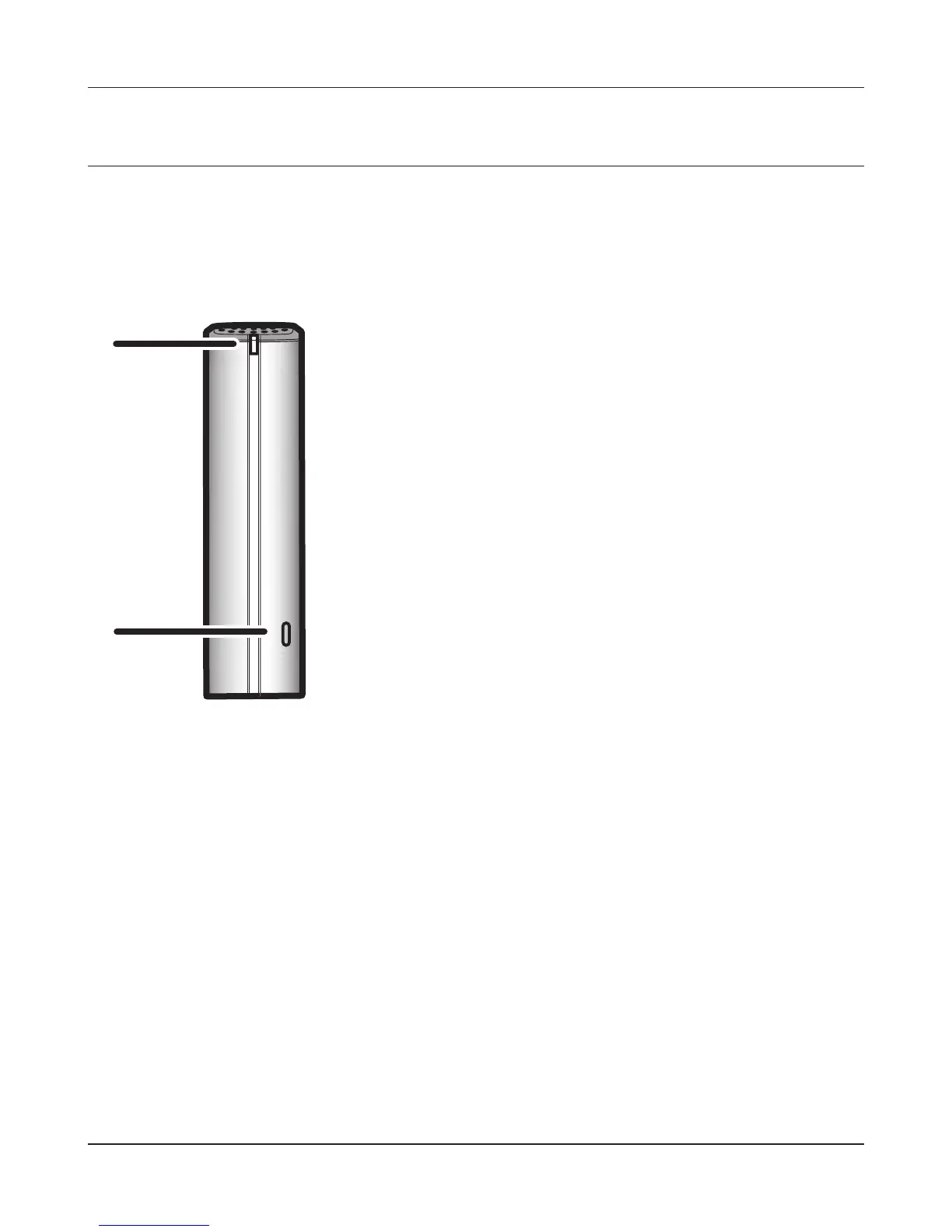

Front
1
2
