Chapter1 Setup
LinkStation User Manual 22

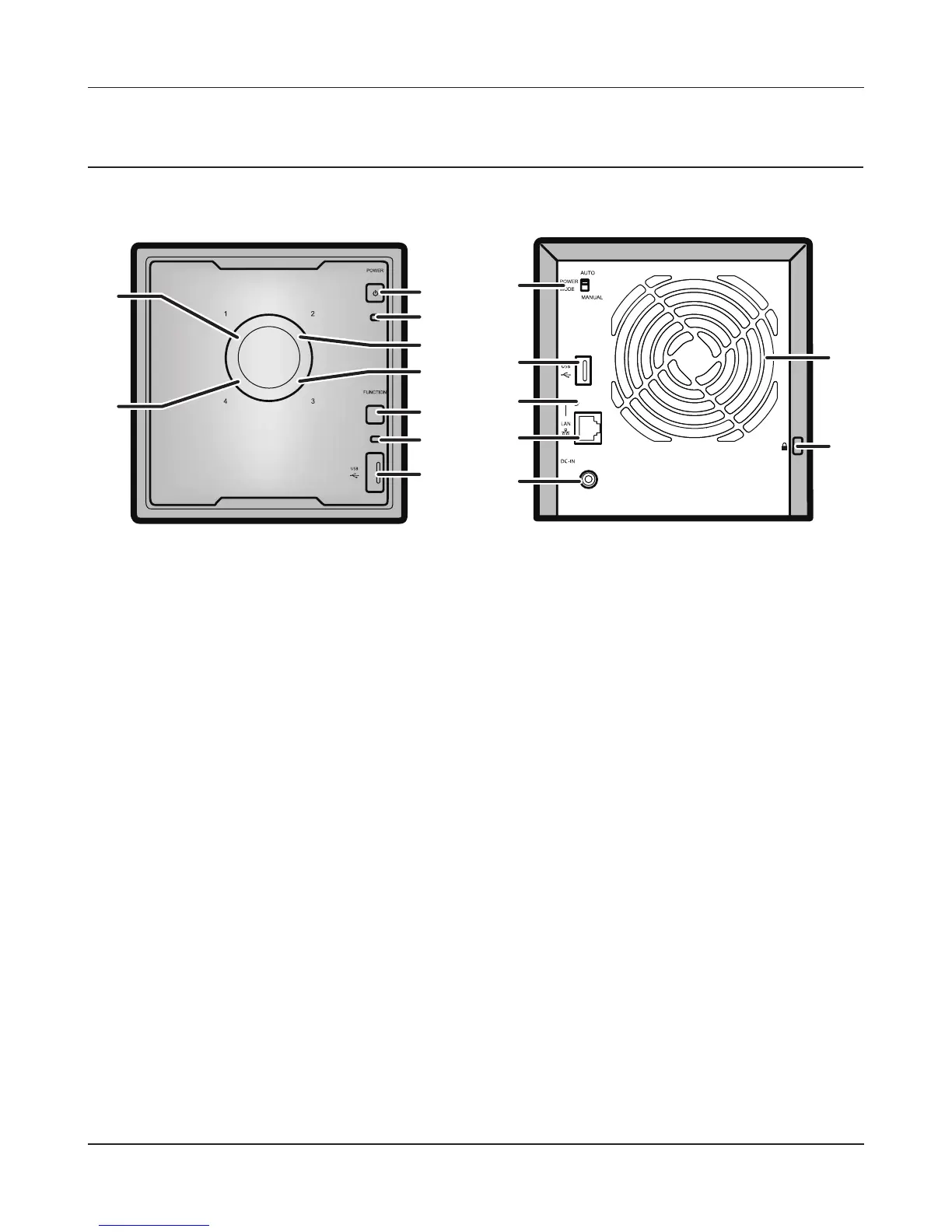

Diagrams and Layout (LS-QVL)
BackFront
1
1 Power Button
Power on: Press the power button to turn on.
Power o: Press and hold the power button for 3 seconds.
2 Power LED
Blue LED: Power on.
LED is o: Power o.
Blinks blue: During startup or shutdown.
Amber light is ashing: The amber light ashes if there is a message. Flashing pattern varies
depending on the message. For more information, refer to “Status LED” on page 206.
Red light is ashing: Red light ashes when an error occurs. Flashing pattern varies
depending on the message. For more information, refer to “Status LED” on page 204.
3 Function Button
Use this button to perform the following operations:
• DirectCopy
• Removal of USB devices
• Restoring factory defaults
4 Function LED
The Function LED glows blue when operating the function button.
2
7
9
8
3
5
4
6
10
11
12
13
14
15
5
