8630 - 99
OPERATING THE PROCESS CONTROLLER

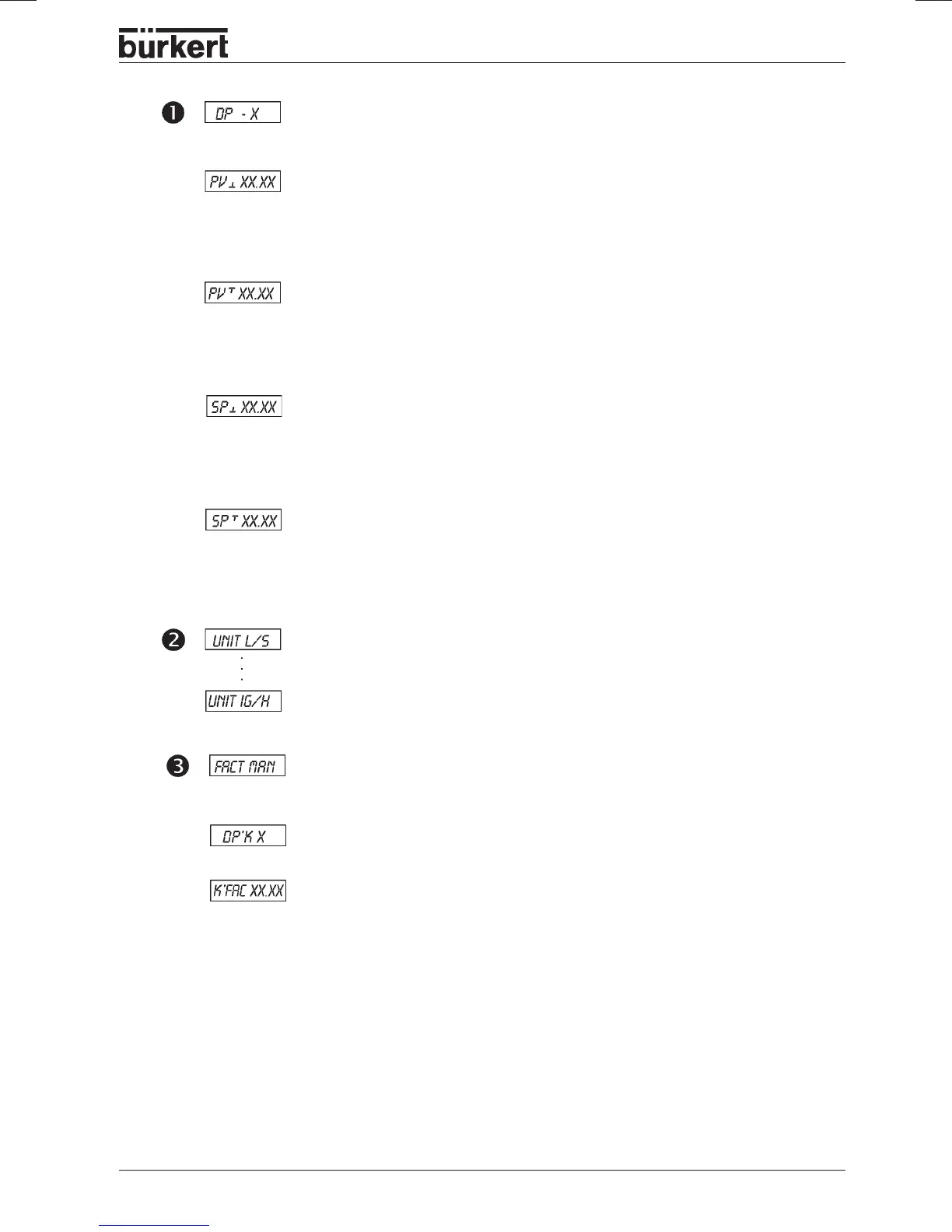

Position of the decimal point for process actual value and setpoint
(Setting range: 0 ... 3).
Manual entry of the K factor for the flow rate sensor
(e.g. from the data sheet for the flow rate sensor)
Position of the decimal point for the K factor (setting range: 0 ... 2)
K factor (setting range: 0 ... 9999)
Setting the desired unit of the flow rate
Upper scaling value for process setpoint;
the value is assigned to the maximum current or voltage value of the standard
signal. This setting is active only when
P.CO SETP / SETP EXT
has been
selected.
Lower scaling value for process setpoint;
the value is assigned to the minimum current or voltage value of the standard
signal. This setting is active only when
P.CO SETP / SETP EXT
has been
selected.
Upper scaling value for process actual value;
the value is entered in the unit that is subsequently selected for the flow rate. This
setting determines the reference span for the dead-band of the process controller
and the analog feedback of the process actual value (option).
Lower scaling value for process actual value;
the value is entered in the unit that subsequently selected for the flow rate. This
setting determines the reference span for the dead-band of the process controller
and the analog feedback of the process actual value (option).
