INSTALLATION
Opening the housing of the TOP Control Continuous
➔ Remove any lead seals or fastenings present between cover and housing.
➔ Turn the cover anticlockwise and lift it off.
Positioning the inductive proximity switches
➔ The inductive proximity switches are positioned vertically with one adjusting screw each:
* Setting the inductive proximity switches (Option)

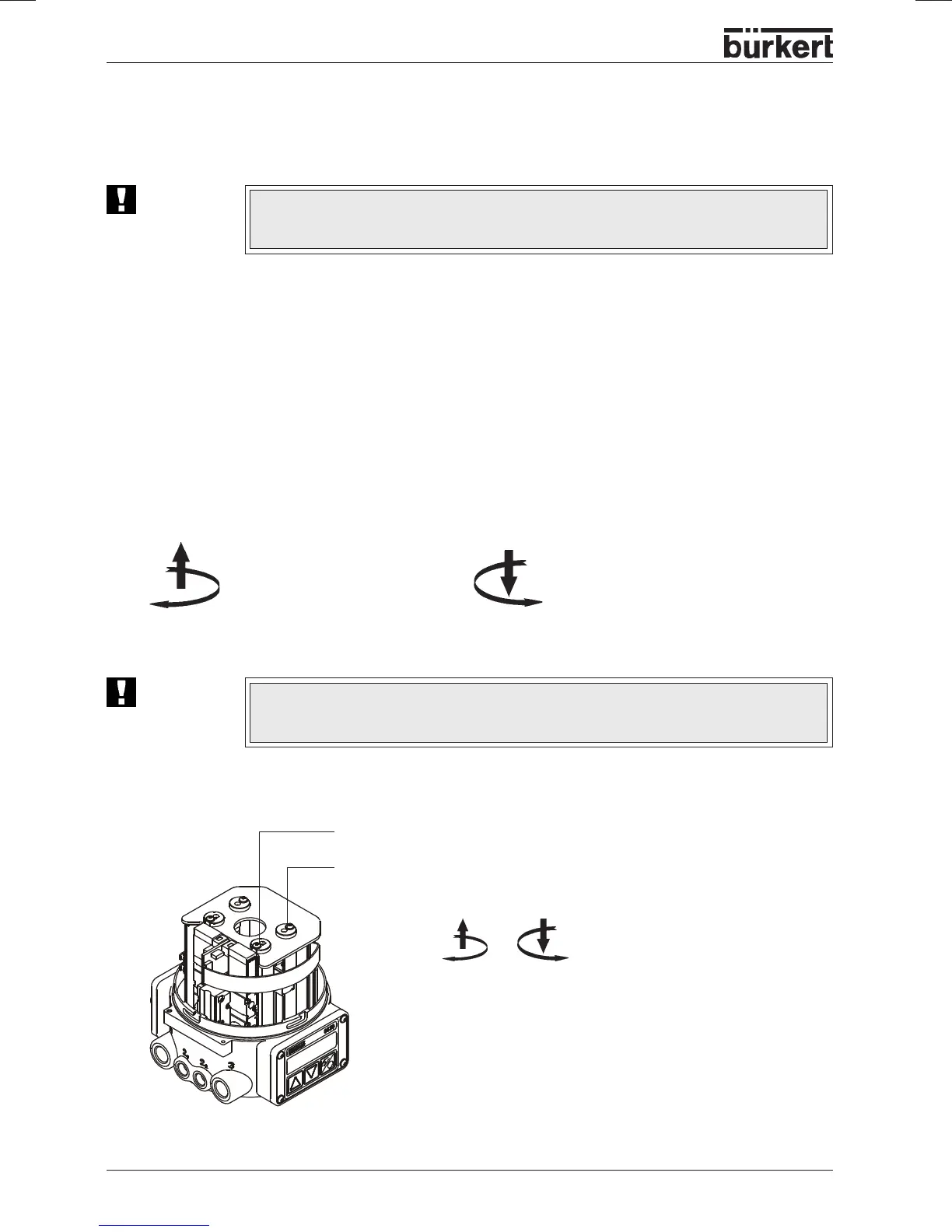

Screw to adjust the lower proximity switch
Screw to adjust the upper proximity switch
Turning clockwise
causes upward adjustment
ATTENTION!
Turning anticlockwise
causes downward adjustment
ATTENTION!
In order to set the inductive proximity switches, the housing of the TOP Control
Continuous must opened. Switch off the operating voltage before making this
intervention!
On adjusting the height of the inductive proximity switches, make sure that adjacent
flexes are not pulled (e.g. by getting hooked in the proximity switches). If this is not
adhered to, plugged connections may be damaged or loosened).
