146 - 8630
DEVICENET
Offline parametrization of the device
After the addition of a device in the DeviceNet configuration of
RSNetworx
, the device can be
parametrized offline.

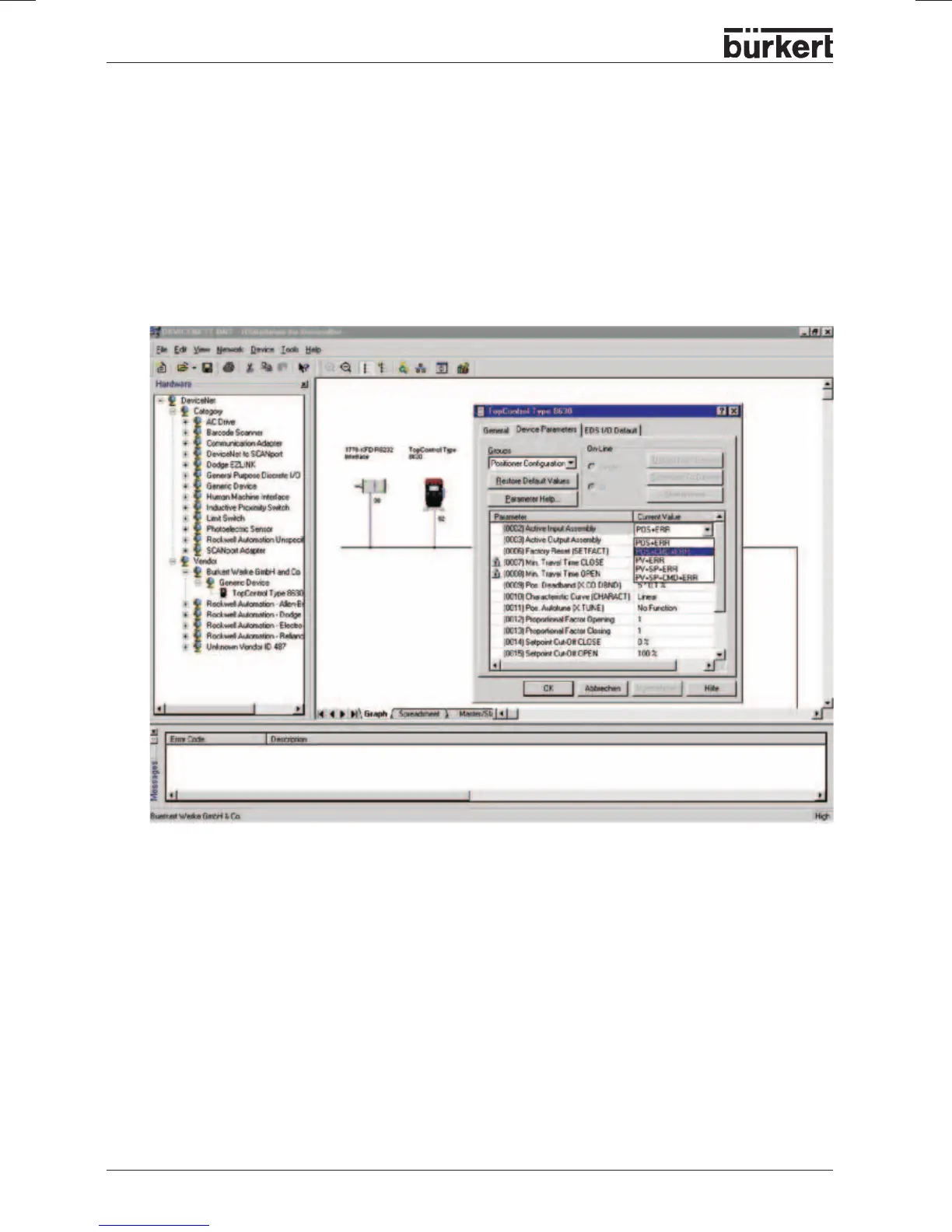

The figures shows by way of example, how an Input Assembly (Input Process data transferable via I/O
connection) at variance with the factory setting can be selected. Note however that the length of the
process data must be appropriately adapted with a following configuration of the DeviceNet Masters/
Scanners (see chapter
Configuration, Example 2
).
All parameter changes carried out offline must be rendered effective for the real device by a Download
Procedure.
