Burkert 8630 - Electrical Connection - Terminals with Cable Bushing

8630 - 45

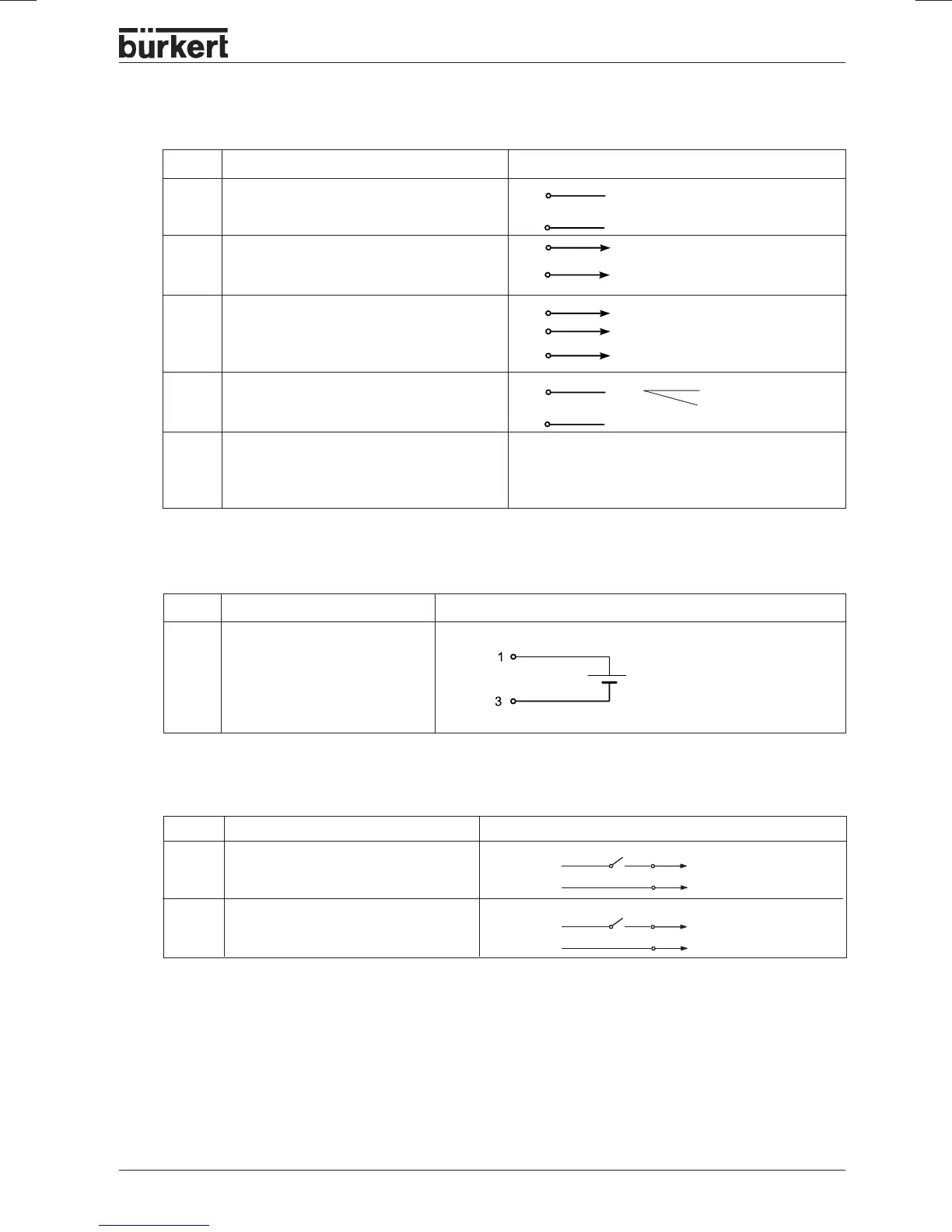

INSTALLATION
Operating voltage (circular plug M 12)
Pin Allocation External connection
1 + 24 V
2 not connected
3 GND
4 not connected
24 V DC ± 10 %
max. residual ripple 10 %
Pin Allocation Signal level
1 Proximity switch 1 + (NO)
2 Proximity switch 1 GND
3 Proximity switch 2 + (NO)
4 Proximity switch 2 GND
open / 24 V+24 V DC
GND GND
1
2
S1
open / 24 V
+24 V DC
GND GND
3
4
S2
Inductive proximity switches (circular socket M 8)
Output signals for SPS (circular plug M16)
Pin Allocation External connection/signal level
A Setpoint GND
B Setpoint + (0/4..20 mA or 0..5/10 V)
C Analog position feedback +
D Analog position feedback GND
E Binary output 1
F Binary output 2
G Binary output GND
H Binary input +
J Binary input GND
K not connected
L not connected
M not connected
A
B
+ (0/4 ... 20 mA or 0..5/10 V)
completely isolated electrically
GND
24 V / 0 V
24 V / 0 V
GND
E
F
G
H
J
GND
+ 0 ... 5 V (log. 0)
10 ... 30 V (log. 1)
GND
C
D
+ (0/4 ... 20 mA or 0 ... 5/10 V)
completely isolated electrically
