16 - 8630
SYSTEM DESCRIPTION
Construction of
TOP Control
Continuous

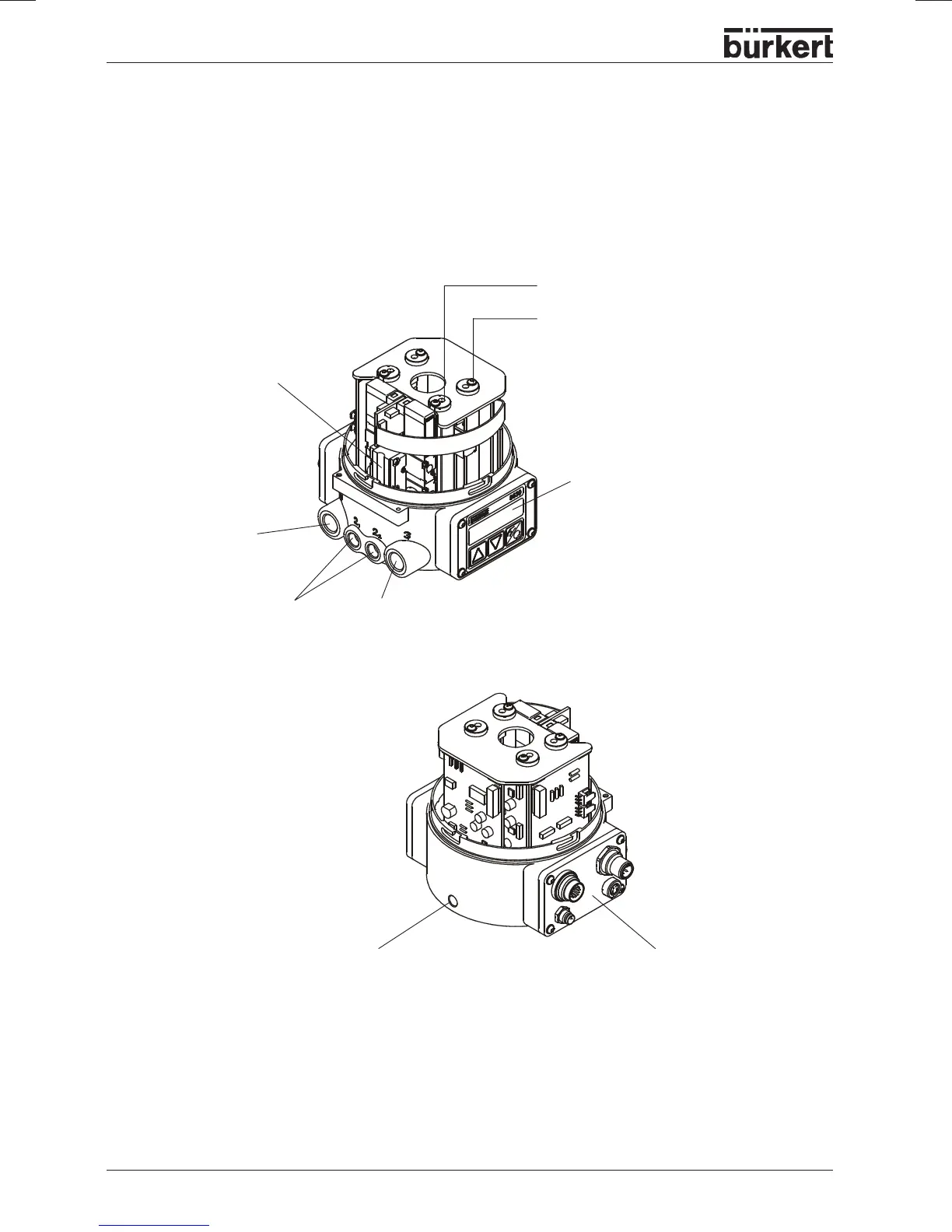

Illustrations (cover removed)
Screw for adjusting the lower proximity
switch
Screw for adjusting the upper proximity
switch
Operating module with display and
keys
Exhaust air ports
(marked 3)
Control ports
(connected in the
factory)
Pressure supply port
(marked: 1)
Positioning system
with 2, 3 or 4 soleno-
id valves
Electrical connection module,
here with multipole connectors
Fixing screw for fixing the
TOP Control Continuous
on the drive
Max. torque 1.2 Nm
