DEVICENET
Setting up the process mapp (mapping)
Using the function
AUTOMAP
it is possible to assign the input data of the devices listed in the Scanlist
to the process mapping of the DeviceNet Master / Scanner.

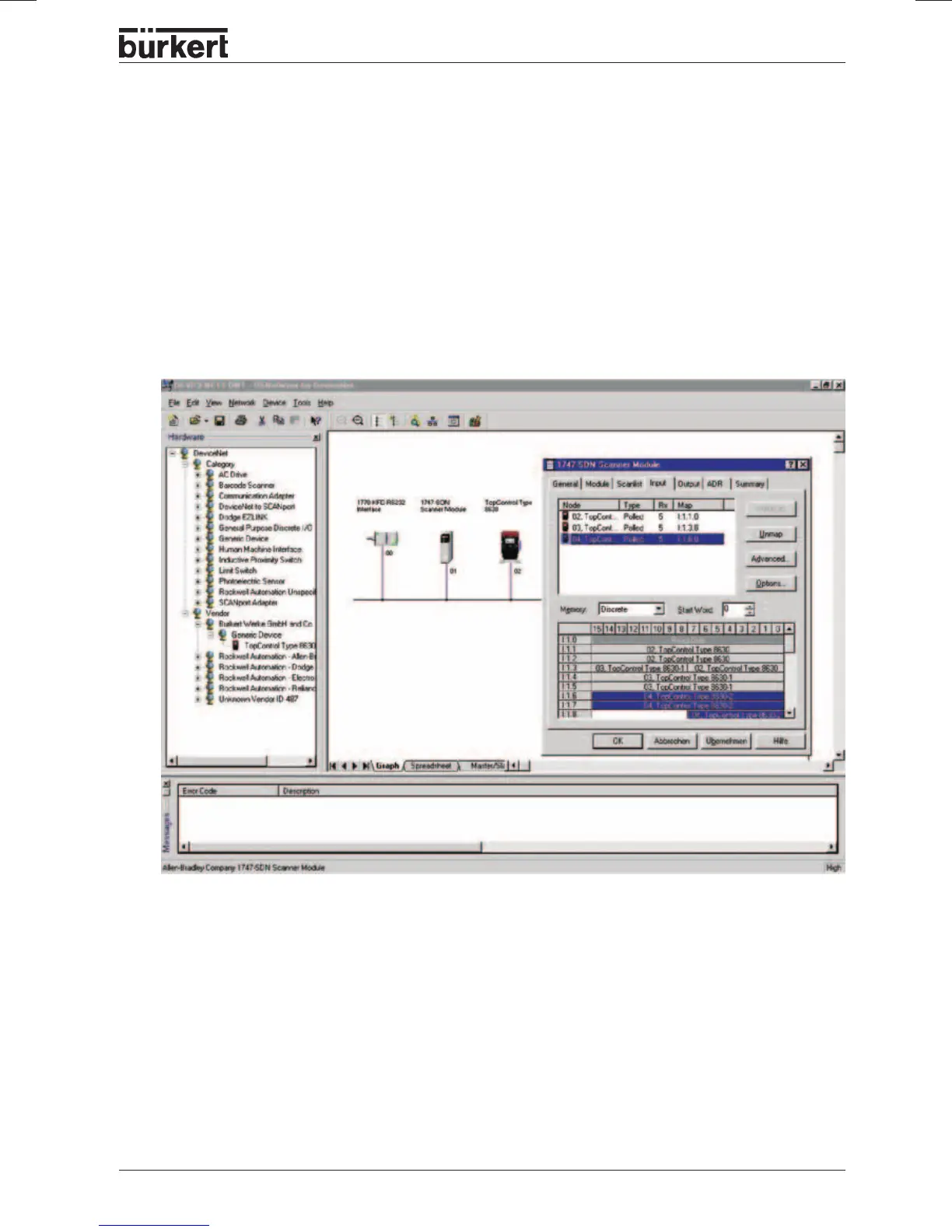

In our example this resulted in the assignment
shown in the figure
.
For example, the Input Process values of the TOP
Control Continuous with the address 4 are assigned
to the internal addresses of the scanner in the following manner:
Actual position: I:1.6
Setpoint position: I:1.7
Error: I:1.8
Therefore if the actual position of the TOP
Control Continuous with the address 4 is to be read from a
control program, this takes place via an access to 1:1.6.
