Burkert 8630 - Interfaces; Electrical Connection

136 - 8630
DEVICENET

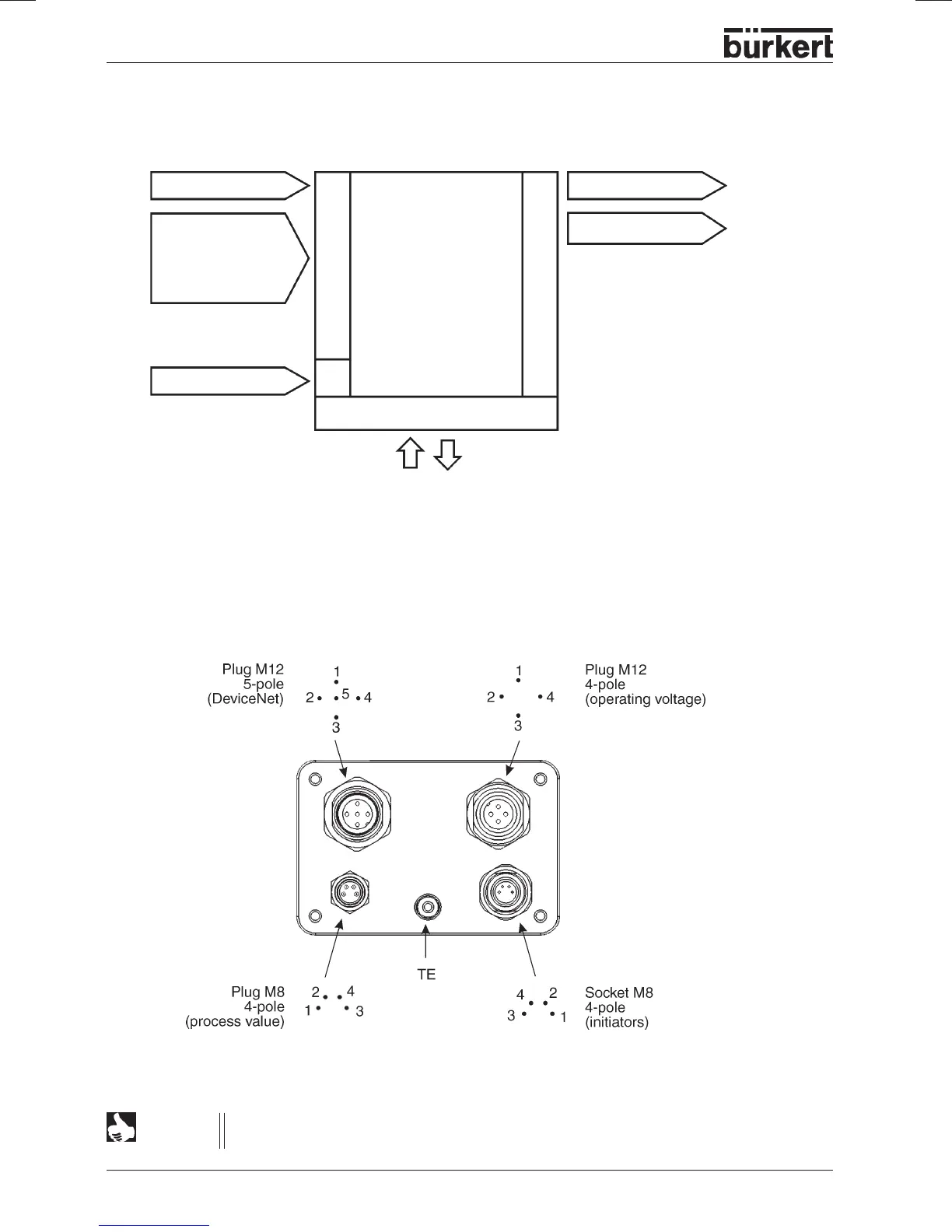

Interfaces
Electrical connection
For operation of the device, it is absolutely necessary to connect the 5-pole (bus) and the 4-pole circular
plugs M12 (voltage supply).
NOTE Voltage supply to the device is not from the DeviceNet voltage V+ and V-m but from the
electrically isolated operating voltage.
Bus
Inputs for process
value
4 .. 20 mA
Frequency
Pt 100
24 V DC
Bus
Initiators 1 + 2
TOP Control
Continuous
DeviceNet
Operating unit
Supply unit
Inputs
Outputs
