PROFIBUS DP

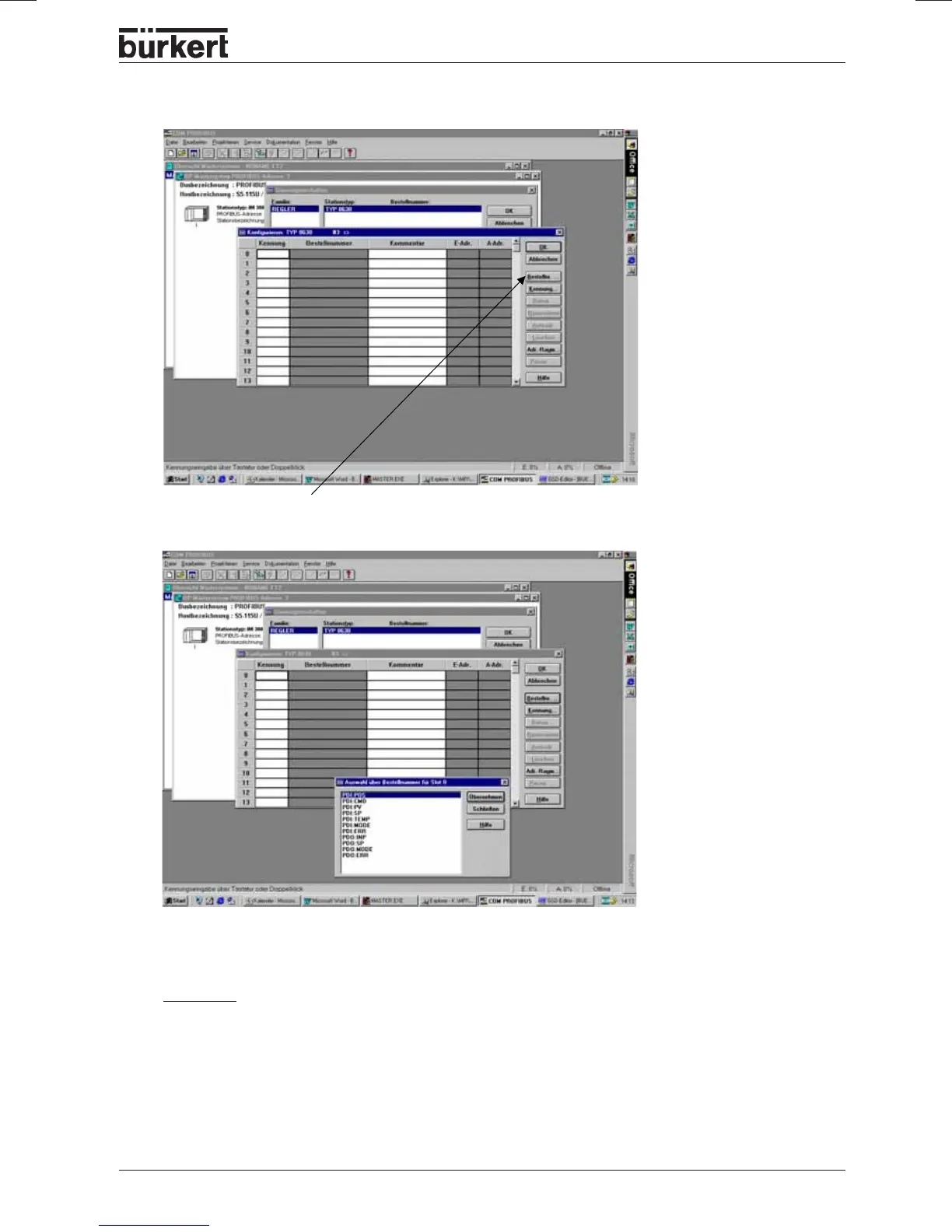

The following screen appears:
• Select Order no. ...
The following screen appears:
Here the process values are entered corresponding to the selection in the configuration menu of the TOP
Control Continuous.
Important: 1. Observe sequence of process values
2. Input before output
• Select process value PDI:POS
• Select process value PDI:MODE
• Select process value PDO:INP
• Select process value PDO:MODE
- Enter inputs and outputs in the process diagram.
