Chapter 2: System Hardware
Force 425 mounting bracket with Range Extender
The Force 425 module is designed to be pole-mounted using the mounting bracket provided in the box
with the radio.

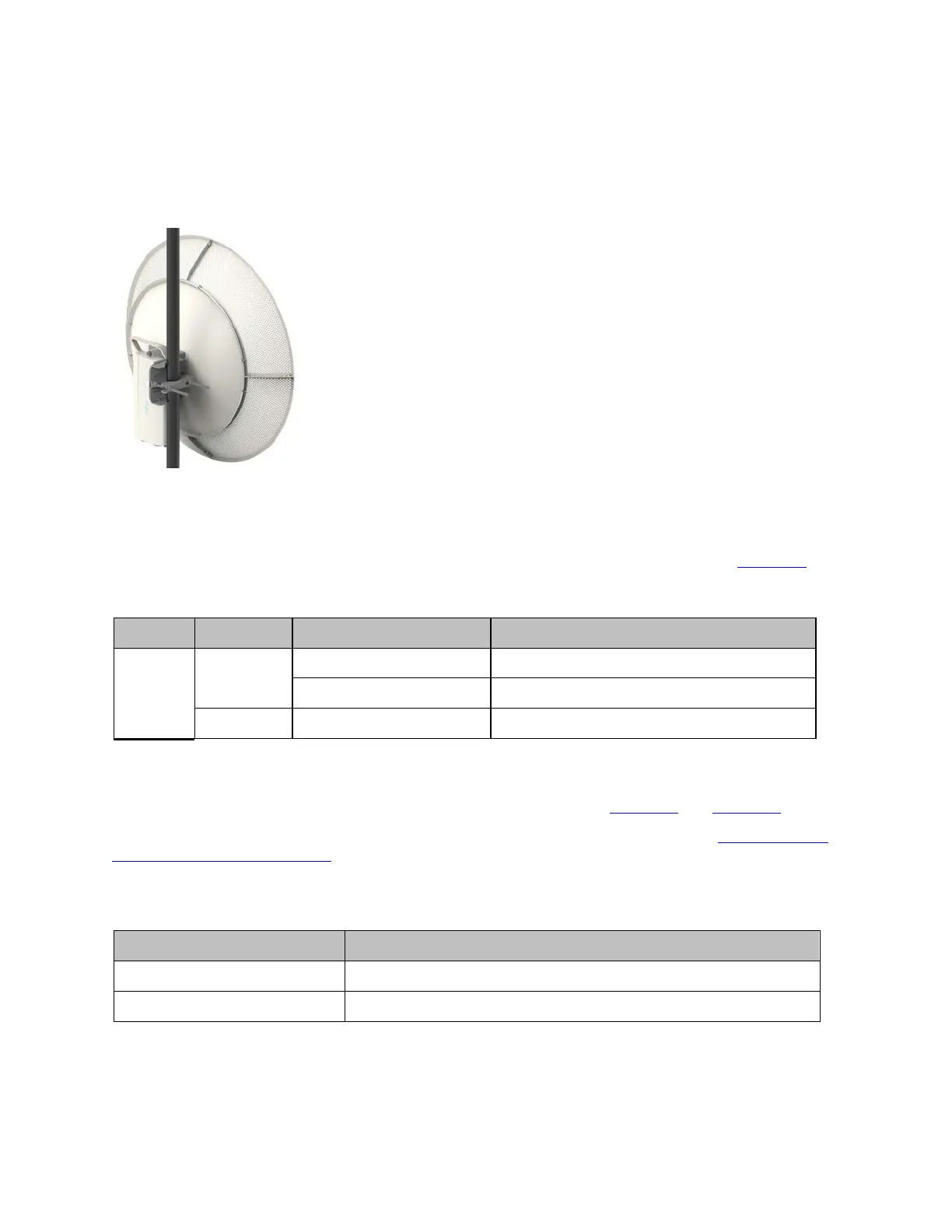

An overview of Force 425 mounting bracket is shown in Figure 58
Figure 58:
Force 425 module mounting bracket with Range Extender
Force 425 interfaces
The Ethernet port is located on the rear of the integrated unit. This interface is described in Table 104.
Table 104 Force 425 Series – rear interfaces
Power over Ethernet (PoE).
Optional 10 Gigabit SFP cage for SFP module
Force 425 specifications
The Force 425 integrated module conforms to the specifications listed in Table 105 and Table 106.
The integrated module meets the low-level static discharge specifications identified in Electromagnetic
compatibility (EMC) compliance and provides internal surge suppression but does not provide lightning
suppression.
Table 105 Force 425 physical specifications
Dimensions (Diameter x Depth)
470 mm diameter x 285 mm depth (18.5 in diameter x
11.2
in depth)
