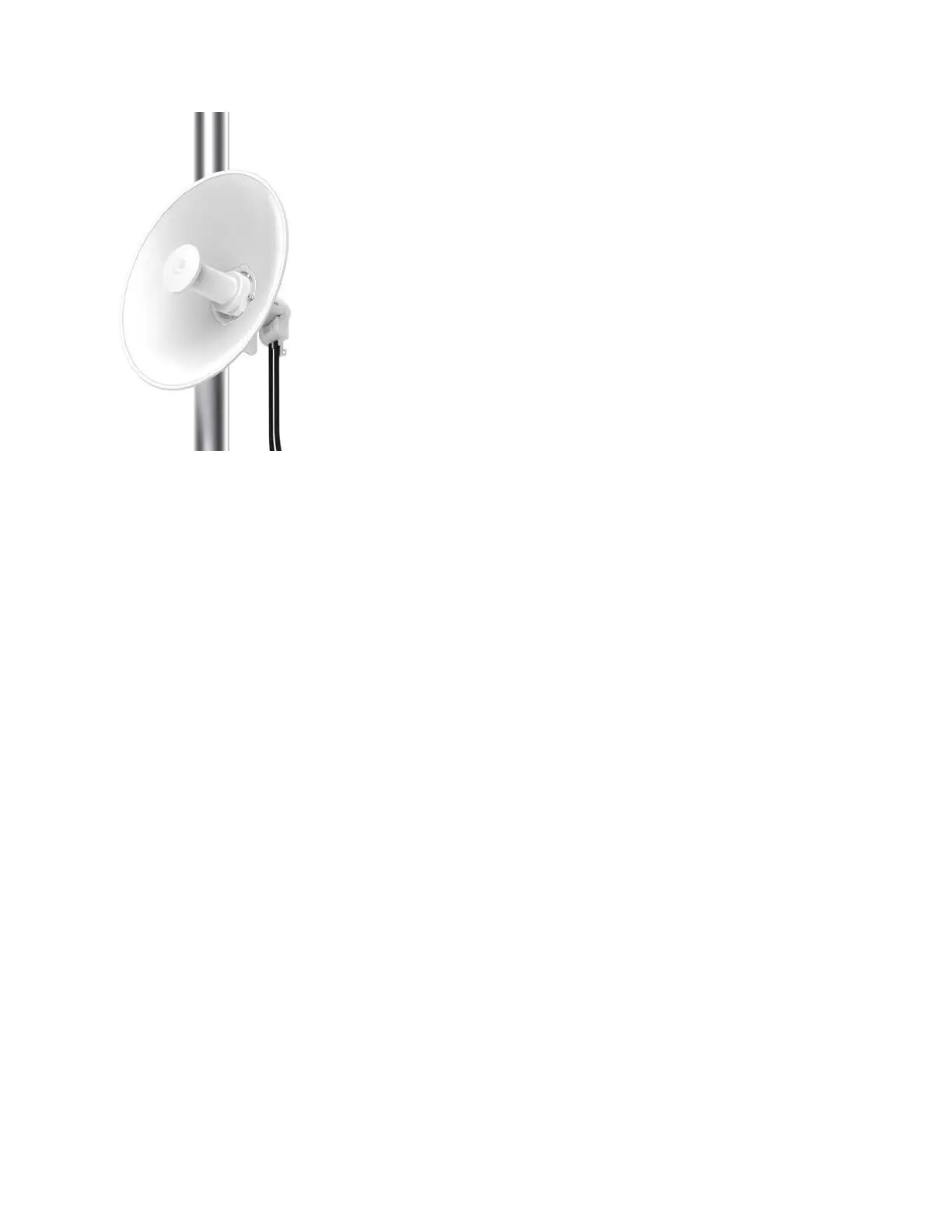

Figure 23:
Force 4625 integrated
Typical installation equipment
The ePMP is a solution consisting of integrated outdoor units, indoor power supply units / LAN injectors,
cabling, and surge suppression equipment.
The main hardware components of an ePMP installation are as follows:
⚫
ePMP 3000 Access Point:
A connectorized outdoor transceiver unit containing all the radio,
networking, and surge suppression electronics.
⚫
ePMP 3000L Access Point:
A connectorized *IP67 outdoor transceiver unit containing all the
radio, networking, and surge suppression electronics.
⚫
ePMP 3000/3000L Access Point Power Supply:
An indoor power supply module providing
Power-over-Ethernet (PoE) supply and 1000
/
100 Base-TX to the AP.
⚫
ePMP 3000/3000L Access Point Radio Cabling and Lightning Protection:
Shielded Cat5e cables,
grounding cables, surge suppressors, and connectors.
⚫
ePMP Smart Antenna and cabling (optional):
For Smart Beamforming, dynamically creates a
narrow, targeted beam to each subscriber
⚫
Force 300-25/Force 300-19/Force 300-19R/Force 300-16/Force 300-13/Force 300 CSM Radio:
Integrated outdoor transceiver units containing all the radio, networking, and surge suppression
electronics.
⚫
Force 300-25/Force 300-19/Force 300-19R/Force 300-16/Force 300-13/Force 300 CSM Power
Supply:
An indoor power supply module providing Power-over-Ethernet (PoE) supply and
100/1000 BASE-T to the Force 300-25 device.
⚫
Force 300-25/Force 300-19/Force 300-19R/Force 300-16/Force 300-13/Force 300 CSM Radio
Cabling and Lightning Protection:
Shielded Cat5e cables, grounding cables, surge suppressors,
and connectors.
