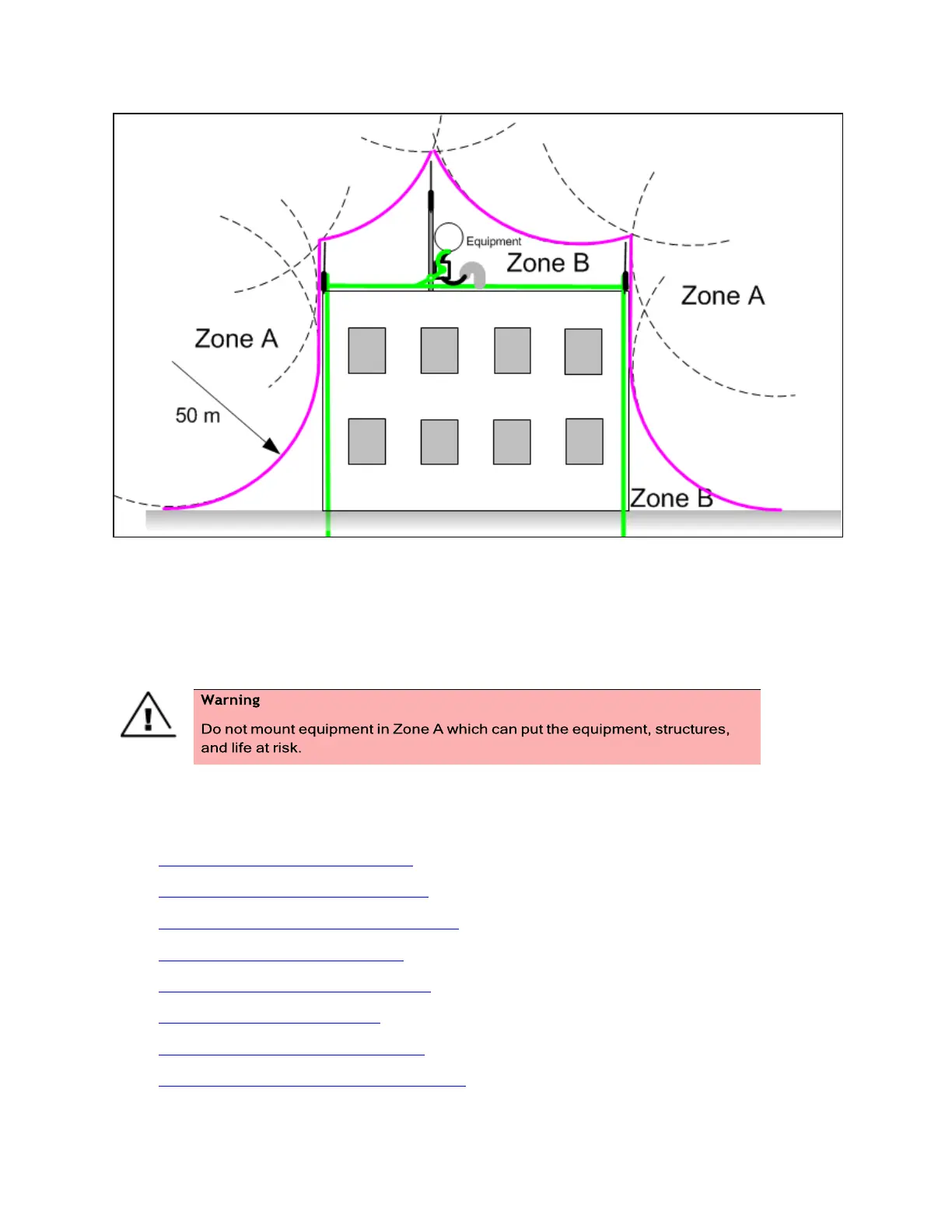

Figure 27:
Rolling sphere method to determine the lightning protection zones
Assess locations on masts, towers, and buildings to determine if the location is in Zone A or Zone B:
⚫
Zone A
: In this zone a direct lightning strike is possible. Do not mount equipment in this zone.
⚫
Zone B
: In this zone, direct EMD (lightning) effects are still possible, but mounting in this zone
significantly reduces the possibility of a direct strike. Mount equipment in this zone.
ePMP 3000 Access Point
For details of the ePMP 3000 Access Point hardware, see:
⚫
ePMP 3000 Access Point description
⚫
ePMP 3000 Access Point part numbers
⚫
ePMP 3000 Access Point mounting bracket
⚫
ePMP 3000 Access Point interfaces
⚫
ePMP 3000 Access Point specifications
⚫
ePMP 3000 Access Point heater
⚫
ePMP 3000 Access Point wind loading
⚫
ePMP 3000 Access Point software packages
