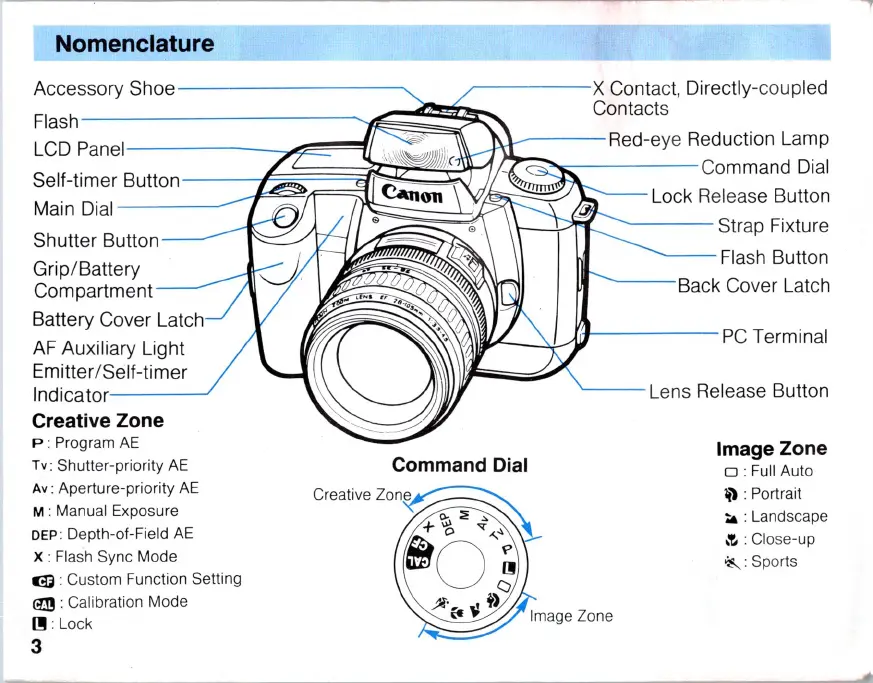

Nomenclature
~---- x Contact, Directly-coupled
Accessory Shoe
------ -- -_______ Contacts
Flash ~ ___ Red -eye Reduction Lamp
LCD Panel ------ A~~tJ Tr::;: ""-::- ----- Command Dial
Self-timer Button --- -t~ ~~ ~~~=~c: f J!:S>i:;___..: =_ Lock Release Button
Main Dial ________ Strap Fixture
Shutter Button ""'__ __ Flash Button
Grip/Battery ------ Back Cover Latch
Compartment
Battery Cover Latch
AF Auxiliary Light
Emitter/Self-timer
Indicator· -- - -
Creative Zone
P : Program AE
Tv : Shutter-priority AE
Av: Aperture-priority AE
M : Manual Exposure
DEP : Depth-ol-Field AE
x : Flash Sync Mode
C3i : Custom Function Setting
l!l! : Calibration Mode
~ : Lock
3
Command Dial
n - ----- PC Terminal
'---- Lens Release Button
Image Zone
Image Zone
0 : Full Auto
it' : Portrait
~ : Landscape
,'I:. : Close-up
~ : Sports
_______________________________________________ A
