19
ENG
UltraCella +0300083EN - rel. 1.5 - 07.02.2015

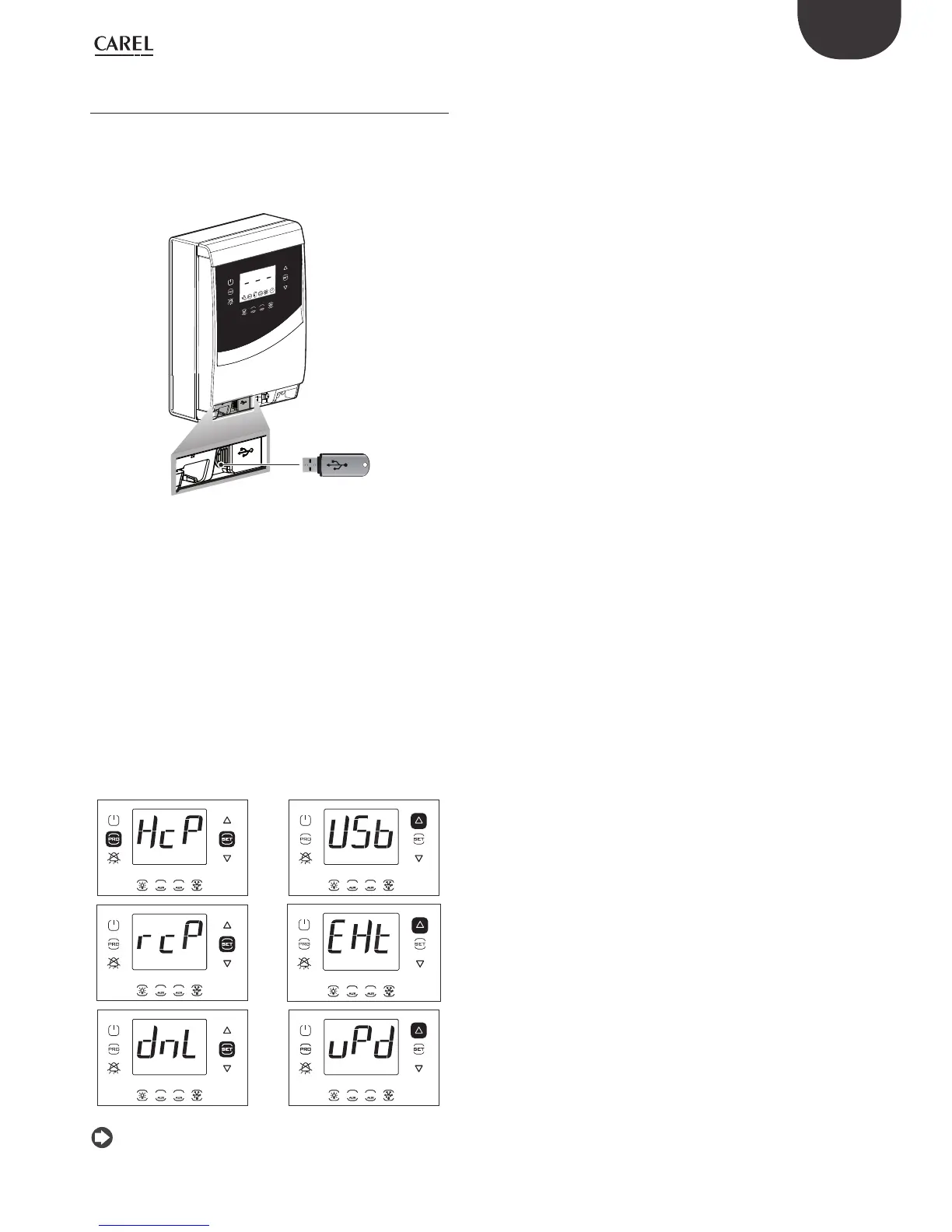

2.12 Upload/download parameters (USB
memory key)
The USB memory key must be placed in the connector accessible after
removing the lower frame. Using the USB memory key you can:
1. download the parameters set (r01...r10): control saves inside the key
the 10 parameters set;
2. upload the parameters set (r01...r10): control loads from the key the
10 parameters set);
1
2
1
2
USB key
Fig. 2.u
Procedure:
1. remove the lower frame and insert the USB memory key. The red and
green LED beside the key will light up once in sequence to indicate
the recognition by the unity of the USB memory key;
2. bring the control to OFF to upload (to copy the confi gurations from the
USB key to the controller); to download (to copy the confi gurations
from the controller to the USB key), the controller can be in ON status;
3. press at the same time Prg and Set for 2 s and access the multifunction
menu: the message “HcP will appear;
4. press “UP” until reaching the entry “USb”;
5. press “Set”;
6. choose whether you want to DOWNLOAD the parameters (= dnL), to
UPLOAD them (=uPd) or to exit the page (EXt);
7. press “Set”; the green LED will light up and will remain lit to indicate that
the upload / download of parameters occurred; if, for some reason, the
procedure should not be successful, the red LED will turn on;
8. extract the key. The LED turns off . The fi le is .txt”type, and it can be
displayed on the computer.
1 21 2
1 21 2
1 2
1 2
1 21 2
1 21 2
Note: the fi gure refers to the screens on models with single row
display, P/Ns WB000S*. In models with two rows, P/Ns WB000D*,
as well as the message indicated, during navigation the display shows the
scrolling message "recipes in USB device on the second row.
