Carel WB000DG0F0 User Manual

62
ENG
UltraCella +0300083EN - rel. 1.5 - 07.02.2015
Key
Sv Virtual probe
St Set point
t Time
AH High temperature alarm threshold
ALARM HACCP alarm, HA type
Ad Delay time for low temperature and high temperature alarms
Htd HACCP alarm delay (0=monitoring disabled)
HF alarms

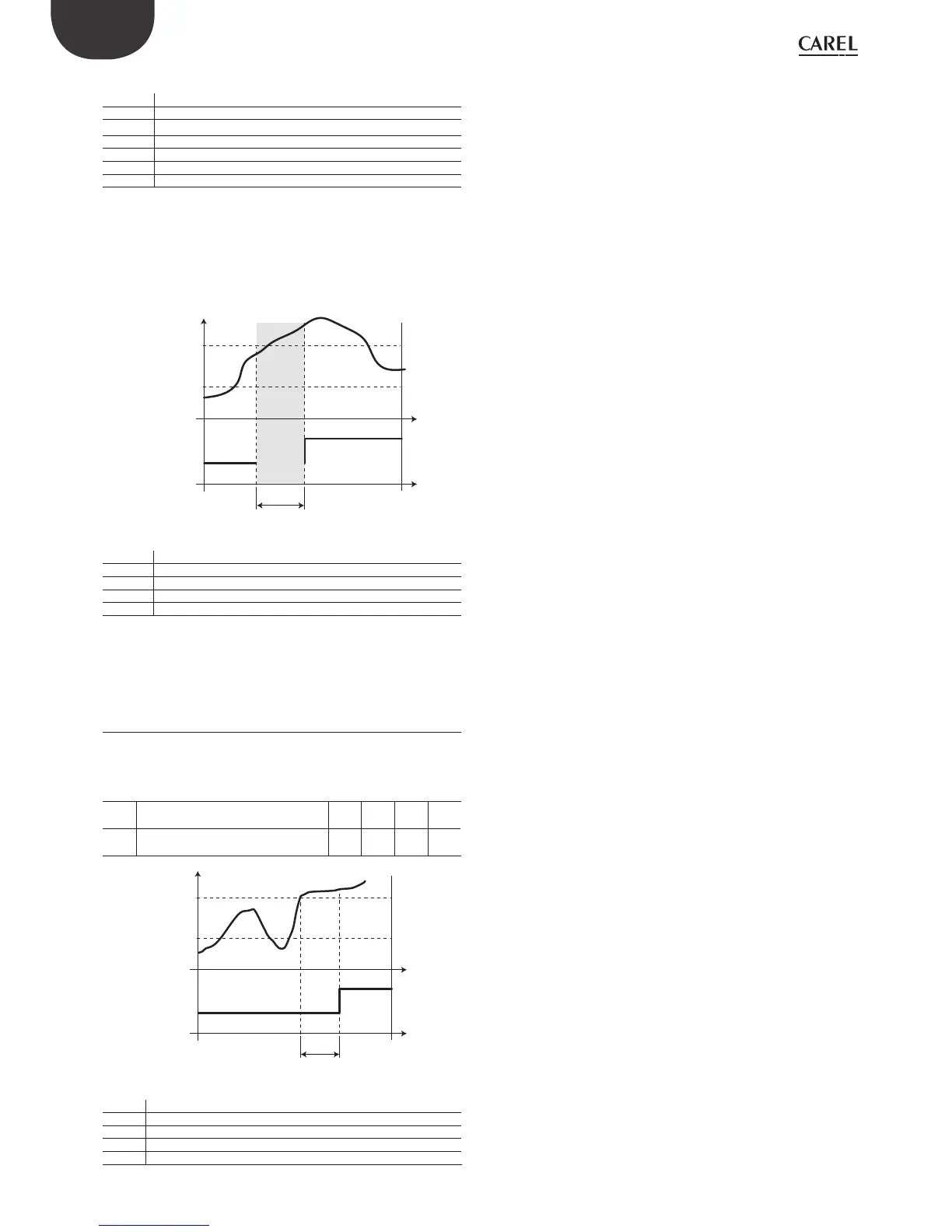

The HACCP alarm type HF is generated as a result of a power failure for a
long time (> 1 minute), when after mains voltage restore the temperature
read by the adjustment probe exceeds the high temperature threshold
AH .
t
t
ALARM
Sv
OFF
ON
St
AH
black out
Fig. 8.c
Key
Sv Virtual probe
AH High temperature alarm threshold
ALARM HACCP alarm, HF type
St Set point
t Time
8.9 High condenser temperature alarm
You can monitor the temperature of the condenser to signal the high
temperature, probably due to situations of clogging. The signalling
follows the fi gure below.
Par Description Def Min Max UM
Ac High condenser temperature alarm
threshold
70 0 200 °C/°F
Acd High condenser temperature alarm
delay
0 0 250 min
t
t
CHT
Sc
OFF
ON
Ac
Ac+10
Acd
Fig. 8.d
Key
t Time
Acd High condenser temperature alarm delay
Sc Condenser probe
Ac High condenser temperature alarm threshold
CHT High condenser temperature alarm
