UltraCella +0300083EN - rel. 1.5 - 07.02.2015
1 21 2
1 21 2
10. Press UP to move to
parameters /A2.../ A5; make any
required settings.
11. Press Prg to return to the
parameter categories.
1 21 2
12. Press UP to move to category CtL and follow the previous steps to set St
and the following parameters.

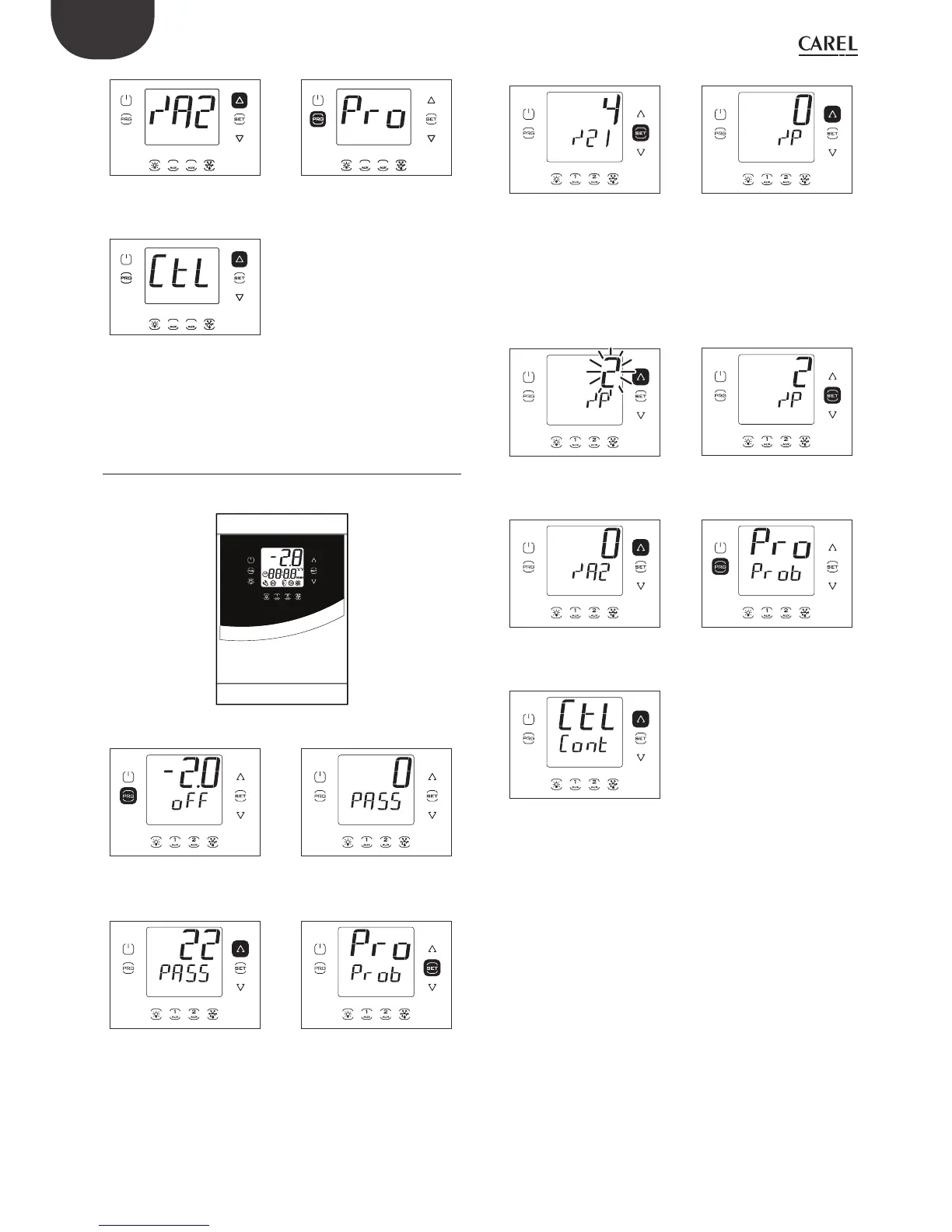

4.4 Double digit display models cod.
WB000D* commissioning
UltraCella with double row display
Fig. 4.b
1. First switch the controller OFF (press ON/OFF).
2. Press Prg for 2 sec: the second row of the display will show “PASS”
(password required).
3. Press UP/DOWN to enter the
password: 22.
4. Press Set; the second row of
the display will scroll the name of
the fi rst category of parameters:
Probes.
5. Press Set: the second row of the
display will scroll the code and
description of the fi rst parameter
in the category: /21 – Probe1
meas. stab.; the fi rst row of the
display will show the current
value of the parameter
6. Press UP repeatedly until
reaching parameter /P. The second
row of the display will scroll the
code and description of the
parameter: /P – type B1 to B3; the
fi rst row of the display will show
the current value of the parameter
7. Press Set and UP/DOWN to
set the desired value of the
parameter.
8. Press Set to confi rm. The new
value entered is now saved on the
controller.
9. Press UP to move to parameters
/A2…/A5; make any required
settings .
10. Press Prg to return to the
categories of parameters.
11. Press UP to move to category CtL (the second row scrolls the name of
the second category of parameters: Control) and follow the previous steps
to set St and the subsequent parameters, as shown in the previous table
and in the parameter table.
